2.3.6 EX7501-B0

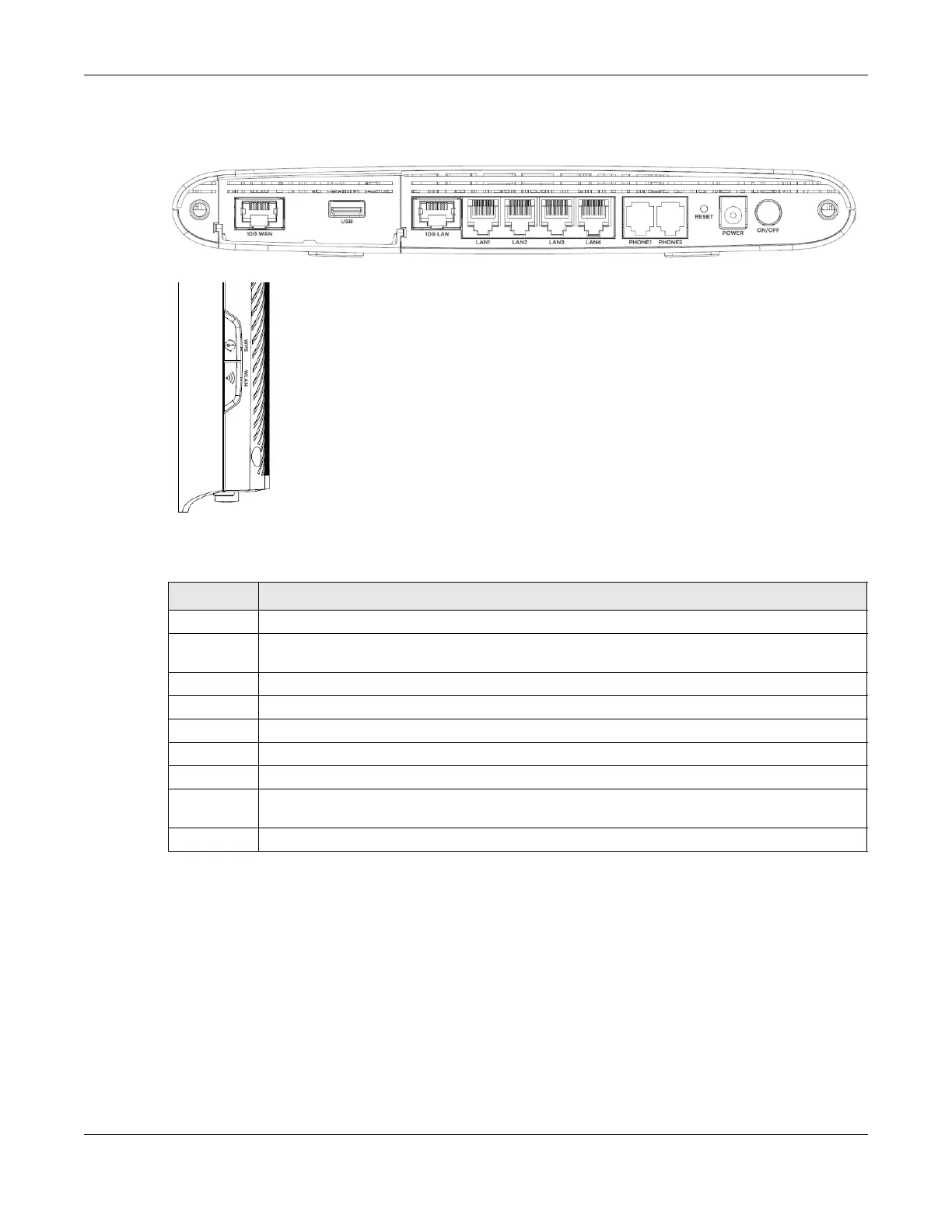

Figure 37 Bottom Panel
Figure 38 WPS/WLAN Buttons
The following table describes the items on the ports panels of EX7501-B0.
Table 20 Panel Ports and Buttons
LABEL DESCRIPTION
10G WAN Connect an Ethernet cable to the 10G WAN port for an (up to) 10 Gbps Ethernet connection.
10G LAN Connect computers or other Ethernet devices to the 10G LAN port for Internet access with speed
up to 10 Gbps.
LAN1-4 Connect computers or other Ethernet devices to Ethernet ports for Internet access.
USB The USB port is used for cellular WAN backup, file-sharing, and media server.
PHONE1/2
Connect analog phones to the PHONE ports with RJ 11 cables for VoIP services.
RESET Press the button for more than 5 seconds to return the Zyxel Device to the factory defaults.
POWER Connect the power adapter and press the ON/OFF button to start the device.
WPS Press the WPS button once within 3 seconds to quickly setup a secure WiFi connection between the
device and a WPS-compatible client.
WLAN Press the WLAN button for more than 2 seconds to enable the WiFi function.
