AX/DX/EX/PX Series User’s Guide

465

CHAPTER 34

Cellular Statistics

34.1 Cellular Statistics Overview

Use the Cellular Statistics screens to look at cellular Internet connection status. By default, a cellular

WAN connection is used as a backup for the wired DSL or Ethernet WAN connections.

34.2 Cellular Statistics Settings

To open this screen, click System Monitor > Cellular Statistics. Cellular information is available on this

screen only when you insert a compatible cellular dongle in the USB port on the Zyxel Device.

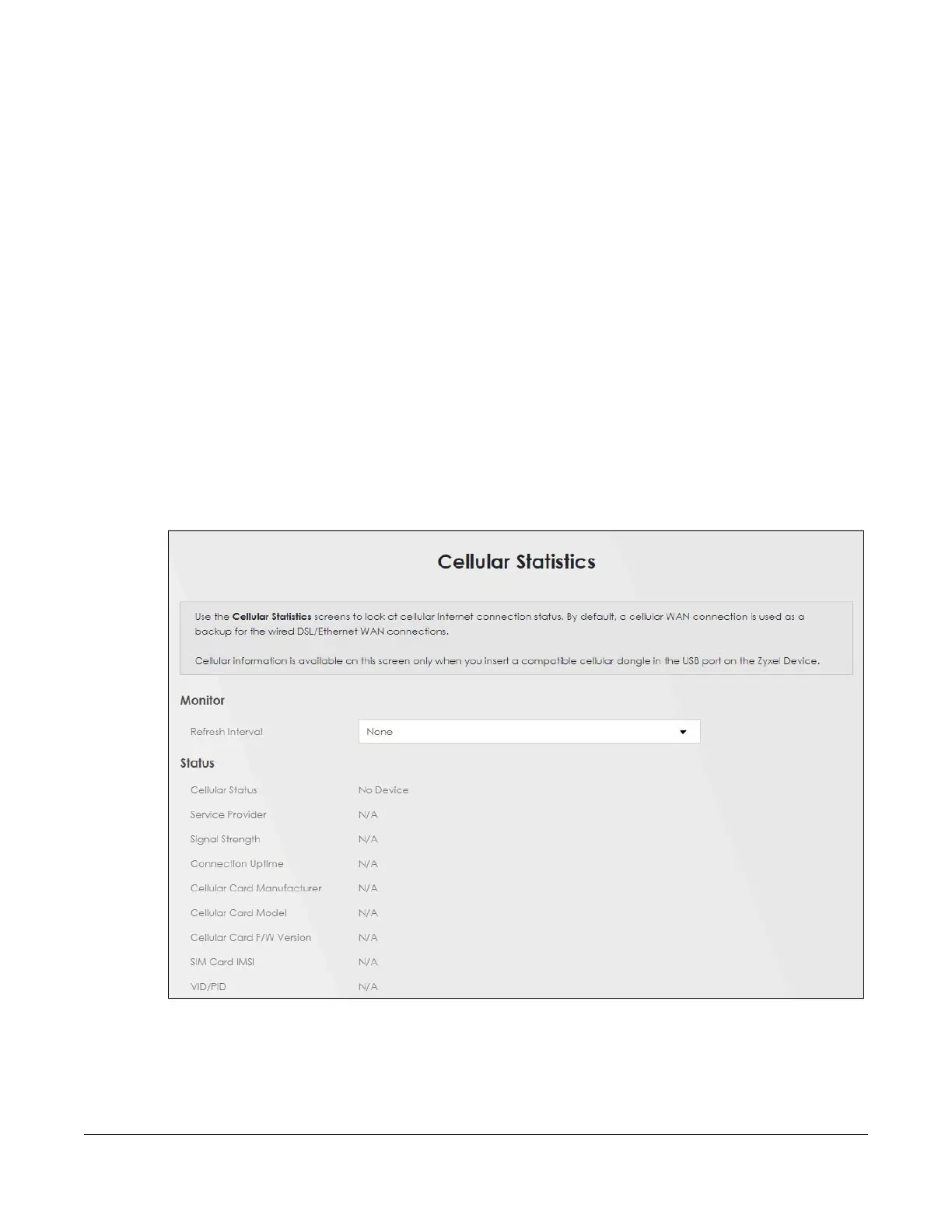

Figure 258 System Monitor > Cellular Statistics

default chapter3
