Chapter 12 Quality of Service (QoS)
AX/DX/EX/PX Series User’s Guide
326

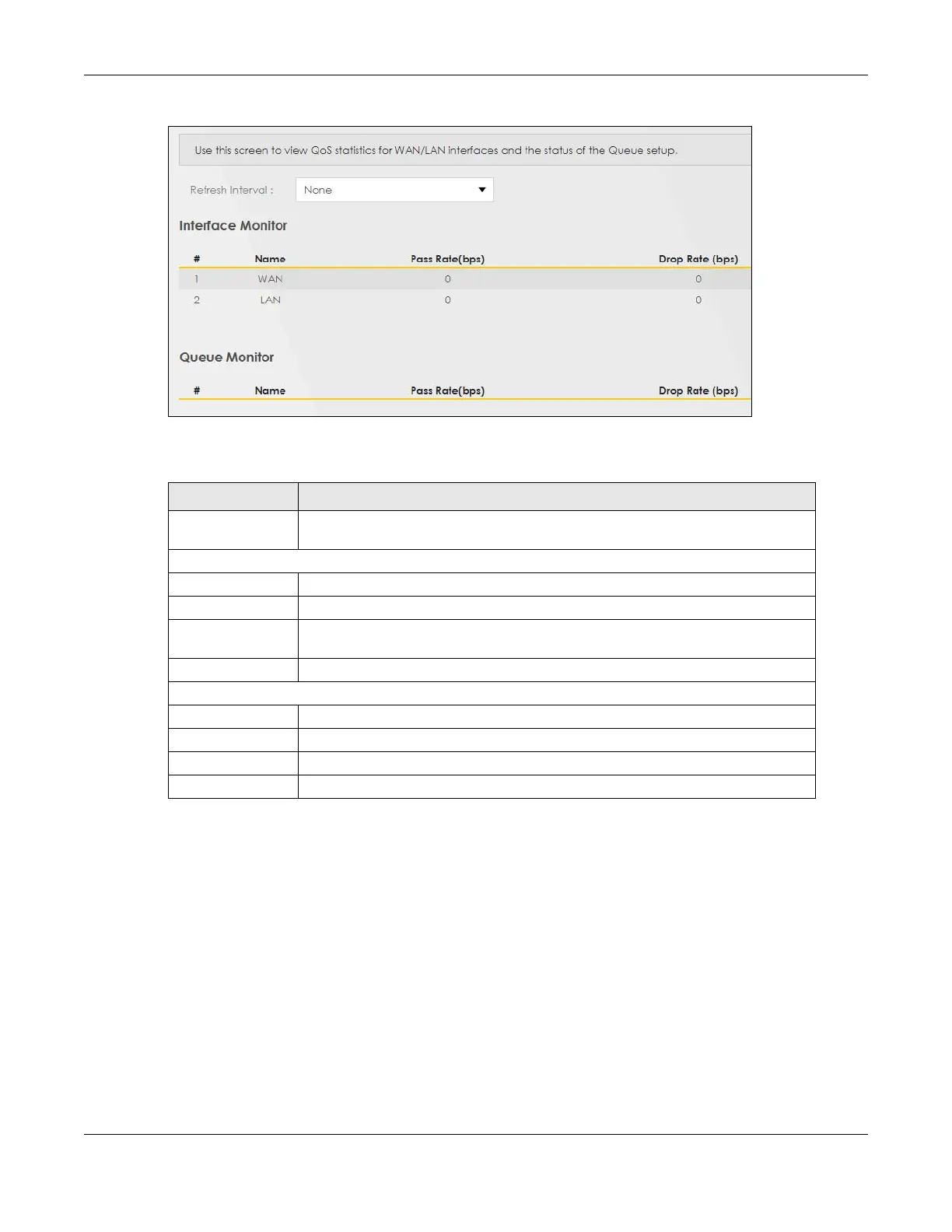

Figure 167 Network Setting > QoS > Monitor
The following table describes the labels in this screen.
12.9 Technical Reference
The following section contains additional technical information about the Zyxel Device features
described in this chapter.
IEEE 802.1Q Tag
The IEEE 802.1Q standard defines an explicit VLAN tag in the MAC header to identify the VLAN
membership of a frame across bridges. A VLAN tag includes the 12-bit VLAN ID and 3-bit user priority.
The VLAN ID associates a frame with a specific VLAN and provides the information that devices need to
process the frame across the network.
Table 96 Network Setting > QoS > Monitor
LABEL DESCRIPTION
Refresh Interval Select how often you want theZyxel Device to update this screen. Select None to
stop refreshing
Interface Monitor
# This is the index number of the entry.
Name This shows the name of the interface on the Zyxel Device.
Pass Rate (bps) This shows how many packets forwarded to this interface are transmitted
successfully.
Drop Rate (bps) This shows how many packets forwarded to this interface are dropped.
Queue Monitor
# This is the index number of the entry.
Name This shows the name of the queue.
Pass Rate (bps) This shows how many packets assigned to this queue are transmitted successfully.
Drop Rate (bps) This shows how many packets assigned to this queue are dropped.
