Chapter 2 Hardware
AX/DX/EX/PX Series User’s Guide
57
The following table describes the items on the ports panels of EX3500-T0 and EX3501-T0.
2.3.5 EX5600-T1, EX5601-T0, and EX5601-T1

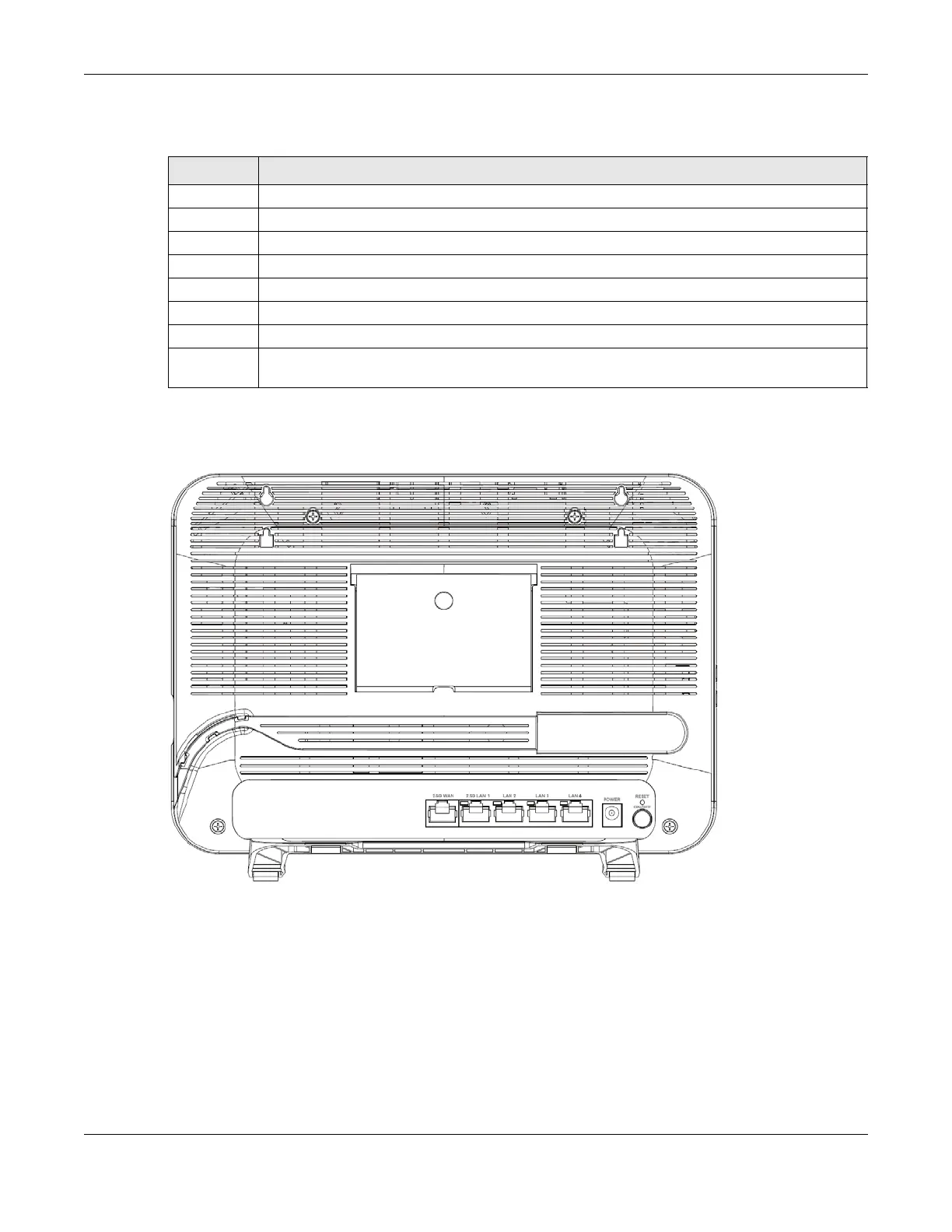

Figure 34 EX5600-T1
Table 18 Panel Ports and Buttons
LABEL DESCRIPTION
WAN Use an Ethernet cable to connect the WAN port to a gateway/modem for Internet connection.
LAN1 – LAN3 Connect computers or other Ethernet devices to Ethernet ports for Internet access.
Phone1/2 Connect analog phones to the PHONE ports to make phone calls.
USB The USB port is used for cellular WAN backup, file-sharing, and media server.
RESET Press the button to return the Zyxel Device to the factory defaults.
POWER Connect the power adapter and press the ON/OFF button to start the device.
WLAN Press the WLAN button for more than 1 second to enable the WiFi function.
WPS Press the WPS button once within 3 seconds to quickly setup a secure WiFi connection between the
device and a WPS-compatible client.
