27.3 LAN Status
Click System Monitor > Traffic Status > LAN to open the following screen. This screen allows you to view
packet statistics for each LAN or WLAN interface on the Zyxel Device.

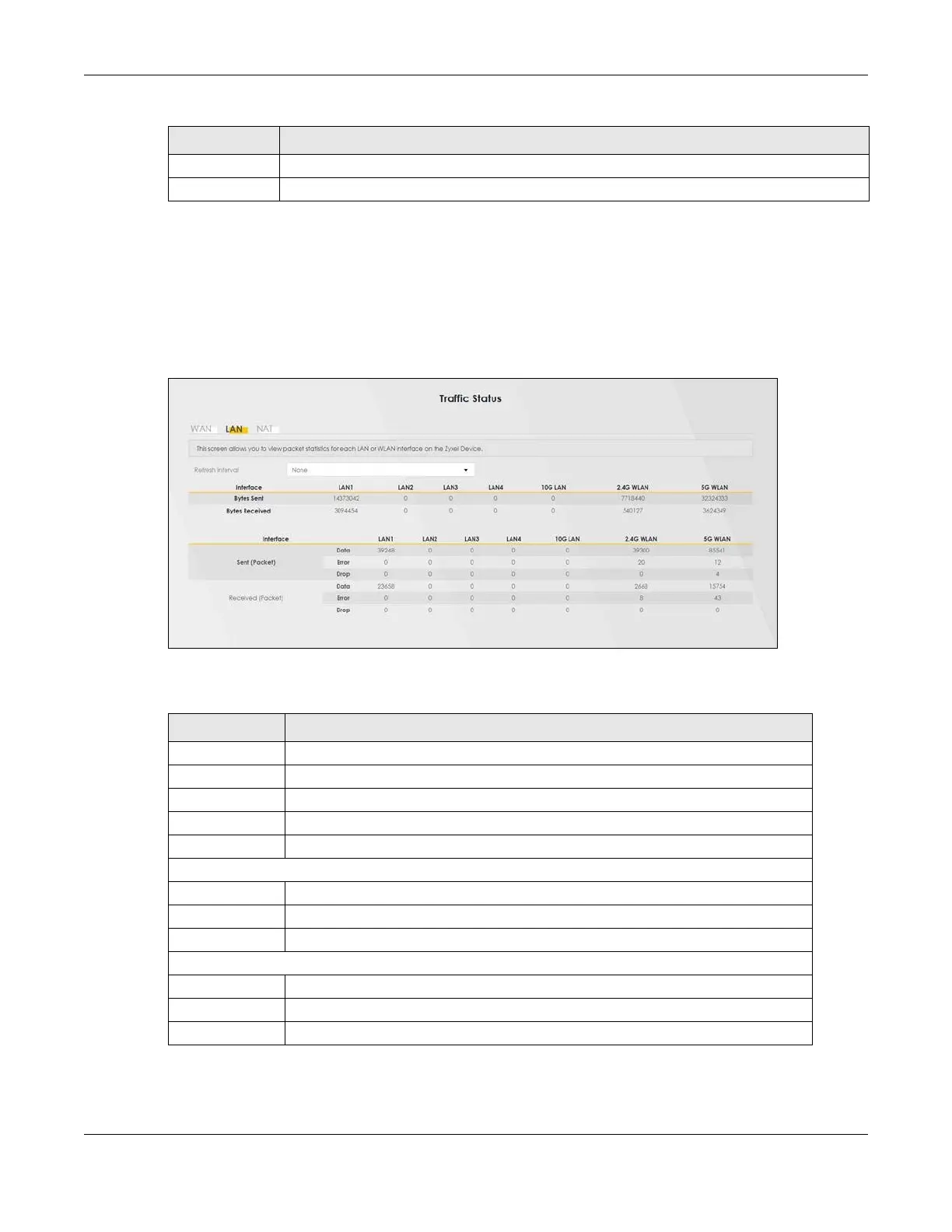

Figure 249 System Monitor > Traffic Status > LAN
The following table describes the fields in this screen.
Error This indicates the number of frames with errors received on this interface.
Drop This indicates the number of received packets dropped on this interface.
Table 168 System Monitor > Traffic Status > WAN (continued)
LABEL DESCRIPTION
Table 169 System Monitor > Traffic Status > LAN
LABEL DESCRIPTION
Refresh Interval Select how often you want the Zyxel Device to update this screen.
Interface This shows the LAN or WLAN interface.
Bytes Sent This indicates the number of bytes transmitted on this interface.
Bytes Received This indicates the number of bytes received on this interface.
Interface This shows the LAN or WLAN interfaces.
Sent (Packets)
Data This indicates the number of transmitted packets on this interface.
Error This indicates the number of frames with errors transmitted on this interface.
Drop This indicates the number of outgoing packets dropped on this interface.
Received (Packets)
Data This indicates the number of received packets on this interface.
Error This indicates the number of frames with errors received on this interface.
Drop This indicates the number of received packets dropped on this interface.
