Chapter 5 Web Interface Tutorials

AX/DX/EX/PX Series User’s Guide

113

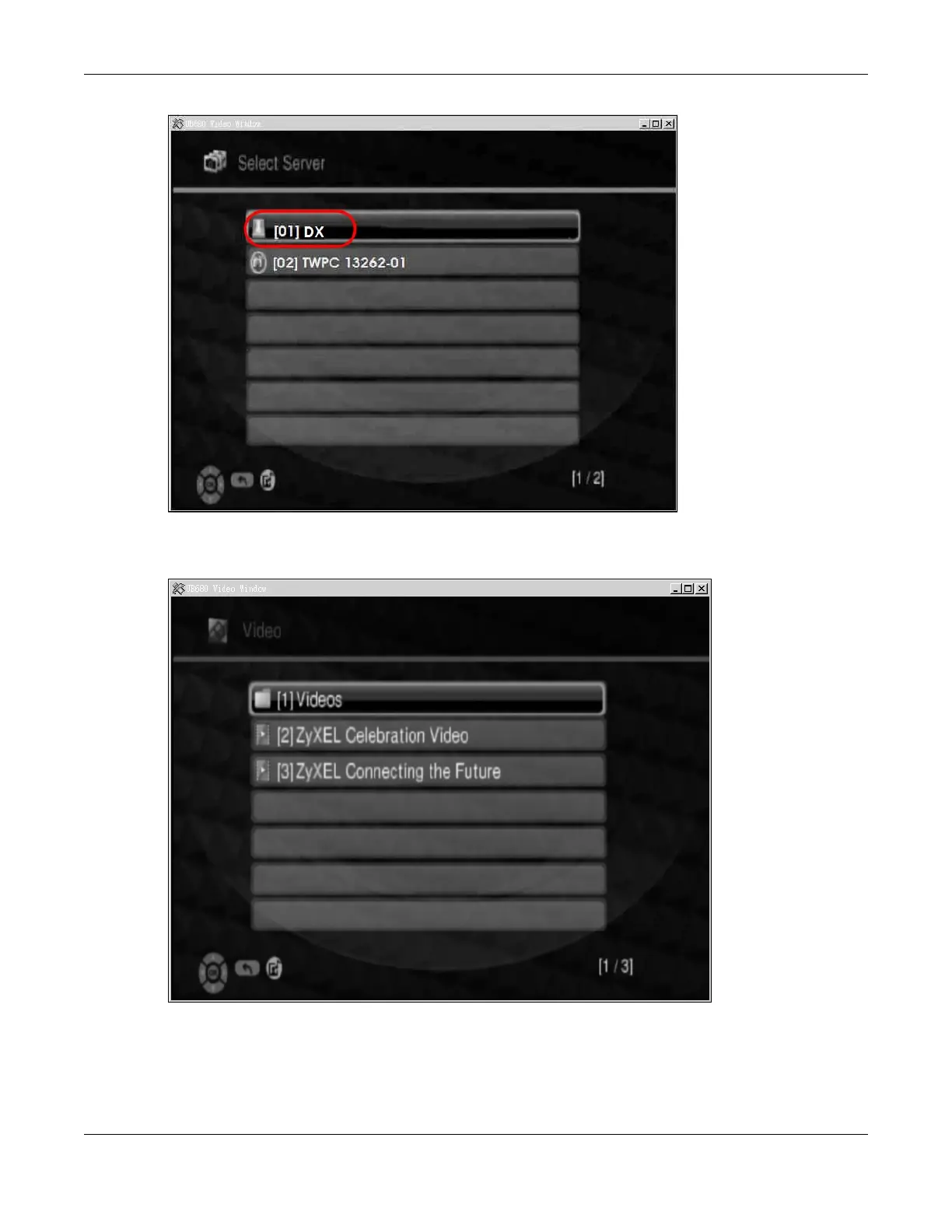

3 The screen shows you the list of available media files in the USB storage device. Select the file you want

to open and push the Play button on the remote control.

5.4.3 Using FTP

This section shows how to use an FTP program to access files on an USB storage device connected to

the Zyxel Device.
