Chapter 6 App Tutorials

AX/DX/EX/PX Series User’s Guide

138

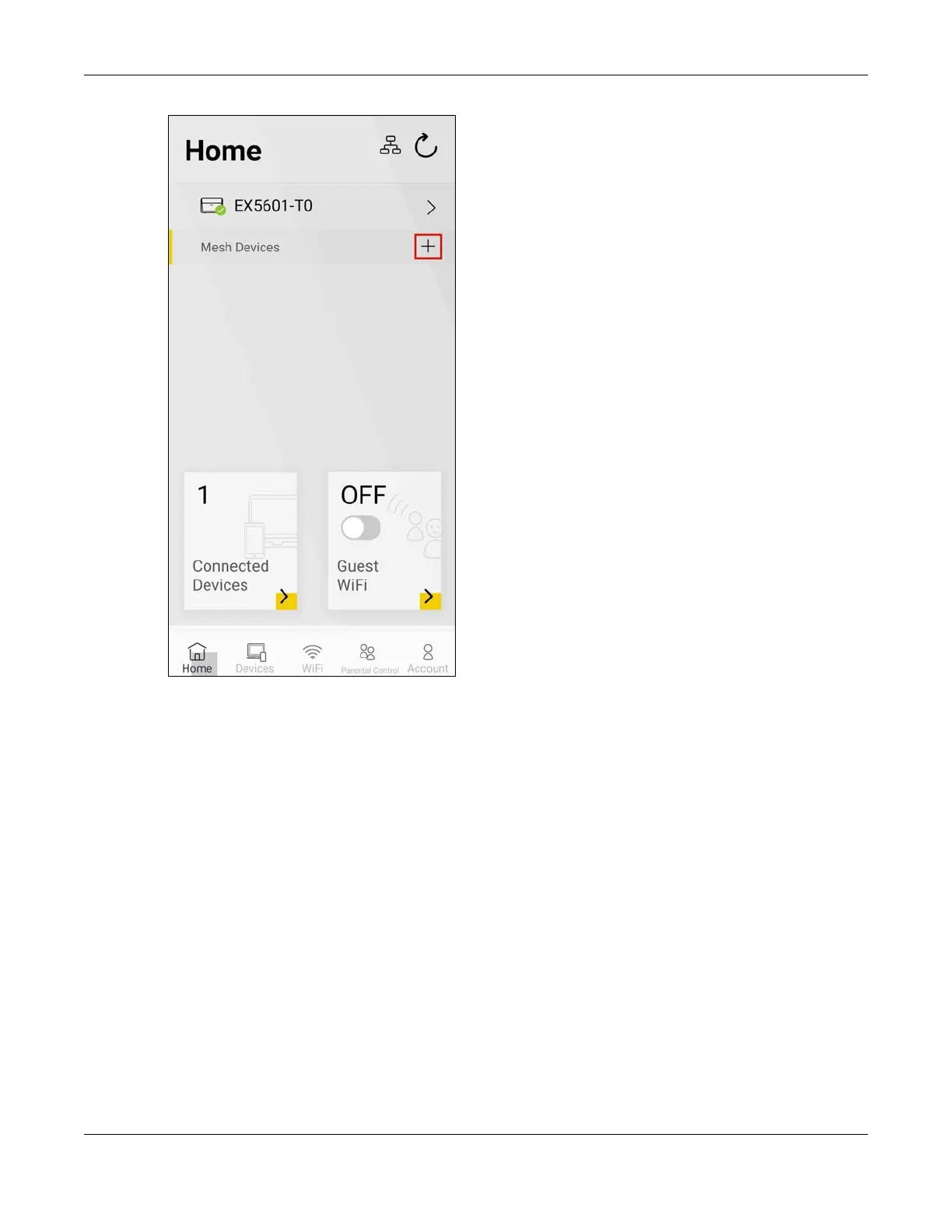

6 Select a connection scenario to pair the MPro Mesh Extender to the MPro Mesh Router (Controller). In

this example, select the Use WiFi scenario.
