Chapter 6 App Tutorials

AX/DX/EX/PX Series User’s Guide

174

Devices

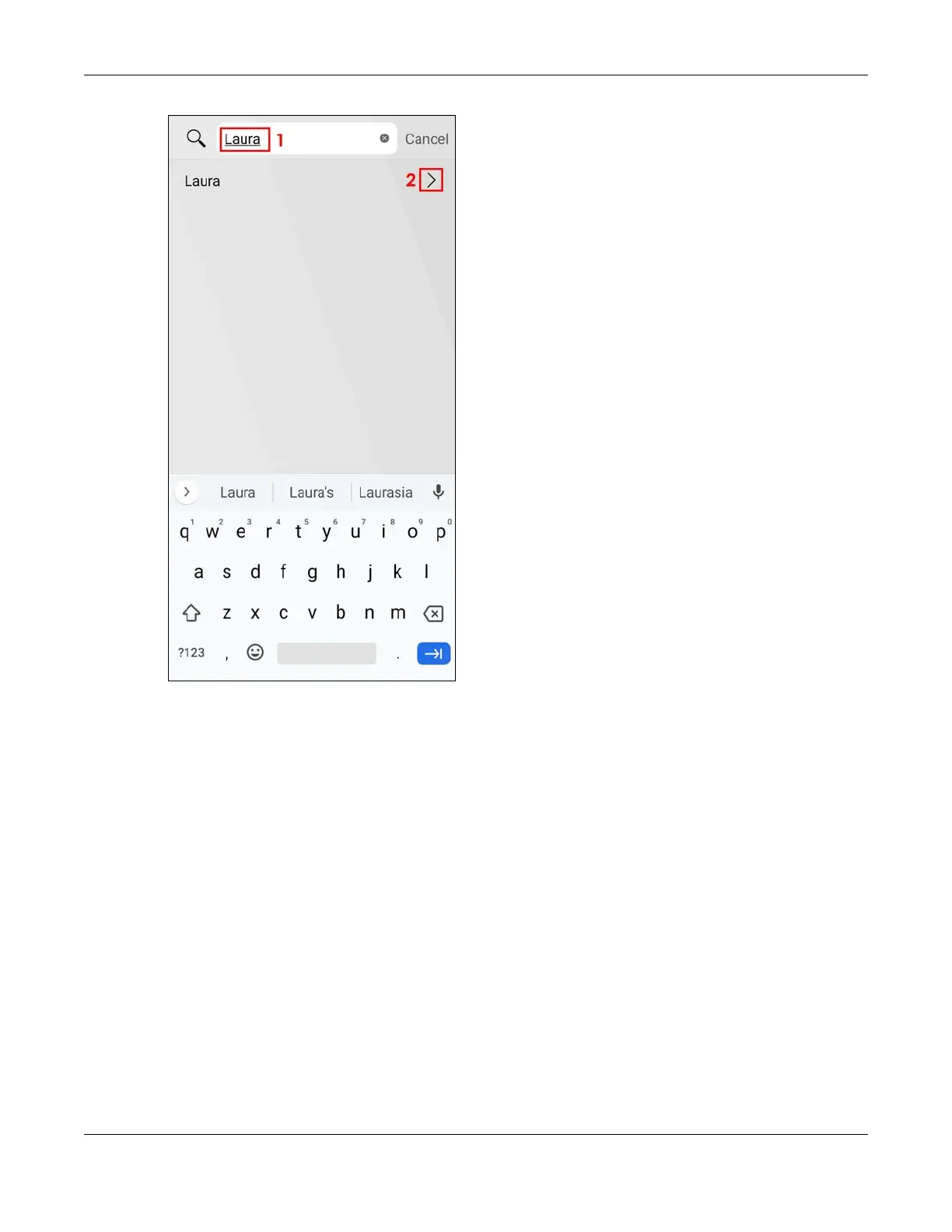

4 Tap to enable the switch in the Pause Internet field. Laura will not be able to access the Internet until you

disable Pause Internet.
