Chapter 6 App Tutorials

AX/DX/EX/PX Series User’s Guide

179

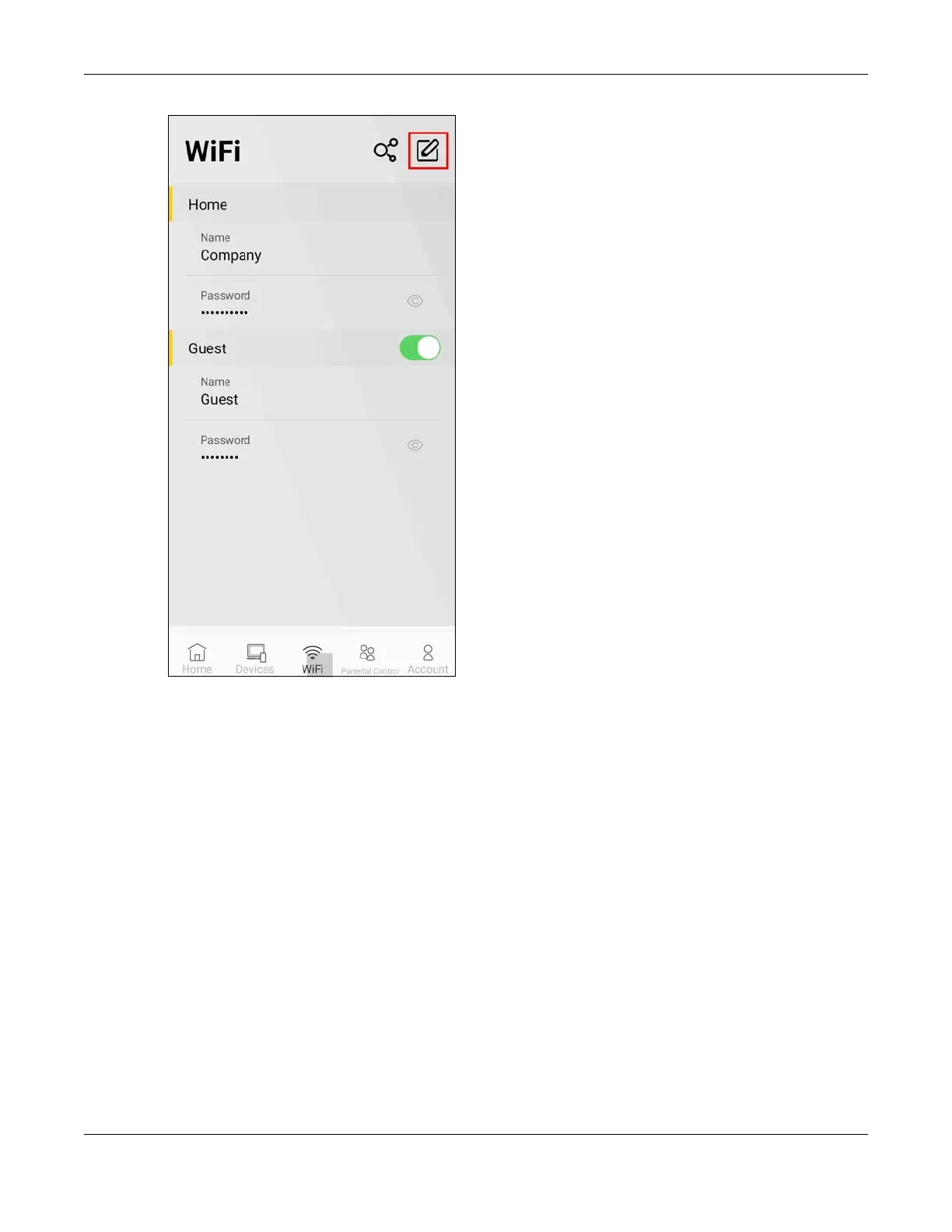

4 Set the Guest WiFi group SSID and password using the parameters given above. Tap Done to save and

apply the settings. Your phone will temporarily disconnect from the Main WiFi network when you change

the Guest WiFi settings. Make sure it reconnects to the Zyxel Main WiFi network.
