Chapter 6 App Tutorials

AX/DX/EX/PX Series User’s Guide

181

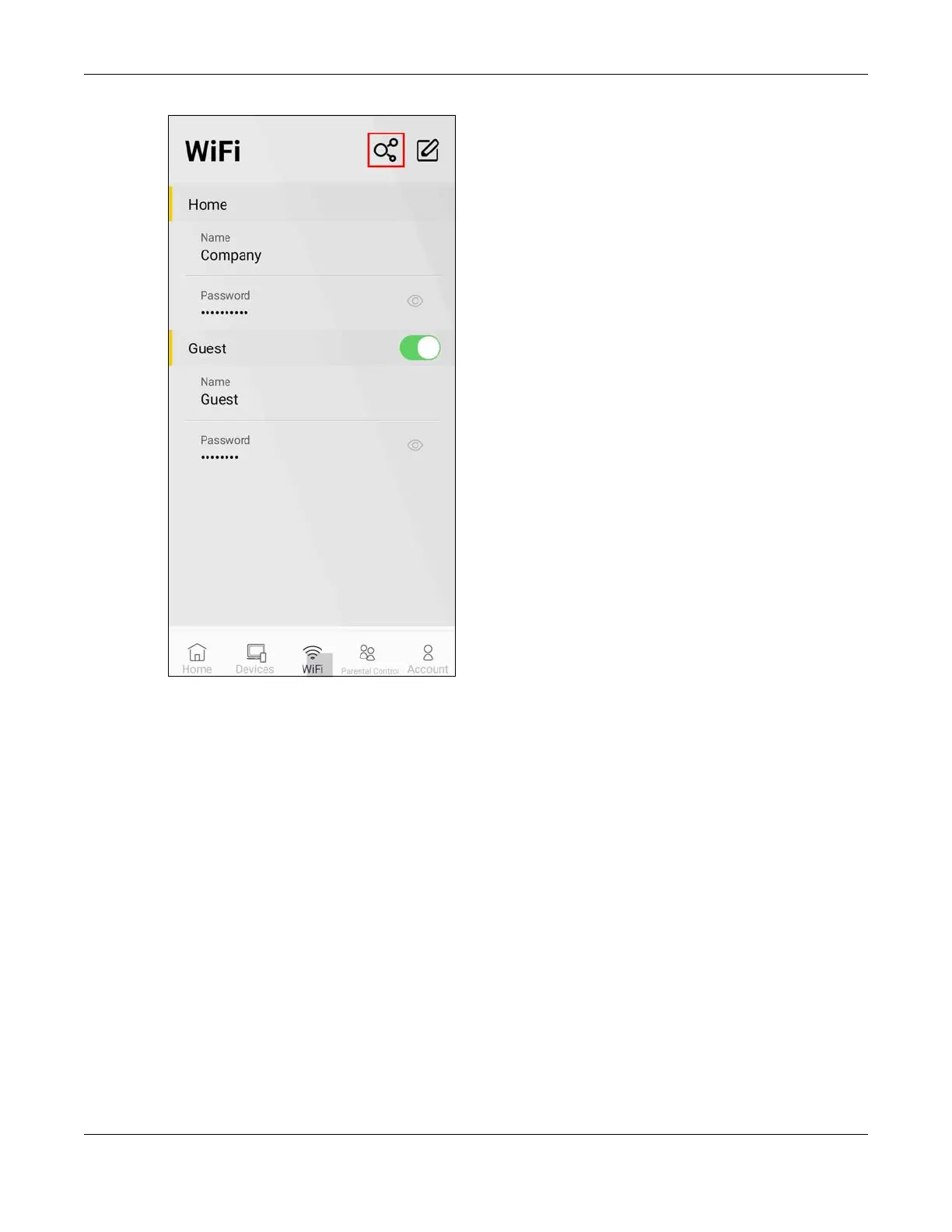

2 Swipe to the left to see the Share Guest WiFi QR code for connecting to the Zyxel Device Guest WiFi.

Take a screenshot of the QR code and share it with the WiFi clients that you let access the Internet (only)

through this WiFi network. These WiFi clients cannot access other devices on your network such as servers

connected to the router.
