Chapter 10 Home Networking

AX/DX/EX/PX Series User’s Guide

292

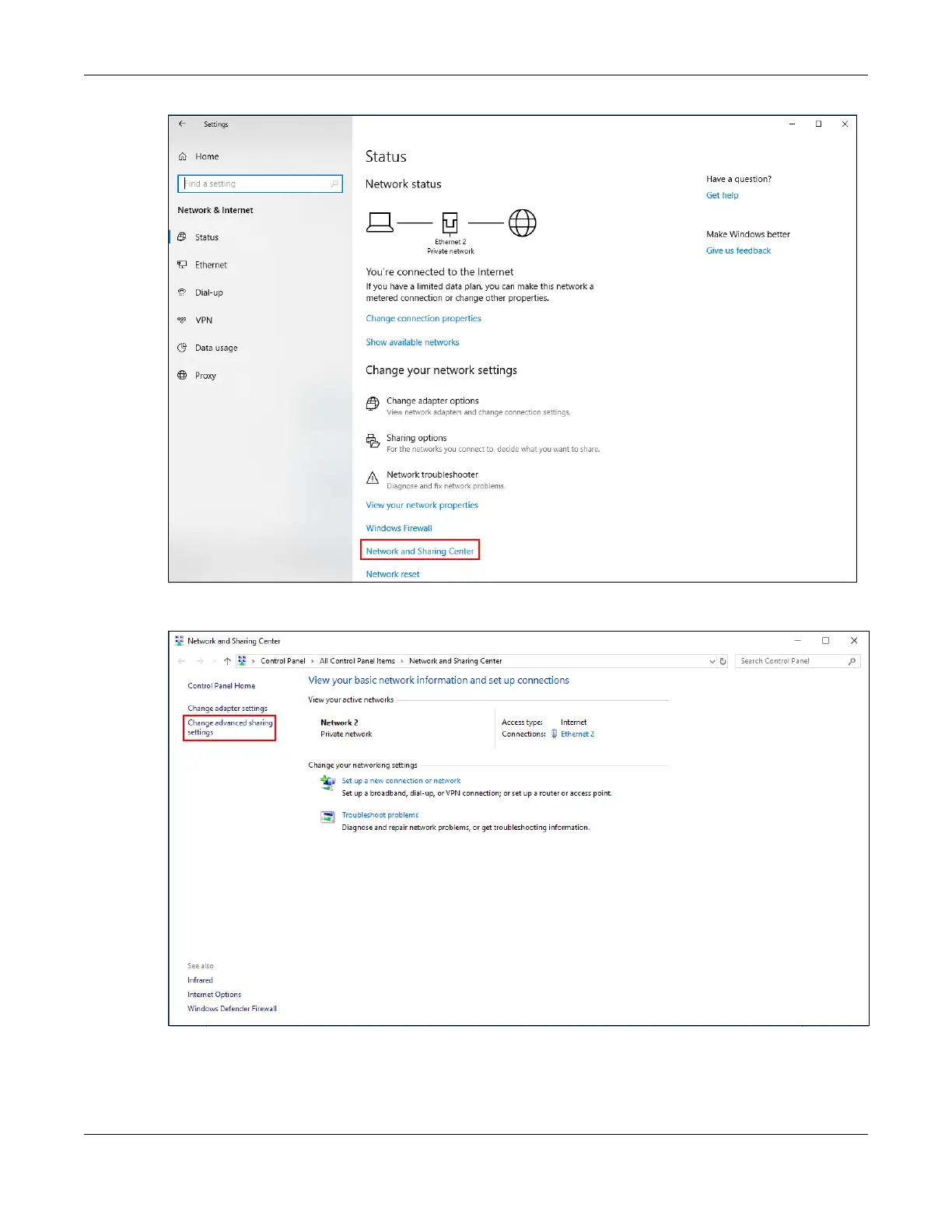

3 Click Change advanced sharing settings.

4 Under Domain, select Turn on network discovery and click Save Changes. Network discovery allows your

computer to find other computers and devices on the network and other computers on the network to

find your computer. This makes it easier to share files and printers.
