Chapter 10 Home Networking

AX/DX/EX/PX Series User’s Guide

294

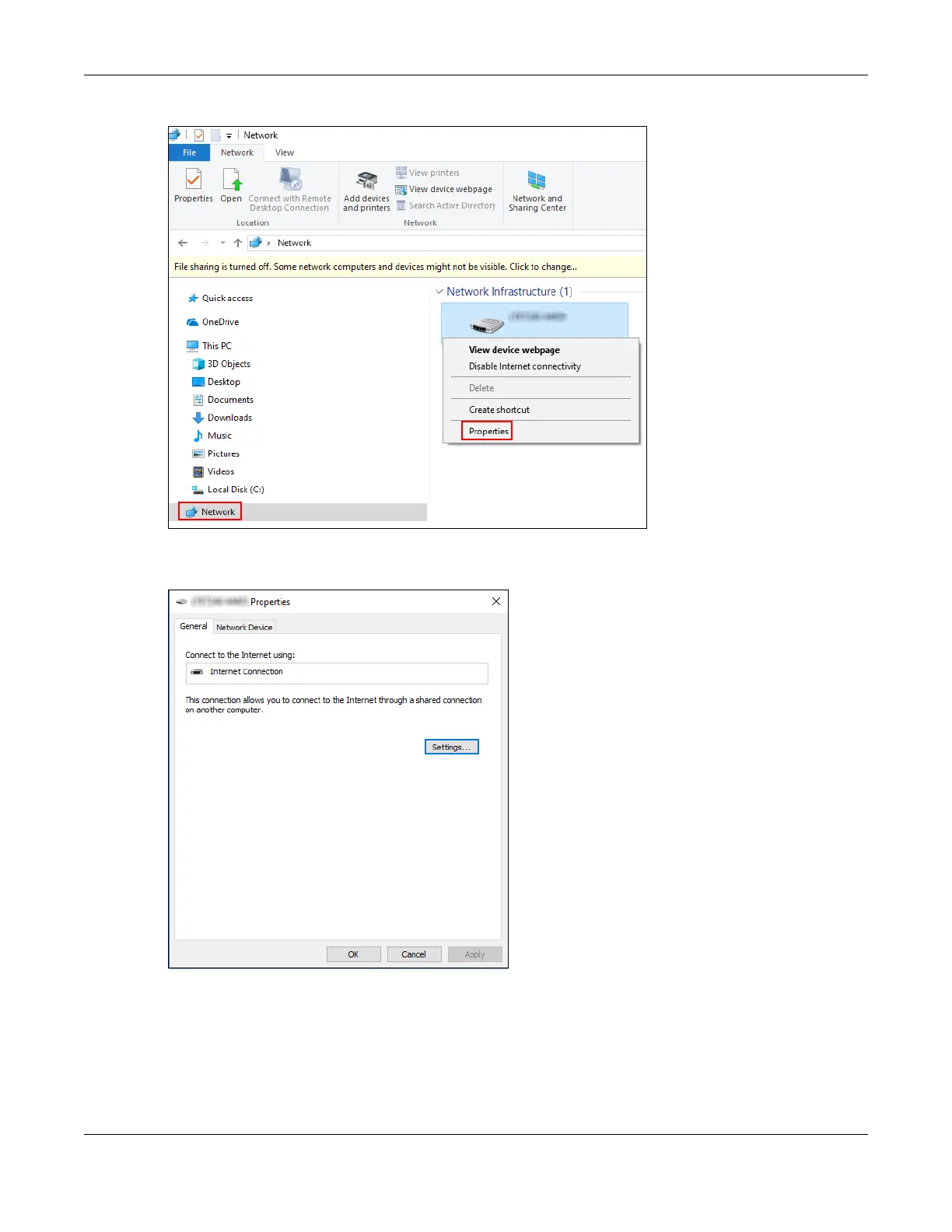

Figure 137 Network Connections

3 In the Internet Connection Properties window, click Settings to see port mappings.

Figure 138 Internet Connection Properties

4 You may edit or delete the port mappings or click Add to manually add port mappings.
