Chapter 10 Home Networking

AX/DX/EX/PX Series User’s Guide

297

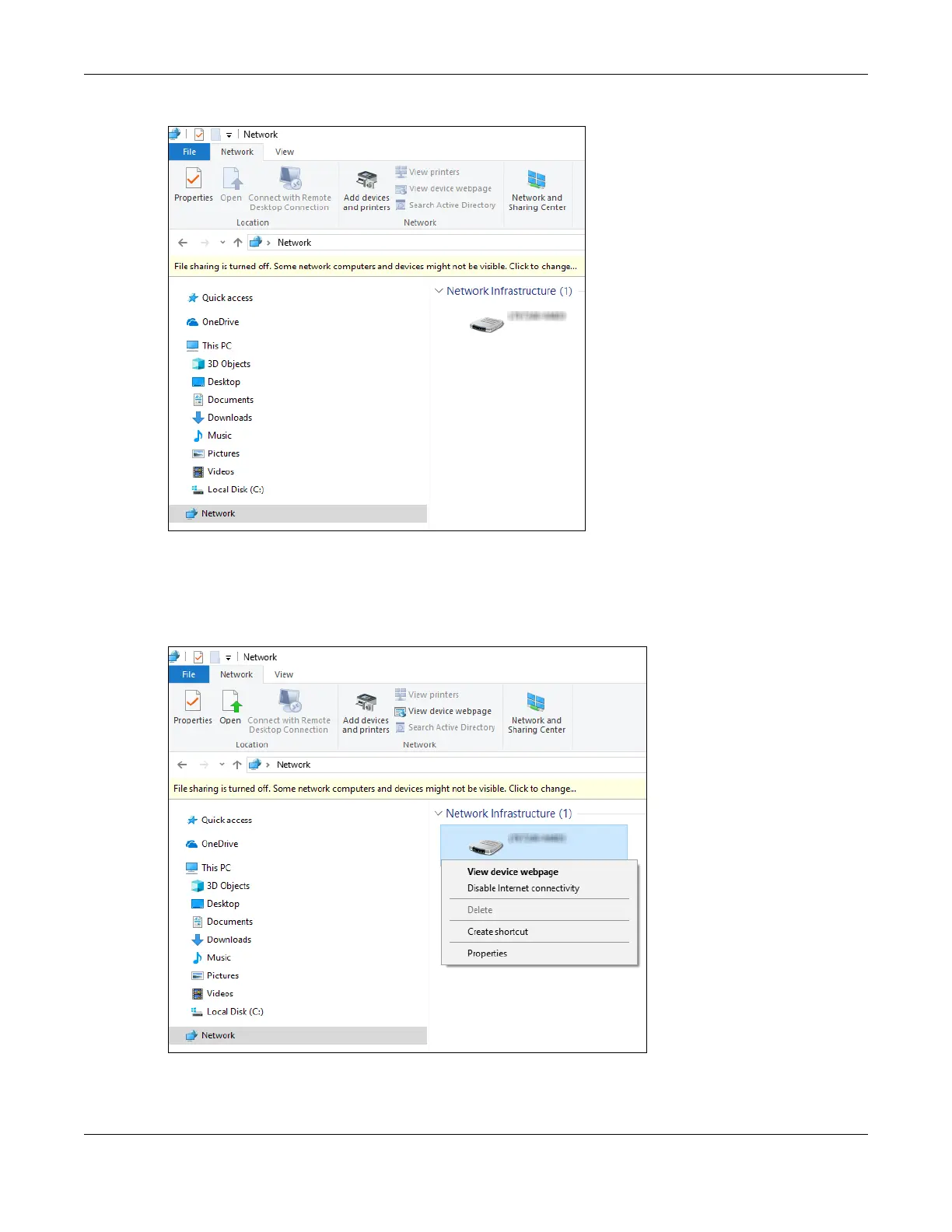

Figure 143 Network Connections

3 An icon with the description for each UPnP-enabled device displays under Network Infrastructure.

4 Right-click the icon for your Zyxel Device and select View device webpage. The Web Configurator login

screen displays.

Figure 144 Network Connections: Network Infrastructure

5 Right-click the icon for your Zyxel Device and select Properties. Click the Network Device tab. A window

displays information about the Zyxel Device.
