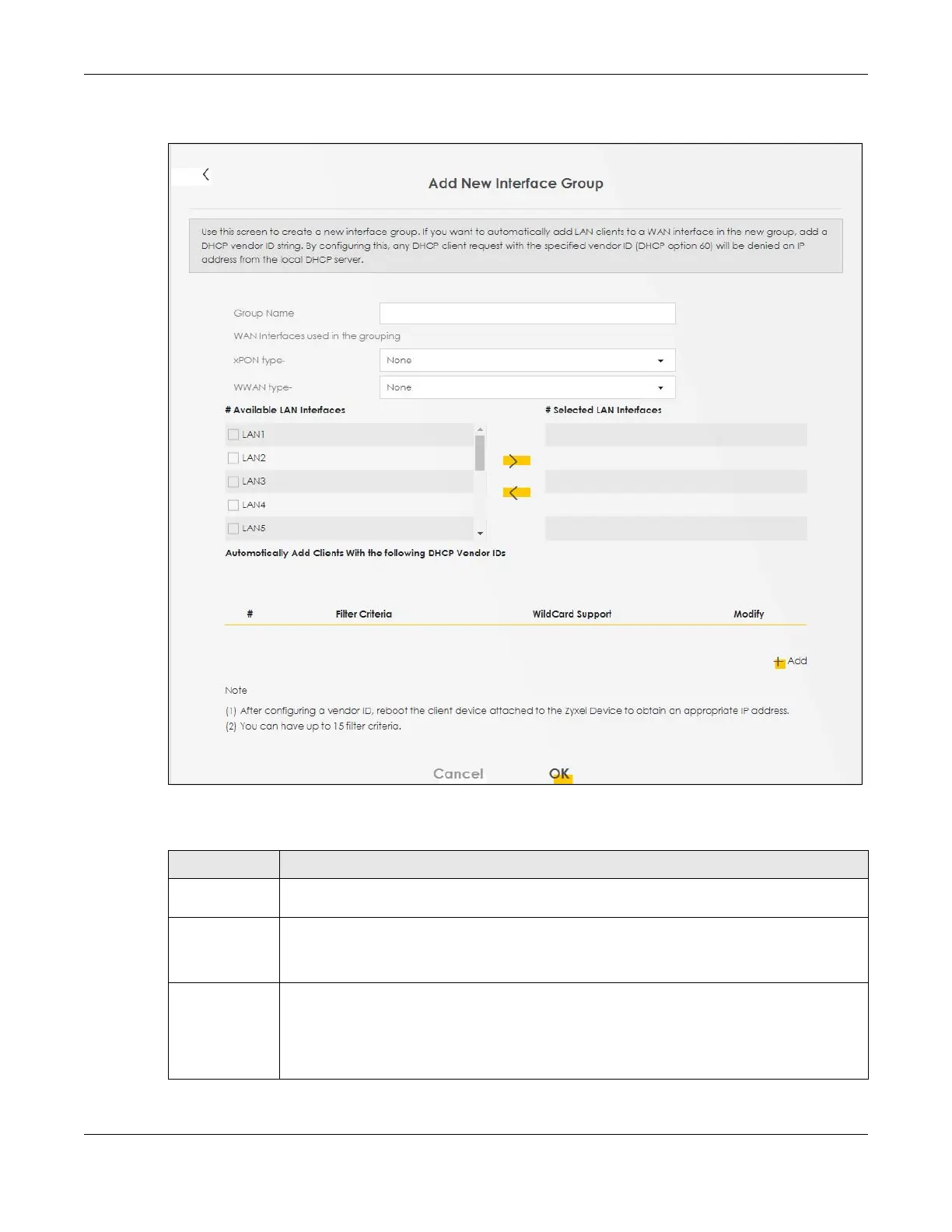

Figure 195 Network Setting > Interface Grouping > Add New Interface Group (for AON and PON
routers)
The following table describes the fields in this screen.
Table 119 Network Setting > Interface Grouping > Add New Interface Group/Edit
LABEL DESCRIPTION
Group Name Enter a descriptive name for this interface group. You can use up to 32 printable characters
except [ " ], [ ` ], [ ' ], [ < ], [ > ], [ ^ ], [ $ ], [ | ], [ & ], or [ ; ]. Spaces are allowed.
WAN Interfaces
used in the
grouping
Select the WAN interface this group uses. The group can have up to one PTM interface, up to
one ATM interface, up to one ETH interface, and up to one WWAN interface.
Select None to not add a WAN interface to this group.
Selected LAN
Interfaces
Available LAN
Interfaces
Select one or more interfaces (Ethernet LAN, wireless LAN) in the Available LAN Interfaces list
and use the left arrow to move them to the Selected LAN Interfaces list to add the interfaces to
this group.
To remove a LAN or wireless LAN interface from the Selected LAN Interfaces, use the right-facing
arrow.
