Appendix B Wireless LANs
AX/DX/EX/PX Series User’s Guide
529
WPA(2)-PSK Application Example
A WPA(2)-PSK application looks as follows.
1 First enter identical passwords into the AP and all WiFi clients. The Pre-Shared Key (PSK) must consist of
between 8 to 63 alphanumeric (0-9, a-z, A-Z) and special characters, including spaces.
2 The AP checks each WiFi client's password and allows it to join the network only if the password
matches.
3 The AP and WiFi clients generate a common PMK (Pairwise Master Key). The key itself is not sent over the
network, but is derived from the PSK and the SSID.
4 The AP and WiFi clients use the TKIP or AES encryption process, the PMK and information exchanged in a
handshake to create temporal encryption keys. They use these keys to encrypt data exchanged
between them.

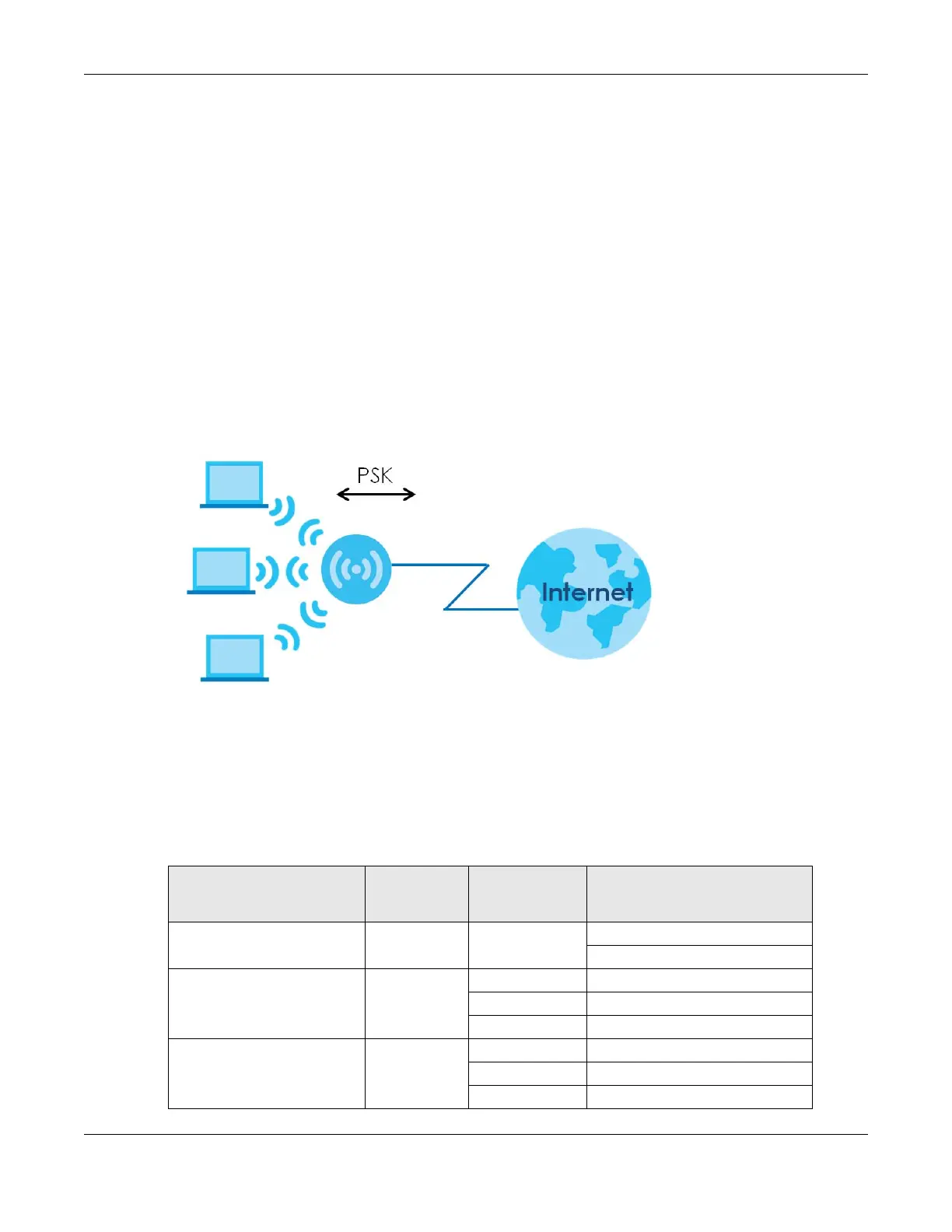

Figure 295 WPA(2)-PSK Authentication
Security Parameters Summary
Refer to this table to see what other security parameters you should configure for each authentication
method or key management protocol type. MAC address filters are not dependent on how you
configure these security features.
Table 199 Wireless Security Relational Matrix
AUTHENTICATION METHOD/
KEY MANAGEMENT
PROTOCOL
ENCRYPTION
METHOD
ENTER MANUAL
KEY
IEEE 802.1X
Open None No Disable
Enable without Dynamic WEP Key
Open WEP No Enable with Dynamic WEP Key
Yes Enable without Dynamic WEP Key
Yes Disable
Shared WEP No Enable with Dynamic WEP Key
Yes Enable without Dynamic WEP Key
Yes Disable
