Chapter 2 Hardware
AX/DX/EX/PX Series User’s Guide
63

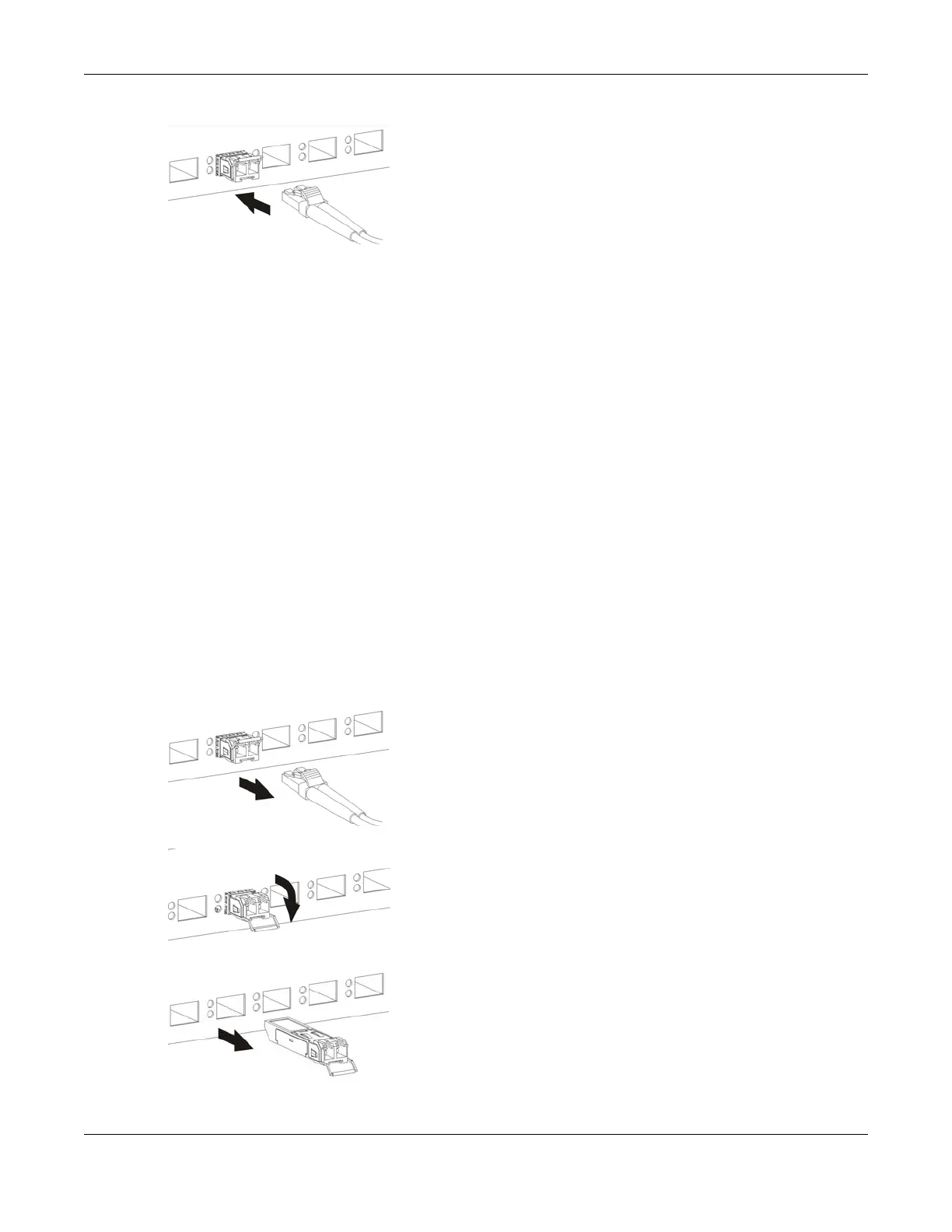

Figure 43 Connecting the Fiber Cables
Transceiver Removal
Use the following steps to remove an SFP transceiver.
1 Attach an ESD preventive wrist strap to your wrist and to a bare metal surface on the chassis.
2 Remove the fiber cables from the transceiver.
3 Pull out the latch and down to unlock the transceiver (latch styles vary).
Note: Make sure the transceiver’s latch is pushed all the way down, so the transceiver can be
pulled out successfully.
4 Pull the latch, or use your thumb and index finger to grasp the tabs on both sides of the transceiver, and
carefully slide it out of the slot.
Note: Do NOT pull the transceiver out by force. You could damage it. If the transceiver will not
slide out, grasp the tabs on both sides of the transceiver with a slight up or down motion
and carefully slide it out of the slot. If unsuccessful, contact Zyxel Support to prevent
damage to your Zyxel Device and transceiver.
5 Insert the dust plug into the ports on the transceiver and the cables.
Figure 44 Removing the Fiber Cables
Figure 45 Opening the Transceiver’s Latch Example
Figure 46 Transceiver Removal Example
