Chapter 3 Web Configurator

AX/DX/EX/PX Series User’s Guide

Note: The first time you enter the password, you will be asked to change it. Make sure the new

password must contain at least one uppercase letter, one lowercase letter and one

number. For some models, the password must contain at least one English character

and one number. Please see the password requirement displayed on the screen.

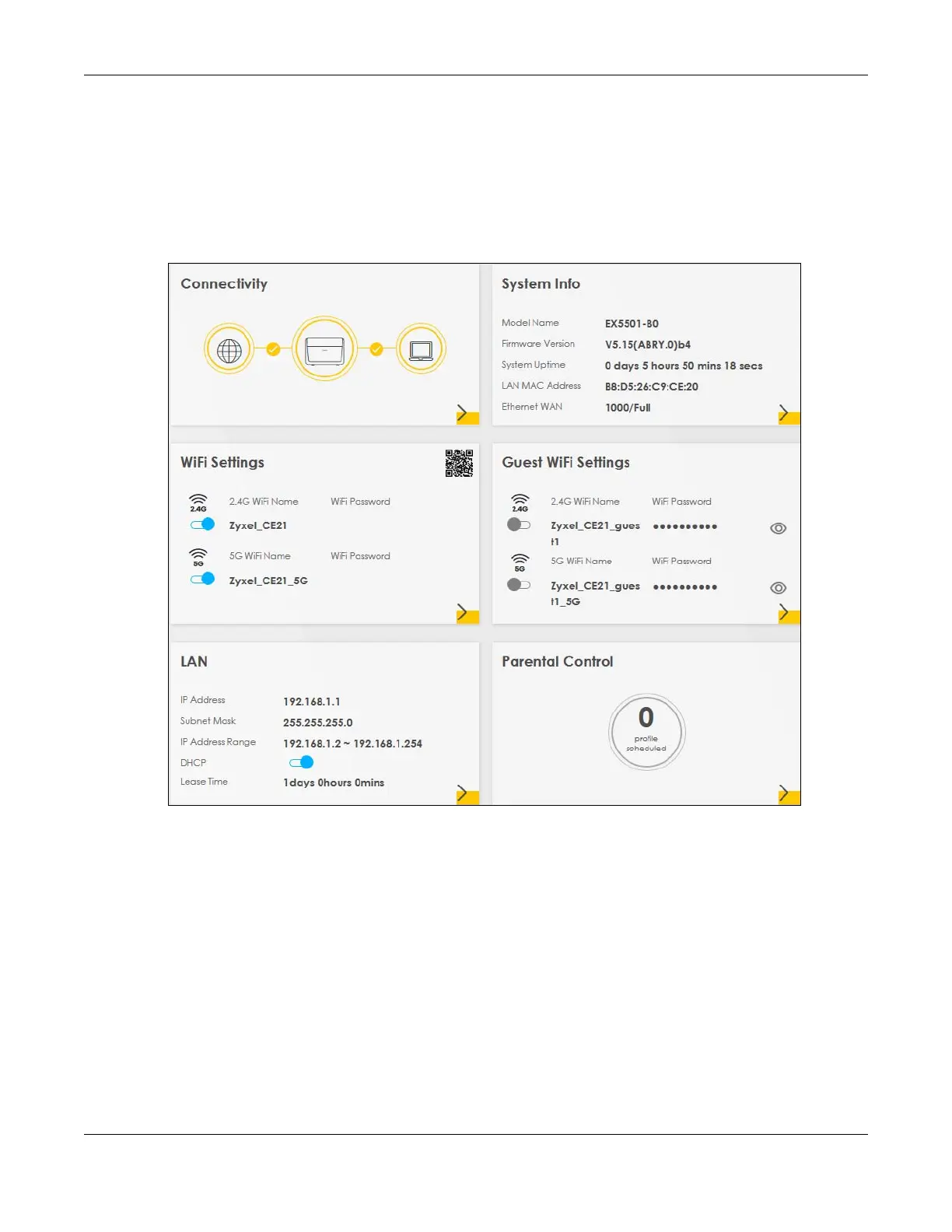

6 The Connection Status screen appears. Use this screen to configure basic Internet access and WiFi

settings.

Figure 48 Connection Status
