Chapter 9 VLAN
GS2220 Series User’s Guide
138
9.3.1 VLAN De ta ils
Use this screen to view detailed port settings and status of the static VLAN group. Click an index number
in the VLAN Sta tus screen to display VLAN details.

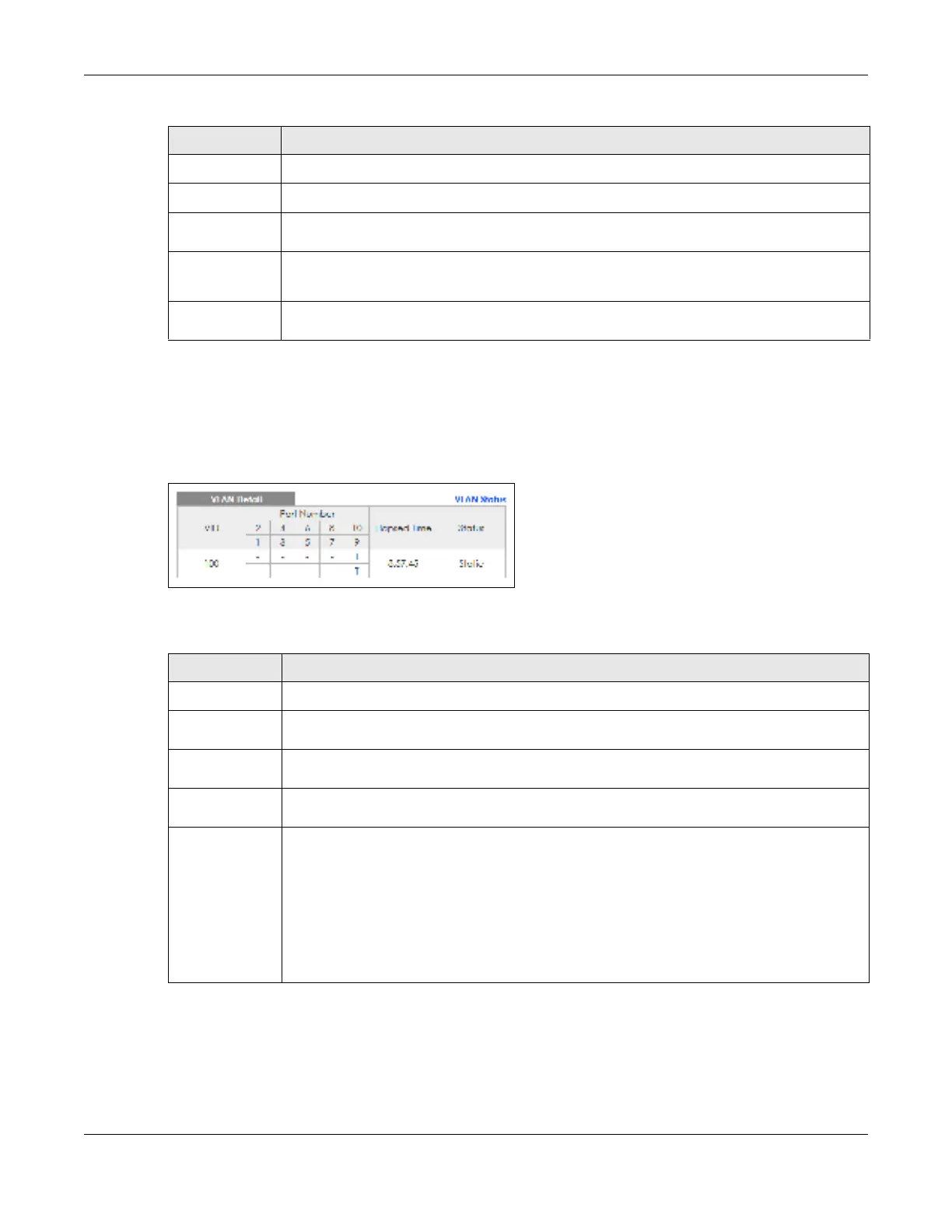

Fig ure 112 Advanced Application > VLAN > VLAN Detail
The following table describes the labels in this screen.
Tagged Port This field shows the tagged ports that are participating in the VLAN.
Untagged Port This field shows the untagged ports that are participating in the VLAN.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static VLAN was
set up.
Status This field shows how this VLAN was added to the Switch.
Sta tic : added as a permanent entry.
Change Pages Click Pre vio us or Ne xt to show the previous or next screen if all status information cannot be seen
in one screen.
Table 49 Advanced Application > VLAN: VLAN Status (continued)
LABEL DESC RIPTIO N
Table 50 Advanced Application > VLAN > VLAN Detail
LABEL DESC RIPTIO N
VLAN Status Click this to go to the VLAN Sta tus screen.
VID This is the VLAN identification number that was configured in the corresponding VLAN
configuration screen.
Port Number This column displays the ports that are participating in a VLAN. A tagged port is marked as T, an
untagged port is marked as U and ports not participating in a VLAN are marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static VLAN was
set up.
Status This field shows how this VLAN was added to the Switch.
Dyna mic : using GVRP
Sta tic : added as a permanent entry
Vo ic e : manually added as a Voice VLAN
MVR: added through multicast VLAN registration
MAC- b a se d : manually added as MAC-based VLAN
