Chapter 57 Port Status
GS2220 Series User’s Guide
452

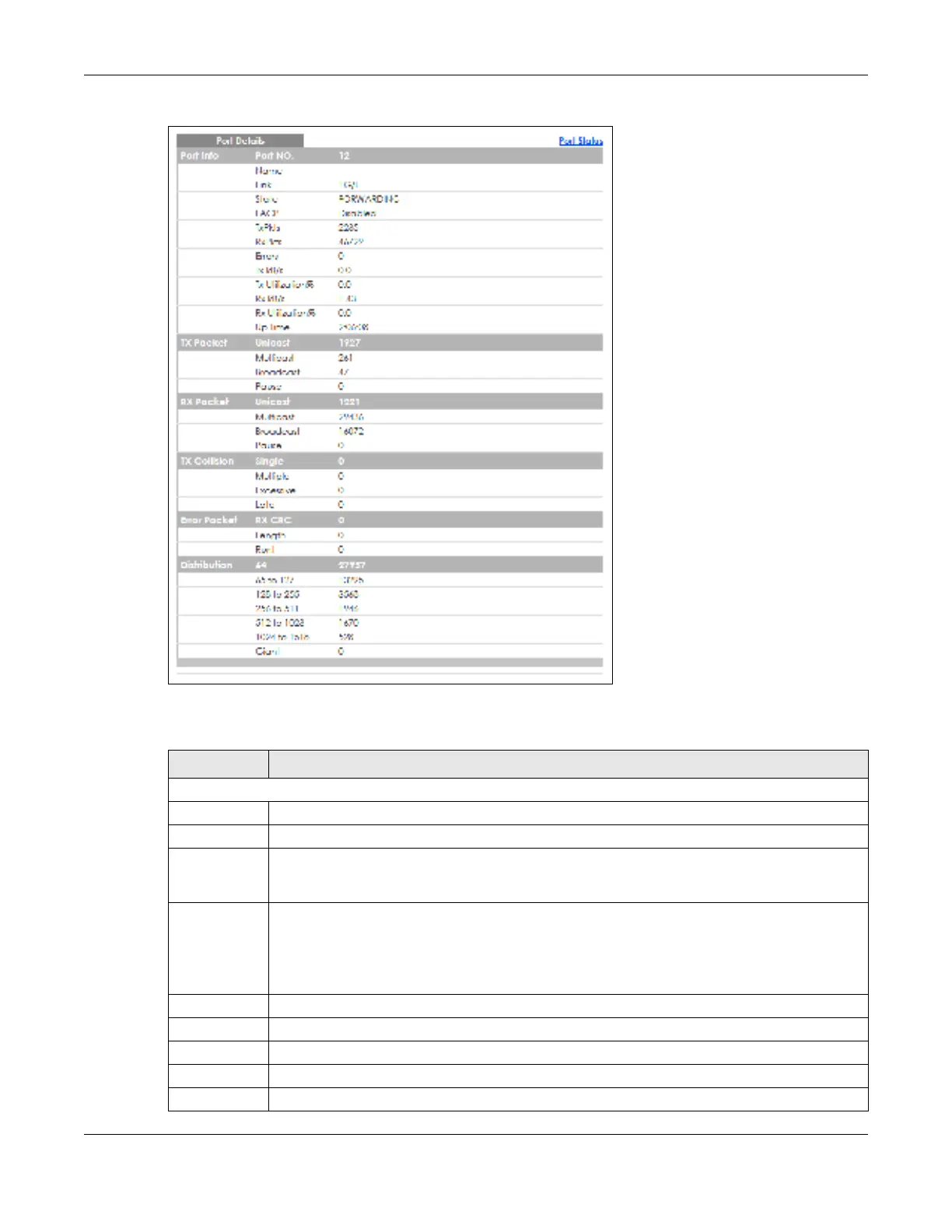

Fig ure 343 Management > Port Status > Port Details
The following table describes the labels in this screen.
Table 237 Management > Port Status > Port Details
LABEL DESC RIPTIO N
Port Info
Port NO. This field displays the port number you are viewing.
Name This field displays the name of the port.
Link This field displays the speed (either 10M for 10 Mbps, 100M for 100 Mbps, or 1G for 1 Gbps) and the
duplex (F for full duplex or H for half duplex). It also shows the cable type (Co ppe r or Fib e r) for the
combo ports. This field displays Down if the port is not connected to any device.
State If STP (Spanning Tree Protocol) is enabled, this field displays the STP state of the port.
If STP is disabled, this field displays FO RWARDING if the link is up, otherwise, it displays STOP.
When LACP (Link Aggregation Control Protocol), STP, and dot1x are in blocking state, it displays
Blo c king .
LACP This field shows if LACP is enabled on this port or not.
TxPkts This field shows the number of transmitted frames on this port.
RxPkts This field shows the number of received frames on this port.
Errors This field shows the number of received errors on this port.
Tx kB/s This field shows the number of kilobytes per second transmitted on this port.
