ADCMT 6166 User Manual

6166 DC Voltage Current Source Operation Manual
8.3.2 Manual Calibration Procedures
8-14
Press to confirm the input and return to the original screen.
The connection coefficient calibration is complete.
Press to set the output to OFF.
NOTE: The calibration must include upper digit output-1 calibration, upper digit output-2 calibration and lower
digit output calibration.

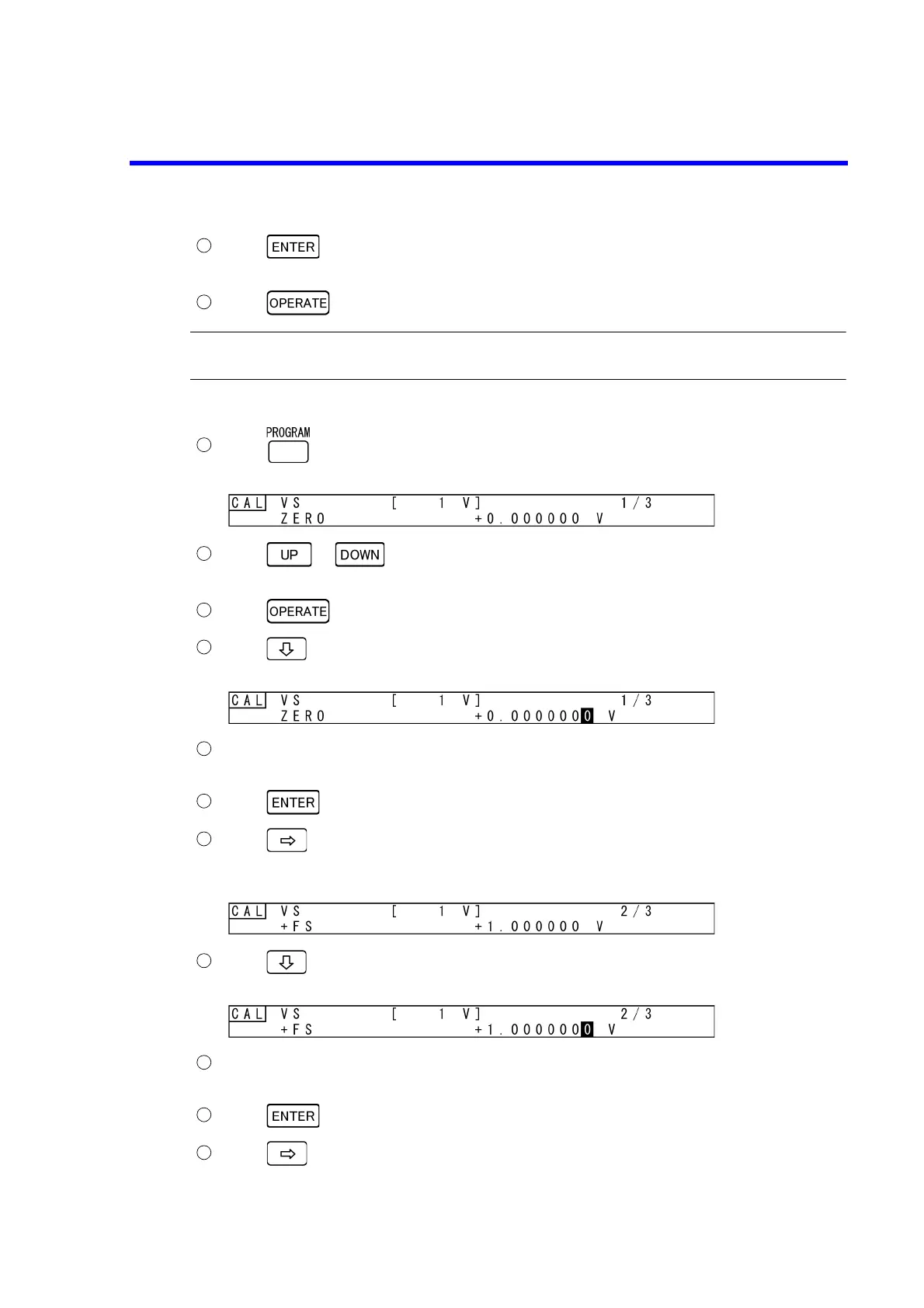

(2) Manual Calibration Procedure (Voltage Source)
Press to set the voltage source calibration function.
Press or to move to a range to be calibrated.
In this example, the 1 V range is to be calibrated.
Press key to set the output to ON.
Press to enter the digital multimeter read value input screen.
After waiting for five or more seconds, input the read value by using the rotary knob or numeric
keypad.
Press to confirm the input and return to the original screen.
Press to switch to the next calibration target (+ full scale). The screen is displayed as shown
below.
Press to enter the digital multimeter read value input screen.
After waiting for five or more seconds, input the read value by using the rotary knob or numeric
keypad. When calibrating the 1000 V range, wait for 20 seconds or more before input.
Press to confirm the input and return to the original screen.
Press to switch to the next calibration target (- full scale). The screen is displayed as shown
below.
13
14
1
2
3
4
5
6
7
8
9
10
11
