6166 DC Voltage Current Source Operation Manual

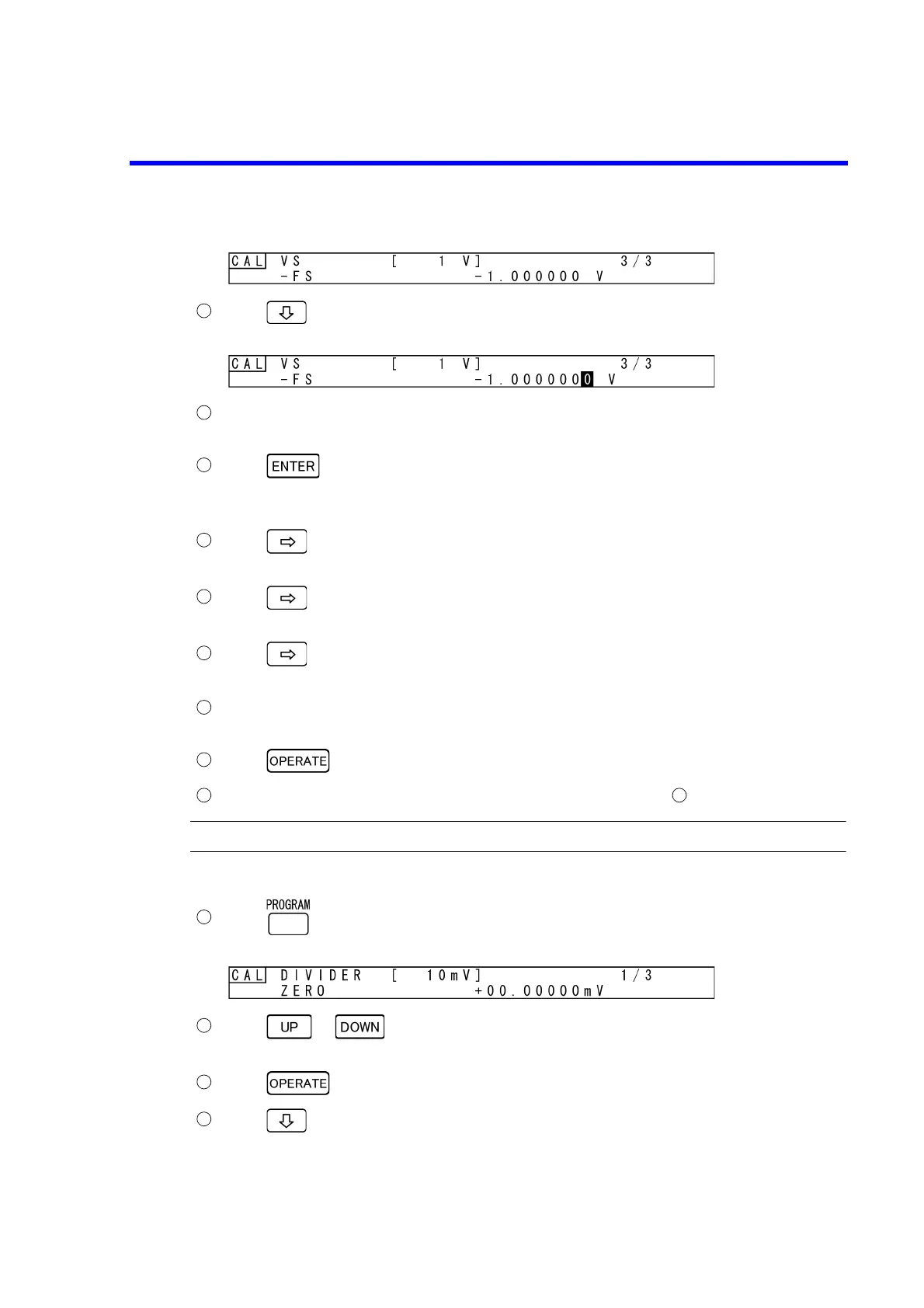

8.3.2 Manual Calibration Procedures
8-15
Press to enter the digital multimeter read value input screen.
After waiting for five or more seconds, input the read value by using the rotary knob or numeric
keypad. When calibrating the 1000 V range, wait for 20 seconds or more before input.
Press to confirm the input and return to the original screen.
The 1 V range output has been adjusted by the above steps.
Next, whether it has been correctly adjusted or not is checked.
Press to switch the calibration target to zero point.
Check that the digital multimeter read value meets the tolerance range (See Table 8-2).
Press to switch the calibration target to + full scale.
Check that the digital multimeter read value meets the tolerance range (See Table 8-2).
Press to switch the calibration target to - full scale.
Check that the digital multimeter read value meets the tolerance range (See Table 8-2).
If any result is out of the tolerance range, repeat the above procedure to perform calibration on all the
calibration targets.
Press to set the output to OFF.
When calibrating another range, repeat the above procedure from Step .
NOTE: The calibration must include zero point calibration, + full scale calibration and - full scale calibration.
(3) Manual Calibration Procedure (Divider Voltage Source)
Press to set the divider voltage source calibration function.
Press or to move to a range to be calibrated.
In this example, the 10 mV range is to be calibrated.
Press key to set the output to ON.
Press to enter the digital multimeter read value input screen.
To Next Page
