8.3.2 Manual Calibration Procedures
8-18

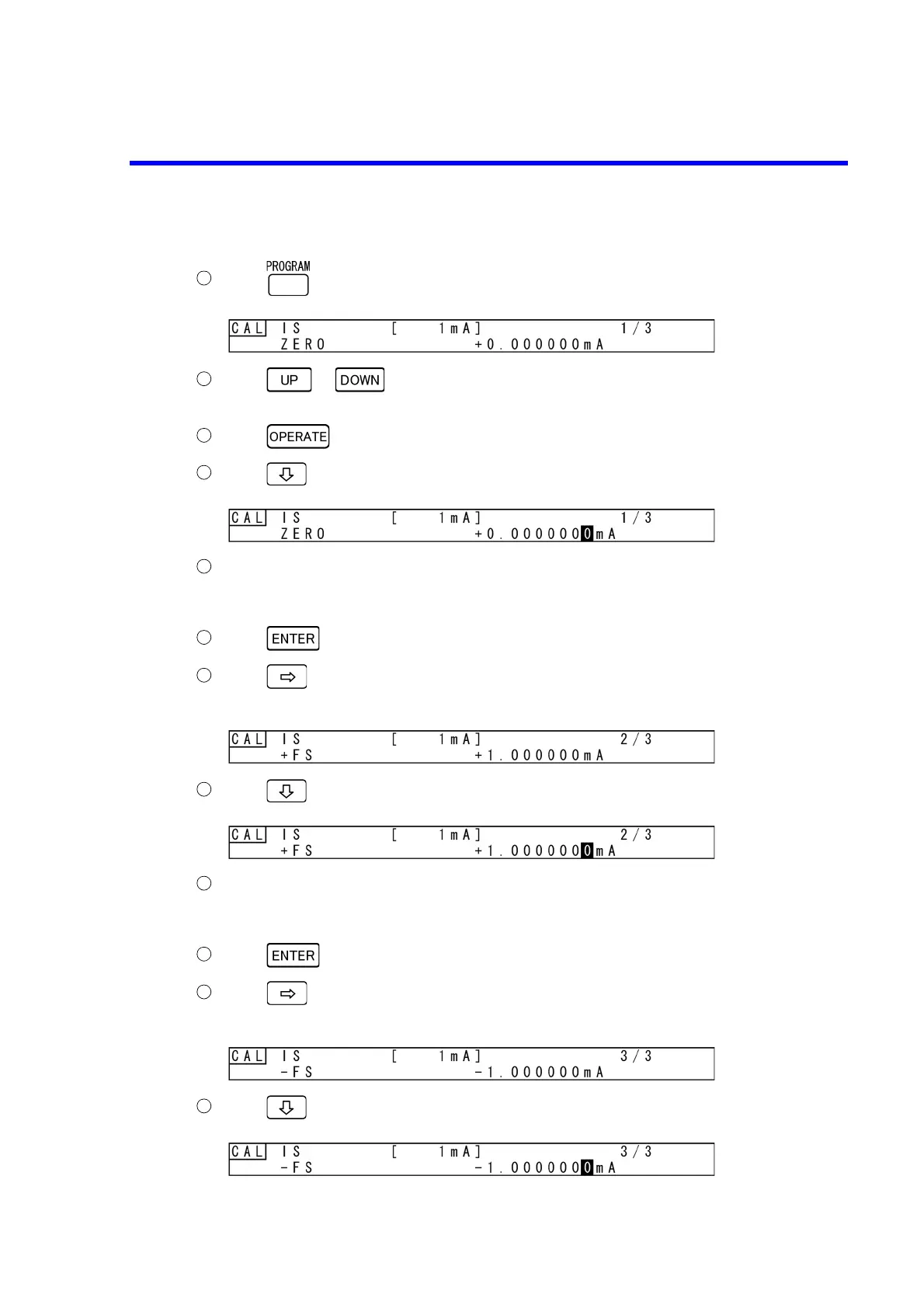

(4) Manual Calibration Procedure (Current Source)
Press to set the current source calibration function.
Press or to move to a range to be calibrated.
In this example, the 1 mA range is to be calibrated.
Press key to set the output to ON.
Press to enter the digital multimeter read value input screen.
After waiting for five or more seconds, input the converted current value by using the rotary knob or
numeric keypad.
Converted current value (A) = DMM measured voltage (V) / Standard resistance for calibration ()
Press to confirm the input and return to the original screen.
Press to switch to the next calibration target (+ full scale). The screen is displayed as shown
below.
Press to enter the digital multimeter read value input screen.
After waiting for five or more seconds, input the converted current value by using the rotary knob or
numeric keypad.
Converted current value (A) = DMM measured voltage (V) / Standard resistance for calibration ()
Press to confirm the input and return to the original screen.
Press to switch to the next calibration target (- full scale). The screen is displayed as shown
below.
Press to enter the digital multimeter read value input screen.
