Chapter 5 Optional DIO Cables
126 Adept MV Controller User’s Guide, Rev. B

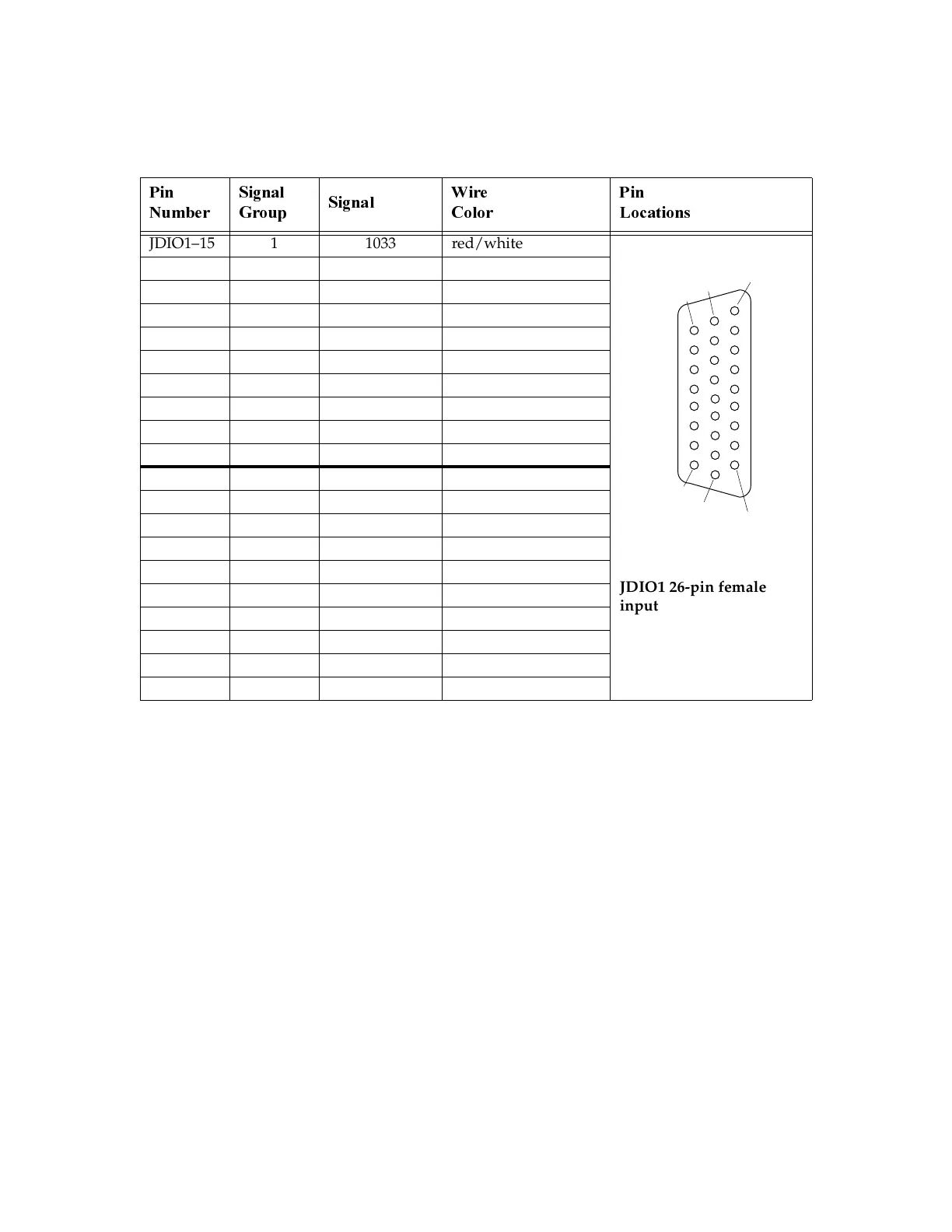

Table 5-10. JDIO1 Input Cable Pin Assignments
JDIO1–15 1 1033 red/white
JDIO1 26-pin female
input connector on CIP
rear panel
JDIO1–6 1 1034 orange
JDIO1–16 1 1035 green/white
JDIO1–7 1 1036 blue
JDIO1–17 1 1037 blue/white
JDIO1–8 1 1038 white/black
JDIO1–18 1 1039 black/red
JDIO1–9 1 1040 red/black
JDIO1–25 1 group 1 return blue/red
JDIO1–26 1 group 1 return red/green
JDIO1–10 2 1041 green/black
JDIO1–1 2 1042 black
JDIO1–11 2 1043 orange/black
JDIO1–2 2 1044 white
JDIO1–12 2 1045 blue/black
JDIO1–3 2 1046 red
JDIO1–13 2 1047 black/white
JDIO1–4 2 1048 green
JDIO1–19 2 group 2 return white/red
JDIO1–20 2 group 2 return orange/red
Pin 1
Pin 9
Pin 10
Pin 18
Pin 26
Pin 19
