Chapter 5 Optional DIO Cables
Adept MV Controller User’s Guide, Rev. B 127

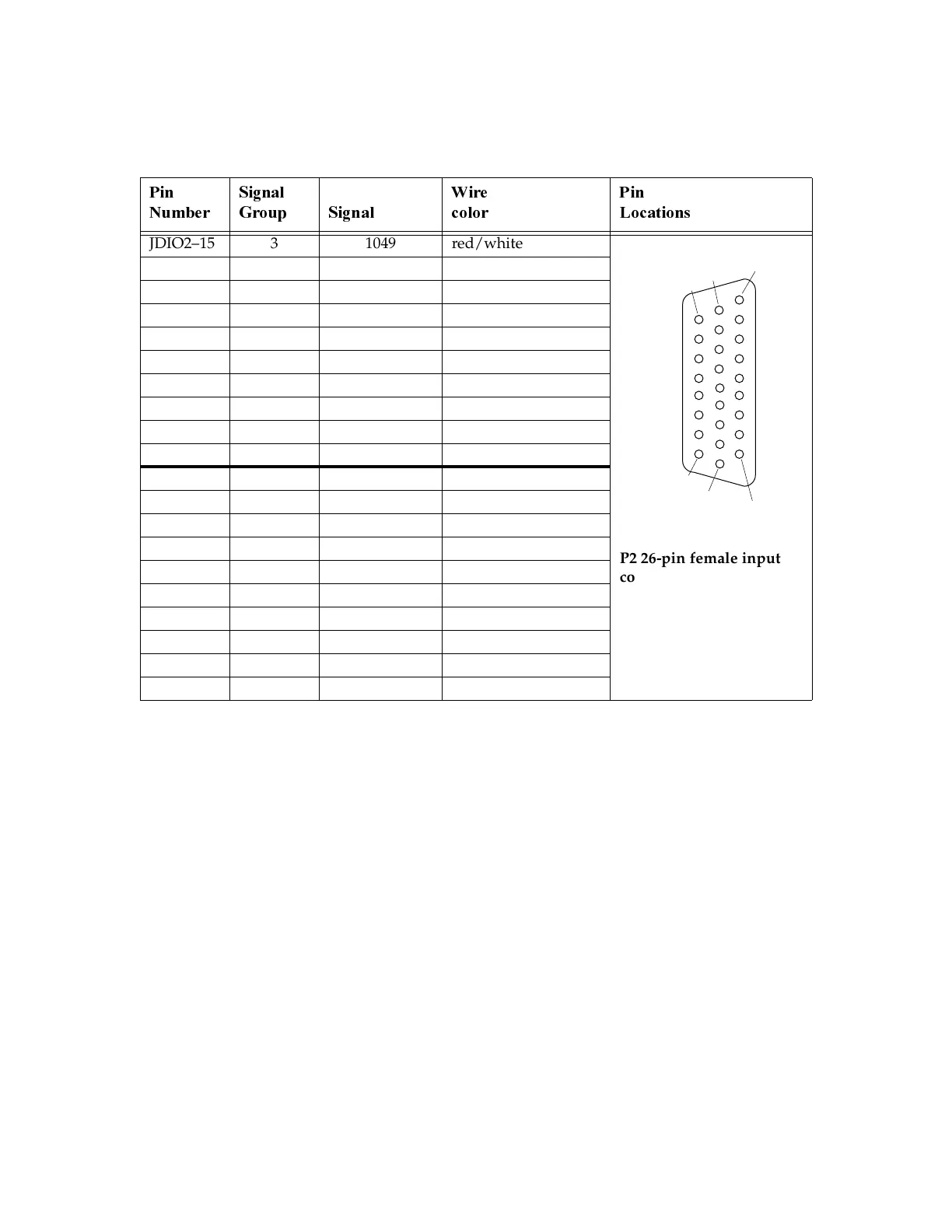

Table 5-11. JDIO2 Input Cable Pin Assignments
JDIO2–15 3 1049 red/white
P2 26-pin female input
connector on CIP rear
panel
JDIO2–6 3 1050 orange
JDIO2–16 3 1051 green/white
JDIO2–7 3 1052 blue
JDIO2–17 3 1053 blue/white
JDIO2–8 3 1054 white/black
JDIO2–18 3 1055 black/red
JDIO2–9 3 1056 red/black
JDIO2–25 3 group 3 return blue/red
JDIO2–26 3 group 3 return red/green
JDIO2–10 4 1057 green/black
JDIO2–1 4 1058 black
JDIO2–11 4 1059 orange/black
JDIO2–2 4 1060 white
JDIO2–12 4 1061 blue/black
JDIO2–3 4 1062 red
JDIO2–13 4 1063 black/white
JDIO2–4 4 1064 green
JDIO2–19 4 group 4 return white/red
JDIO2–20 4 group 4 return orange/red
Pin 1
Pin 9
Pin 10
Pin 18
Pin 26
Pin 19
