Upgrade Receiver
Select file downloaded from Ag Leader website
Select .fw3 file from USB drive.
Press to accept.
Display will upgrade receiver.
Press to return to previous screen
without updating receiver.

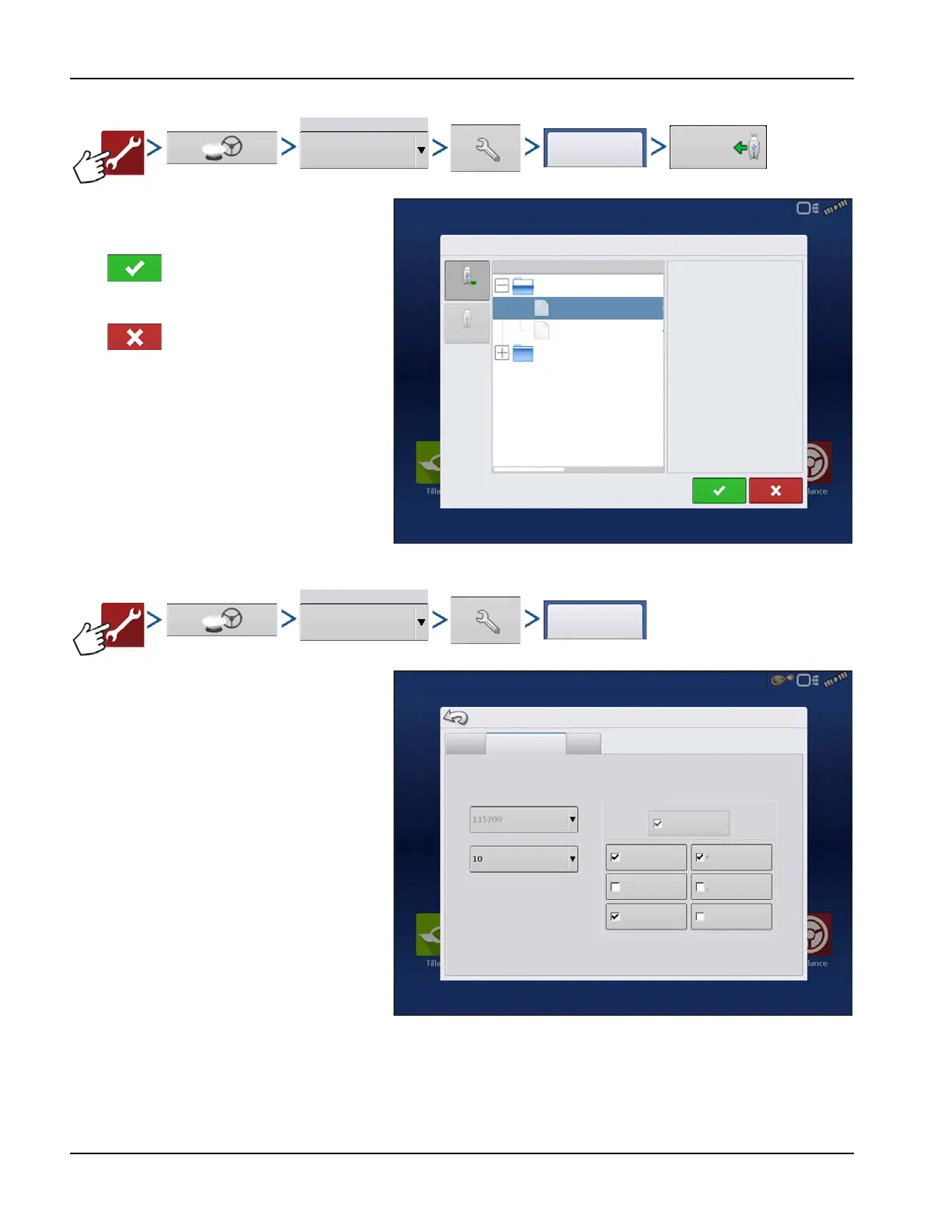

Serial Port Settings
Port A tab
The Serial Port Settings screen is the place where
GPS output can be adjusted. The appearance of
the Serial Port Settings screen varies depending
upon GPS receiver model.
Output Baud Rate—Displays the speed at
which the receiver communicates with the
display. For optimal performance, the GPS baud
rate is set at 115200. Output baud rate set
automatically with GPS 6000/6500 receivers.
GPS Position Rate (Hz)—Represents the
cycles per second (shown in Hz) that the display
receives position information from viewable
satellites (10 Hz recommended).
NMEA Messages—These checkboxes
represent various communication protocols or
formats that have been set by the National
Marine Electronics Association (NMEA), and used
in information “strings” or sentences output by
the GPS Receiver. At present, the display only requires two NMEA Message formats: GGA and VTG.
• GGA: position in longitude and latitude.
• VTG: ground speed
• GSV, GSA: required to view the Satellite Plot, but are not required for GPS information.
