Map Legend tab
Press the Map Legend button at the top of the Mapping toolbox, and the Legend appears, either for rate, coverage, seed
monitoring, previous operations, or other.
Map Toolbox
Legend Settings

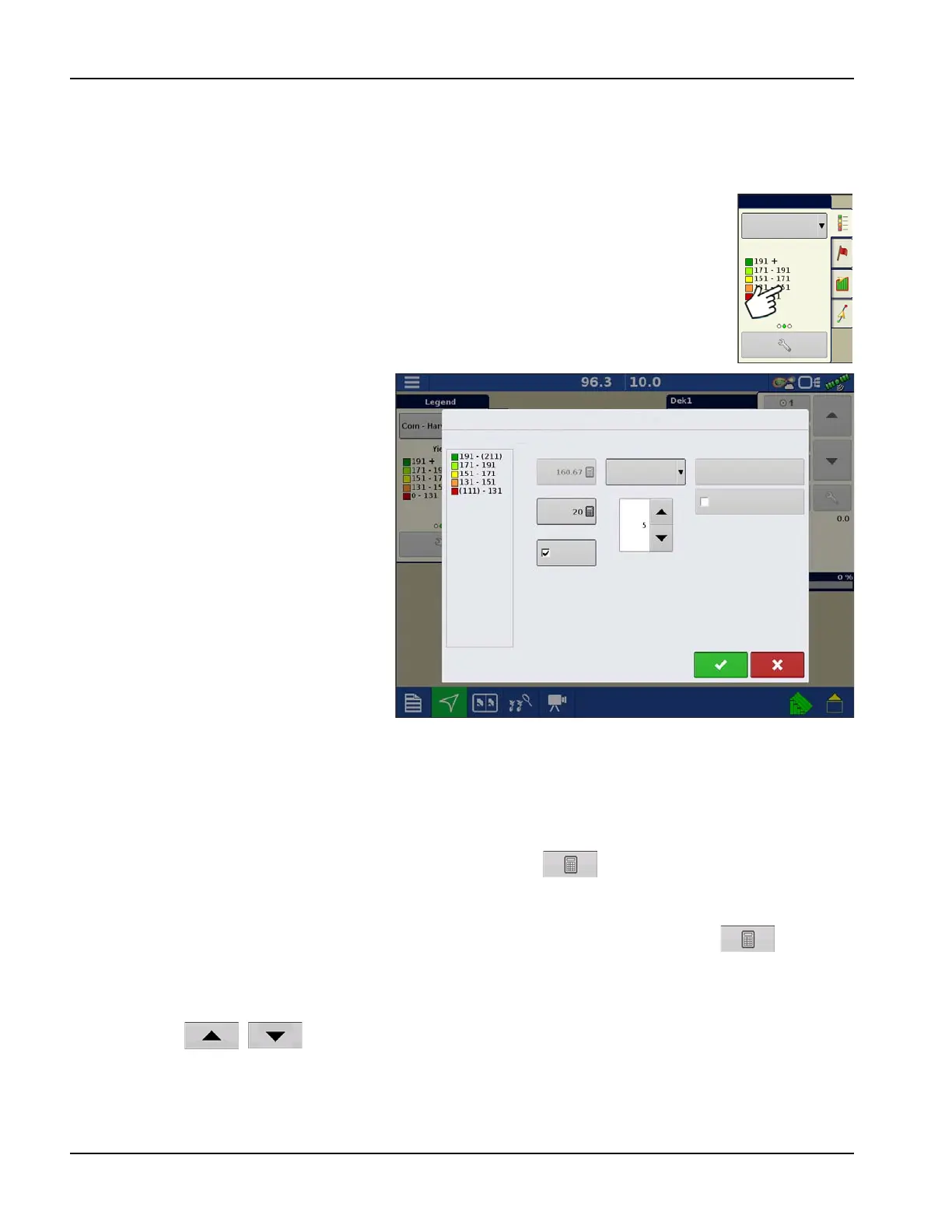

The Legend Settings screen allows changes the default legend. On the map legend tab, press
anywhere on the legend and the legend settings screen appears.
÷
NOTE!
• The Legend Settings screen can also
be accessed by pressing the Edit
Legend button on the Setup screen’s
Product tab.
• Legend settings changes that are
made at the Legend Settings screen
will affect all regions.
The Legend Settings screen includes the
following items:
• Attribute
Appears at the top left of the Legend Settings screen. Attributes shown for Harvest include Yield and Moisture. The
Rate attribute is shown for Planting and Application operations. Adjust the color scheme, spacing and ranges as they
appear on the map screen, by using the buttons described below.
• Average
The Average button changes the average rate for the legend. Press to specify the average of the ranges
shown on the map legend.
• Range Spacing
The Range Spacing button changes the difference between the rates in one color range. Press to edit the
legend range spacing value, which is the total number of units represented by a particular color.
• Ranges
The Ranges / change the number of range increments displayed in the legend.
• Color Scheme
The Color Scheme can be modified by using the drop-down list. Choices include the following:
• Green-Yellow-Red
Save as Product Legend
Reset to Default
