• GLL, ZDA, RMC, MSS: Leave these other NMEA message formats unchecked, unless connected to a third-party
monitor and have been directed to do so.

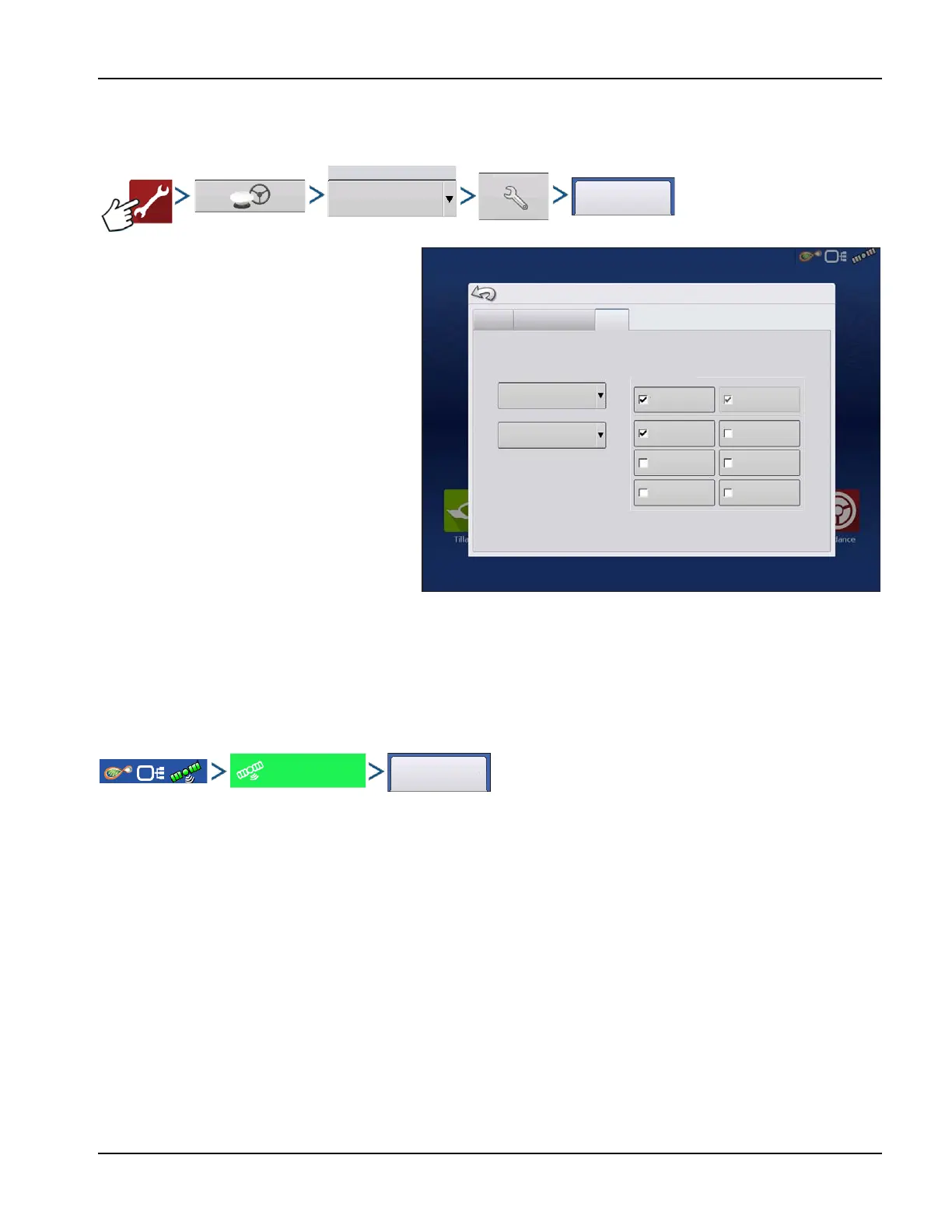

Port B tab
The appearance of the Port B tab is similar to
Ports A.
• GGA(Legacy) —Shortens the decimal
precision of the GGA message for
connection to legacy equipment.
• GGA(Position) —Gives increased
precision to the GGA message. Most new
displays require this turned on.
GPS Information
To access diagnostic information about the GPS signal, press the GPS (Status Indicator) button that appears in the in the
upper right hand side of the Status Bar. GPS Information then appears on General, Receiver, and Differential tabs.
Information on these GPS Information screens is described on the following pages.
