GPS/Steering Setup
101
PN 4004700–ENG Rev. K
÷
NOTE!: The Correction Frequency diagnostic does not show for WAAS connections.
Correction Age—The length of time since the GPS receiver has obtained its last update.
÷
NOTE!: The age of the DGPS corrections (as delivered to the GPS receiver) will vary from one second to several
seconds, depending on the characteristics of the individual satellite signals.

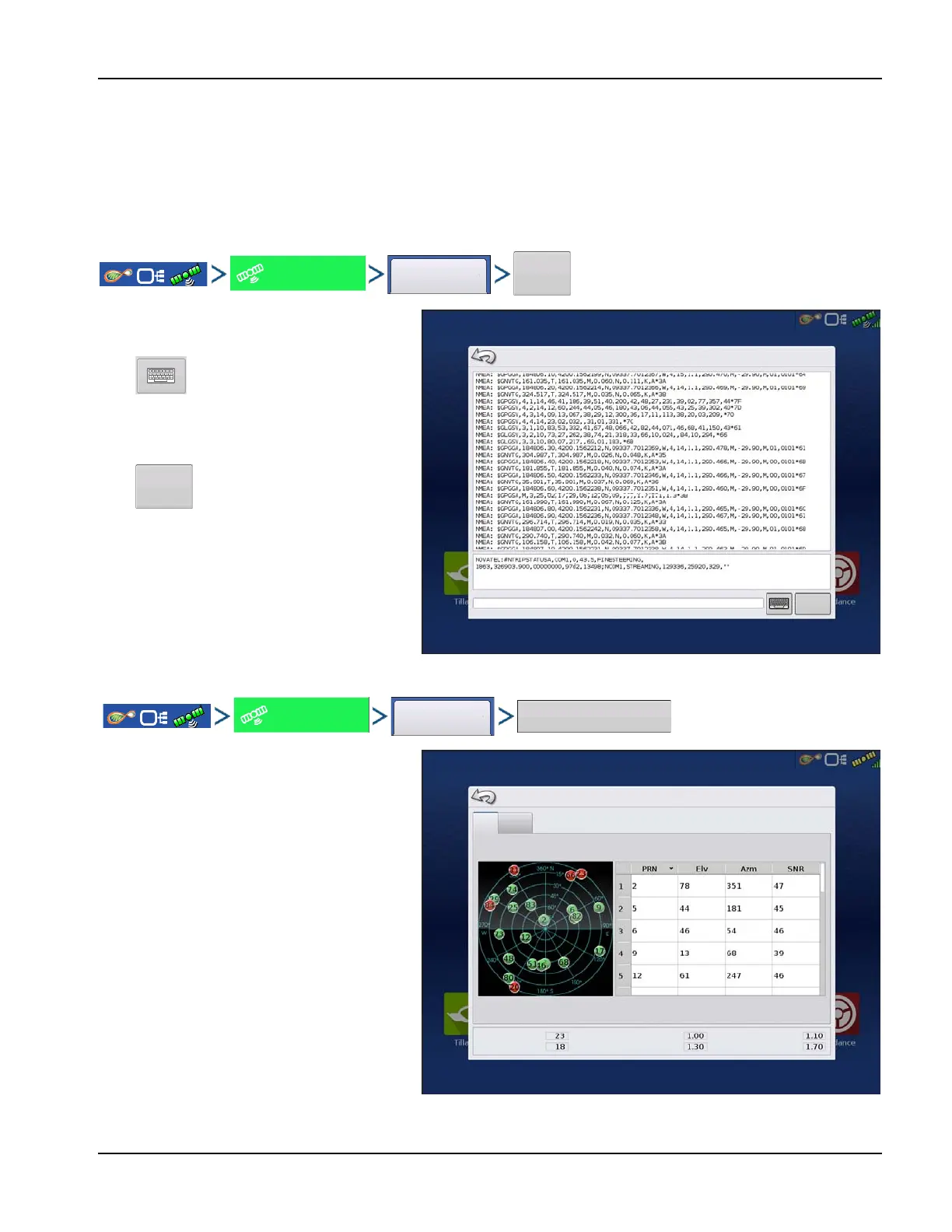

GPS Messages
View the NMEA messages coming from the
receiver.
Press and use keyboard screen to write
a command to the receiver. Only send
commands to the receiver when directed to by
technical support.
Press to send message to the receiver.
Satellite Plot
The Satellite Plot feature can display both a plot
or a graph. The information on these screens is
used as an advanced diagnostic tool for GPS
satellite availability. In the event of GPS
availability issues, technical support may request
to view these screens.
Satellite Plot - Graph
Satellite Plot requires GSV and GSA NMEA
messages to be turned on from the GPS receiver.
Graphically shows satellite PRN’s and SNR.
Satellite Plot
Plot
Graph
Satellites in View
Satellites Tracked
Corrections Age (sec)
VDOP
HDOP
PDOP
To Next Page
