Auxiliary Assignment—assign implement
functions to ISO compatible inputs.
Clear Universal Terminal—Allows operator to
clear the Object Pools sent to the display from
the implement WSM. After the object pools have
been cleared, the next time the implement is
connected the object pools will be transferred
from the implements WSM to the display again.
When this button is pressed, a warning dialogue
box appears with the following message:
“All Universal Terminal interfaces saved in the
display will be cleared. Do you want to
continue?”
Auxiliary Assignment
Assign implement functions to ISO compatible
inputs.
The number of functions and inputs shown on
the Auxiliary Map screens will vary depending
on the implement and input devices connected
to the display.
UT Alarms and Trouble Codes
If the display receives an active trouble code, the
Universal Terminal Alarm will appear in the
Status bar at the top of the screen.
When an alarm is activated on the UT, the display
will indicate the alarm by flashing “Universal
Terminal Alarm” in the status bar.
Alarms are acknowledged and cleared by
pressing .
This button is only present when a Universal
Terminal alarm has been activated.

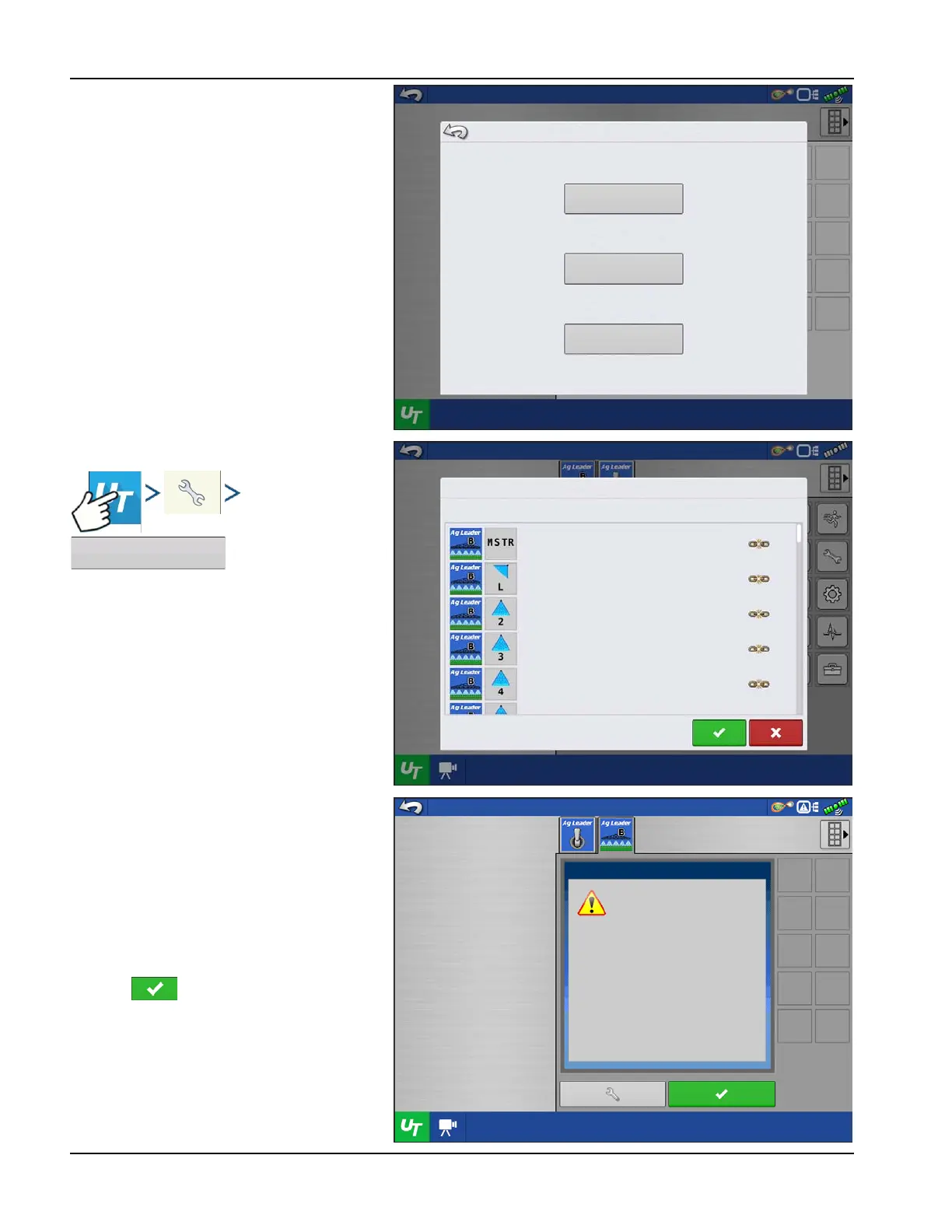

Universal Terminal Settings
Open...
Auxiliary
Assignment
Clear Universal
Terminal
Auxiliary Assignment
Function
Input
Liquid Module
Rate not responding
Warning
To Next Page
