Configurations
29
PN 4004700–ENG Rev. K

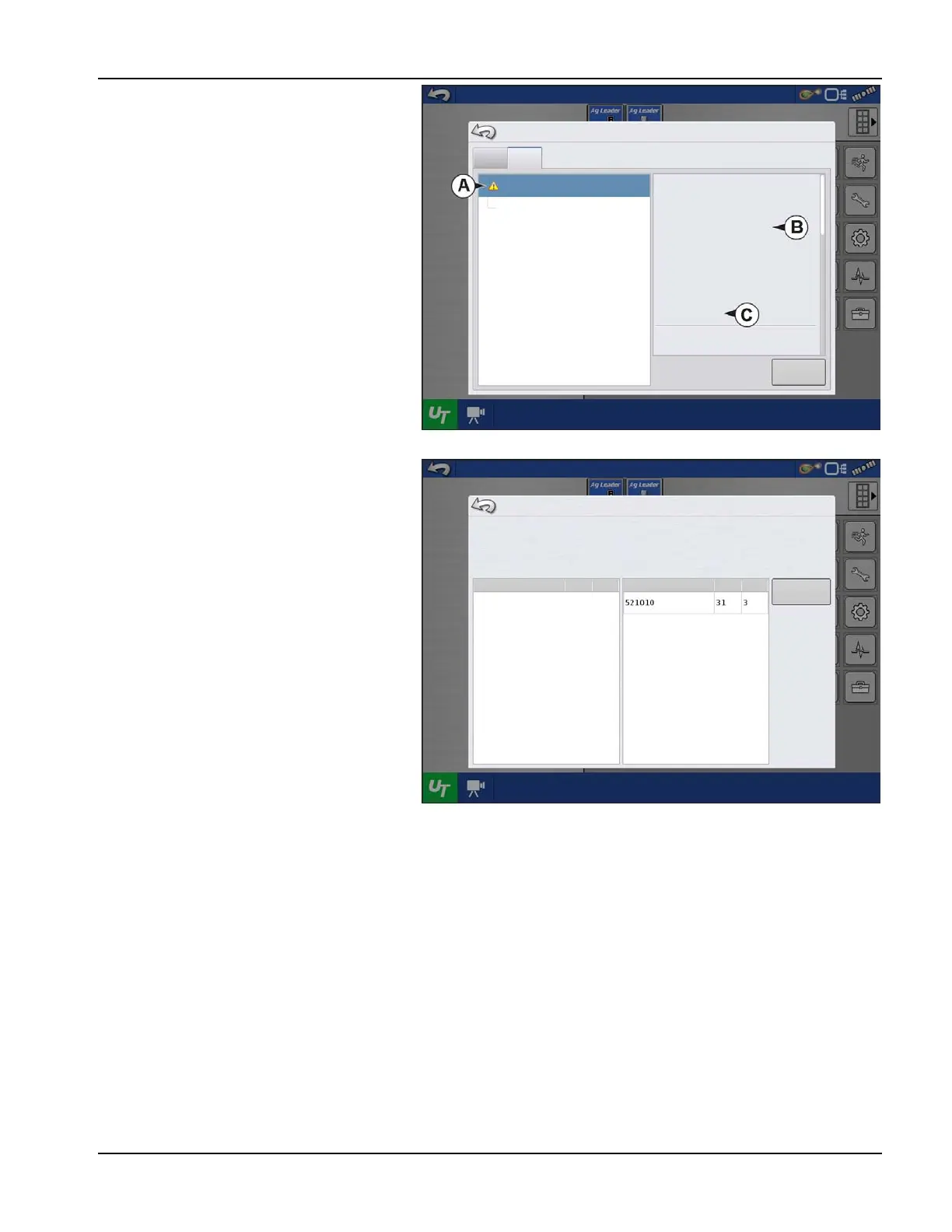

The Devices screen displays the following
information:
A. Caution icon indicates module has active
trouble codes (DTCs)
B. Device Class
C. ECU Serial Number
D. UT Manufacturer, name and code
Pressing the Diagnostics button on the Devices
screen brings up the ISO Node Diagnostics
screen which shows the following information.
SPN— “Suspect Parameter Number” = Error
Number
FMI—“Fault Mode Indicator” = Error State.
OC—“Occurrence Count”
DTC—Diagnostic Trouble Code
This is a combination of the SPN and the FMI (for
example 522102.12).
Cross-reference DTC in equipment
manufacturer’s operator manual for description
of error.
Devices
CAN Name: C8000000C2027C0
CAN A
CAN B
Self Configurable: Yes
Industry Group: Agriculture and Forestry
Device Class: Sprayers
Class Instance: 0
Function: 128
Function Instance: 0
ECU Instance 0
Identity Number: 10176
Manufacturer Code: 97
Ag Leader
Technology, Inc
Device Name: AGL Sprayer
Structure Label: AGLfa4d
Diagnostics
130 Service Tool
198 WSM 7-Section Aux Input
128 ISOBUS Liquid Product Module
Generic ISOBUS
129 Task Controller
ISO Node Diagnostics
ECU ID: 4002861*2150010176*Implement*Control*Module*ALTECH*5.3.0.0*
Clear Previous
Errors
Software ID: ALTECH,4002612;1.8.0.0;4002609;1.1.0.0.*
Product ID: 4002861*ALTECH*WSM Liquid Rate Control*
Active Errors
Previous Errors
SPN
FMI
OC
SPN
FMI
FMI
521010
31
3
