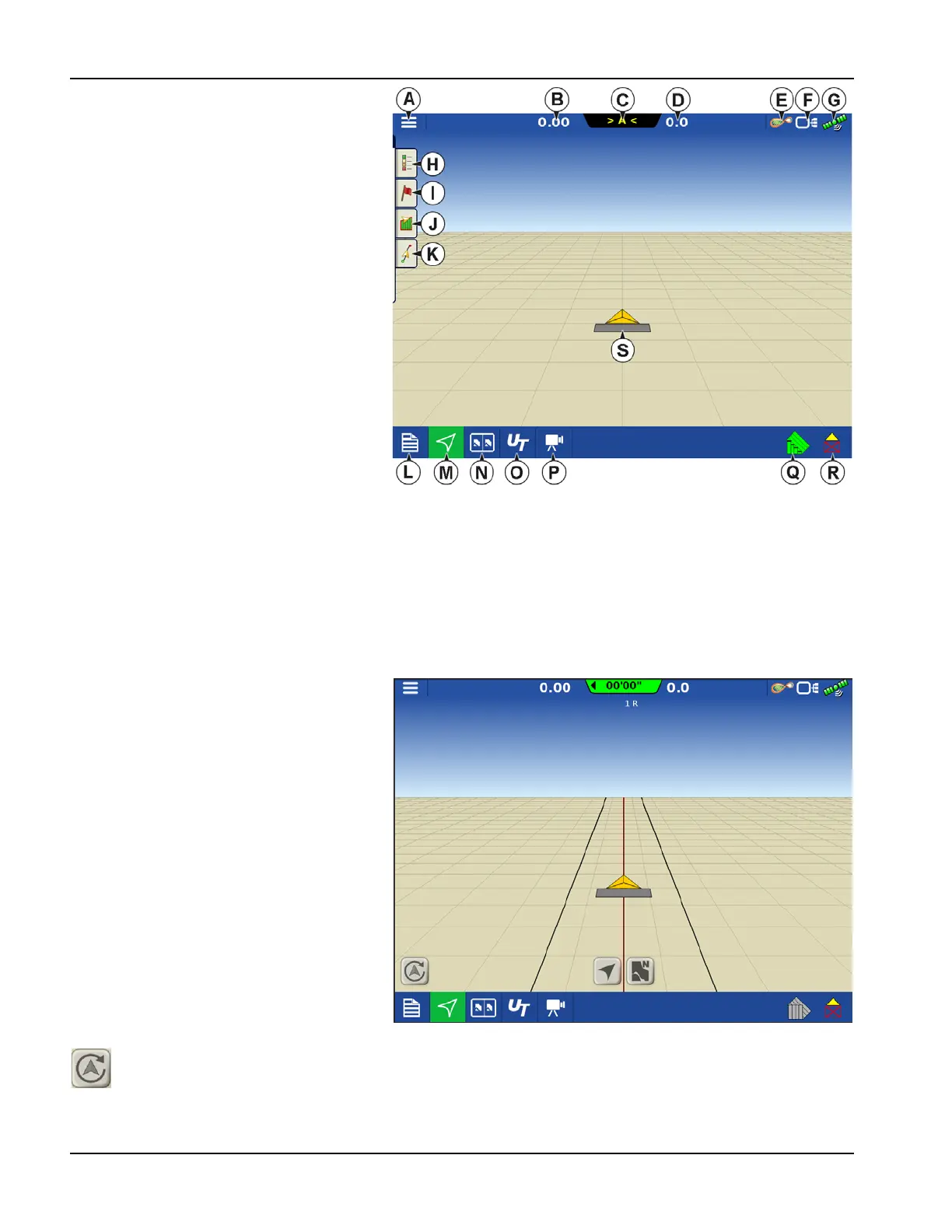

Map screen
A. Menu
B. Area Covered
C. Path Indicator
D. Speed
E. AgFiniti® Status
F. Diagnostics
G. GPS Signal Indicator
H. Legends
I. Markers
J. Field Operations
K. Guidance
L. Event Summary
M. Map Views
N. Split-Screen (InCommand™ 1200 Only)
O. Universal Terminal
P. Video button
Q. AutoSwath
R. Logging
S. Vehicle Icon
Heading Detection
InCommand displays have built in functionality
to establish and keep the correct direction of
travel when using GPS receivers that do not have
a trusted heading source from an internal
compass or steering controller. For this
functionality to work the user must first establish
a forward direction of travel. The direction of
travel is set automatically in the background,
after acquiring GPS, based on the vehicles first
movement after starting an event.
Any time the vehicle or icon is in the reverse
direction and data is being logged, an audible
alarm will sound until the vehicle/icon is driving
in the forward direction again.
Heading Change Button
Any instance in which the vehicle icon appears to be upside down or rotated 180 degrees, it can be fixed with
the Heading Change button. The Heading Change button can be accessed by tapping anywhere on the center
of the mapping screen and pressing the icon on the lower left corner of the screen. Data logging must be turned
off for the Heading Change button to work.
