Guidance and Steering
113
PN 4004700–ENG Rev. K

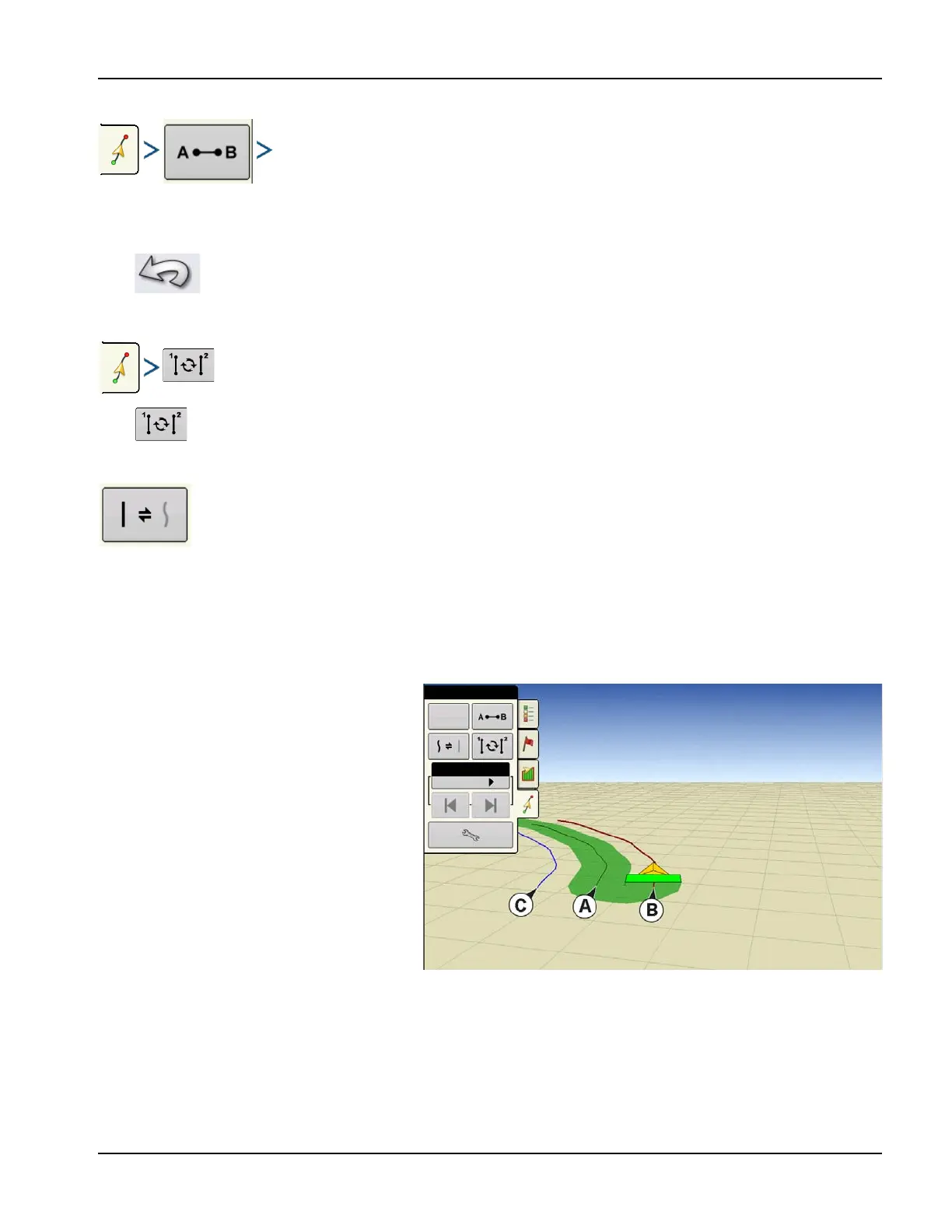

Inputting Paths into SmartPath
AB Manager
The AB Manager screen allow user to create, edit, remove, and load paths into SmartPath.
Create up to 10 different AB lines within SmartPath.
• Press the Back button to close the screen.
Cycle between Loaded Paths
Press to cycle through the paths loaded in SmartPath.
Driving onto the Projected Path, system guidance uses this as the Followed Path.
Once the AB line is created, switch between the AB line and SmartPath patterns by pressing the
AB/SmartPath toggle.
The Mapping screen changes its appearance to Perspective View, and SmartPath settings are shown in the Mapping
toolbox. Drive along path to create.
÷
NOTE!: The display will not create A point with SmartPath, unless mapping a Straight AB line within it.
After turning around on first pass, the system guidance will follow a maroon-colored line parallel to previously-driven pass.
Continue using SmartPath, the map screen will
display three lines:
• (A) The Base Path
Appears as a black line, is the initial
SmartPath created on the first pass.
• (B) The Followed Path
Appears as a maroon-colored line, is the
path that vehicle is currently using.
• (C) The Projected Path
Appears as a blue-colored line on the
opposite side of the Base Path and is an
alternate path parallel to the Base Path. The
system guidance created this path while
the base path was created.
This is the path that vehicle would have taken if turned in the opposite direction.
÷
NOTE!
• The Projected Path and Base Path both remain in display memory, until the Reset button is pressed without
saving the SmartPath pattern.
• Pressing the Save button saves all the SmartPath passes within the display’s memory for future use.
Nudge: 38 cm
Total: 0 cm
Smart
Reset
