Configurations
13
PN 4004700–ENG Rev. K

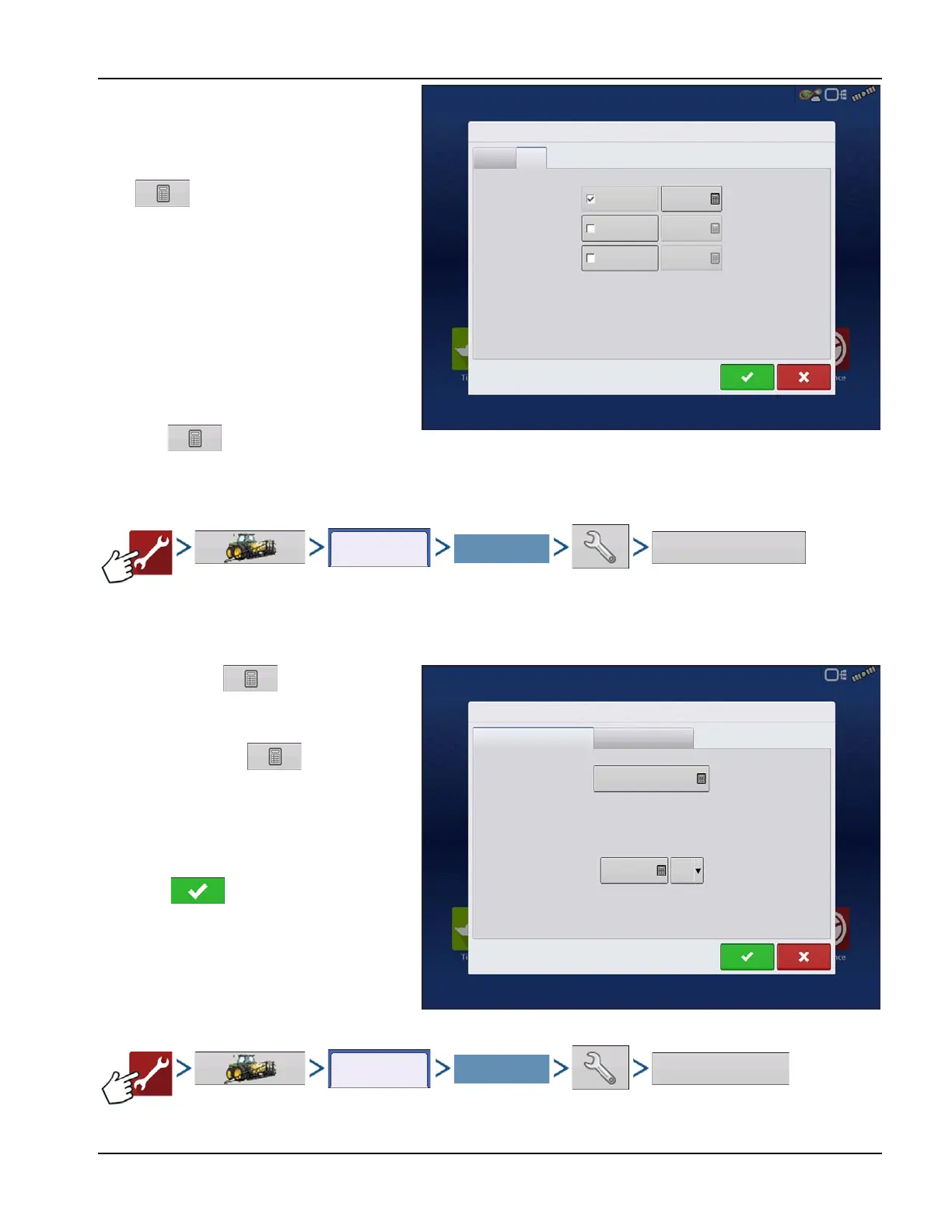

Hitch Settings tab
The Hitch tab is used to enter in the distance
from three different mounting positions on the
tractor to the rear axle.
Press to enter these values in if using
the hitch point.
÷
NOTE!: Accuracy when measuring for a
specific setting is essential to ensure
proper machine performance.
Mount Tab Settings
The Mount tab will only be available when using
a Self-Propelled sprayer.
Enter in the application location from the rear
axle. Press to enter in the distance and
the drop-down box to select if it is in front or behind of the axle.
Implement Offsets
Implement offsets are used to accurately portray how equipment is setup and operating. An implement offset may be
needed to account for incorrect guess rows and minimizing skip/overlap.
Section Offsets
• Press the first to enter the
distance that the application point is
located from the hitch point.
• Press the second to enter the
distance from the mid-point of the swath
section to the machine’s centerline. Select
to the left/to the right to indicate the
direction the swath section is located from
the vehicle centerline.
• Press when finished.
• Multiple tabs will appear across the top if
different controller types are used in the
configuration.
Speed Input Settings
This will show speed in the upper blue bar of the Map screen, when operating.
Vehicle Offsets: Tractor
Enter Distance from Rear Axle to the Following Locations
Antenna
Hitch
Rear Drawbar
Rear Lift Arms
Front Lift Arms
0 in
0 in
0 in
Select Your Specific
Configuration
Implement Offsets: 24row
Forward/Backward Distance from Hitch
Planting with SeedCommand
Liquid with DirectLiquid
Left/Right Distance from Centerline
18 ft Behind
0
Left
Your Specific
Configuration
