Active Estimated Error—Estimated error of
the active differential source.
Active Differential—Indicates the active
differential source and will vary depending on
the current state of StableLoc.
Selected Differential—Indicates the selected
differential source (the source selected in the
GPS setup).
StableLoc Error Limit—Indicates the error
limit selected in the GPS setup.
Device Name—Indicates the connected Relay
Module.
Software Version—Software version of the
radio/modem within the Relay Module.
Manufacturer—Manufacturer of the Relay
Module.
Serial Number—Serial number of the Relay Module.
Signal Strength—Shows cellular signal strength.
Mobile Directory Number—Relay CDMA/GSM Only, used for troubleshooting
Mobile Subscriber ID—Relay CDMA/GSM Only, used for troubleshooting
NTRIP Connect/Disconnect—Connect or
Disconnect from NTRIP Source.
RTK Convergence—Three states to indicate
the current convergence level.
TerraStar Convergence Limit—Maximum
allowable error for TerraStar accuracy. When
estimated error is larger than convergence limit,
system will not allow Autoswath and steering.
Subscription Valid—Notes if receiver as a
currently active TerraStar Subscription
Valid Unit—End date for current subscription
Subscription Type—Shows active
subscription type. “Term” subscriptions are a
subscription type with an end date.
Position Status—Shows current state of
TerraStar signal.
Red Arrows, pointing out—The device is not currently converging on RTK. This may indicate a RTK link
problem.
Green Arrows, pointing in—The device is currently converging, but not ready for RTK fix.
Green Bull’s-eye—The device is converged on RTK.

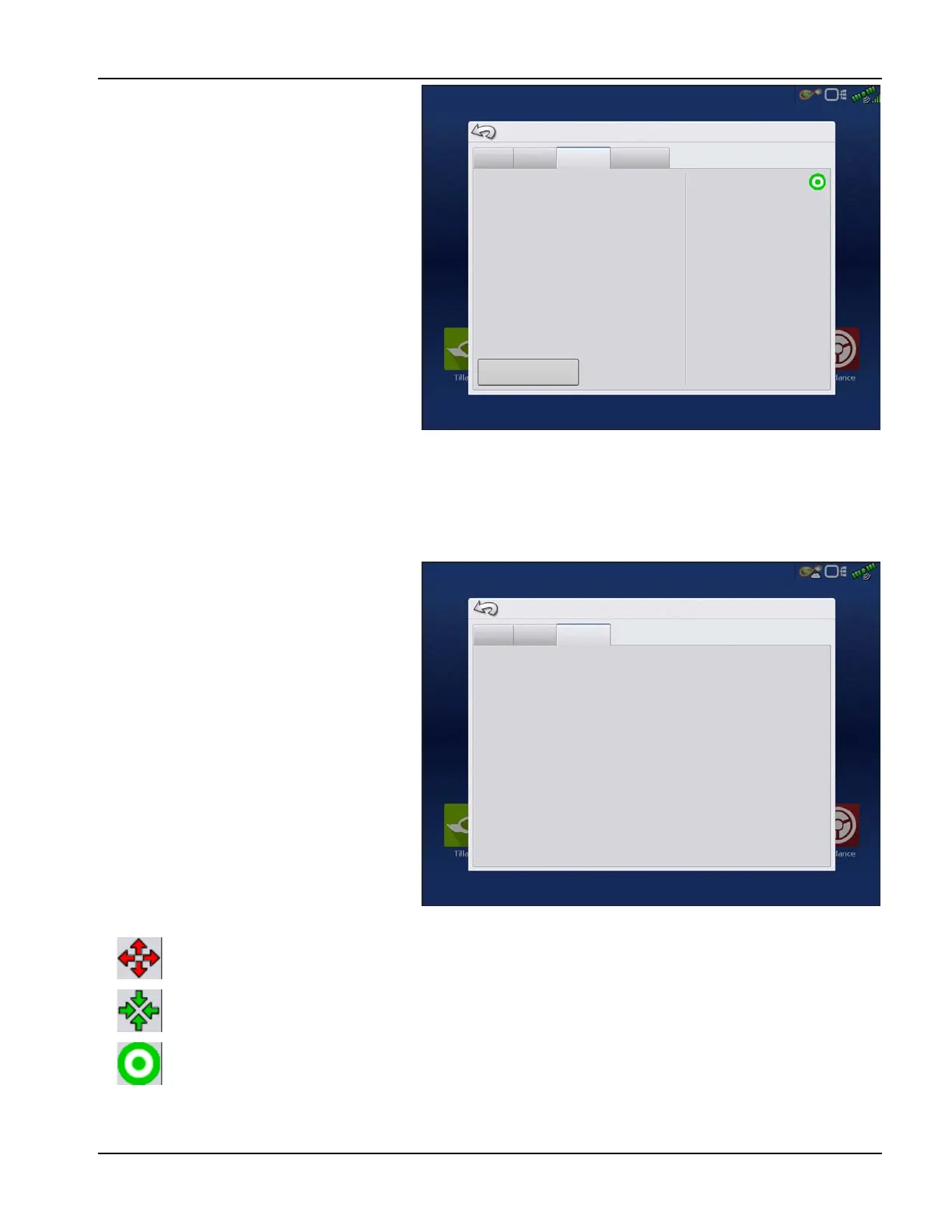

GPS Information
General
Receiver
Differential
Base Station
Active Estimated Error
Active Differential:
Selected Differential:
Software Version:
Manufacturer:
Serial Number:
Signal Strength:
Mobile Directory Number:
Mobile Subscriber ID:
StableLoc Error Limit:
Device Number:
0.4
RTK Fixed
RTK
4
Relay CDMA
1.000
Teli t
270113182611777958
-51 dBm
210009722493807
NTRIP
Disconnect
RTK Convergence:
GPS Information
General
Receiver
Differential
Active Estimated Error
Active Differential:
Selected Differential:
Subscription Valid:
Valid until:
Subscription Type:
Position Status:
StableLoc Error Limit:
Terrastar Convergence Limit:
15.7 in
Terr aStar
Terr aStar
20 in
18 in
Yes
6/18/18
Te rm
Solution computed
