Communication Settings

125

NetLinx Studio - Instruction Manual

5. If the selected IP Address is new, the New TCP/IP Setting dialog is presented, indicated the selected IP Address. Fill

in the Description, User Name and Password fields as necessary (FIG. 197).

6. Click OK to save changes, close this dialog and return to the Communication Settings dialog. The new Master’s IP

Address is now indicated in the List of Addresses.

7. With the newly added Master selected, click Select. This updates the Current Platform-Transport Selected window

to indicate that the newly added and selected Master is now the current communication configuration (FIG. 198).

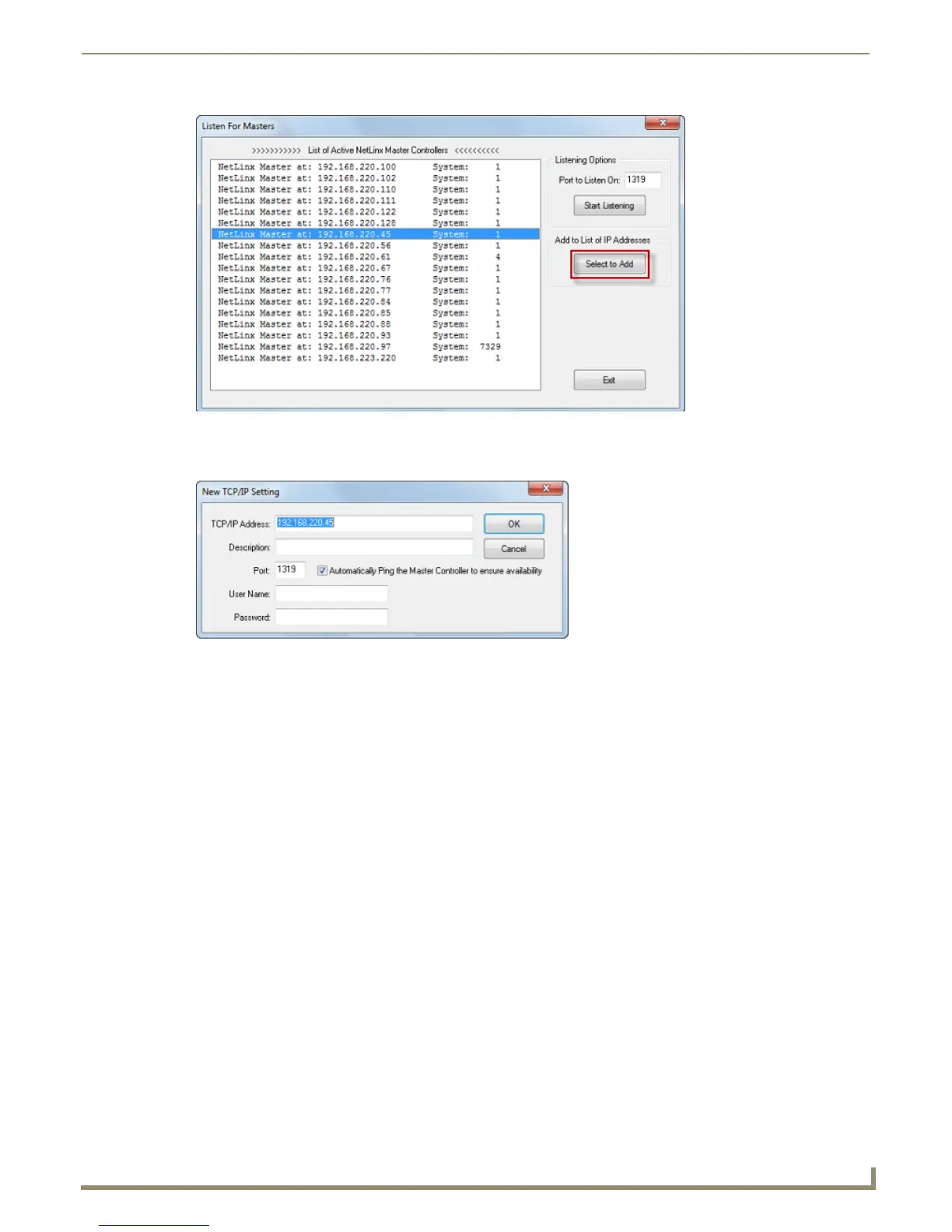

FIG. 196 Listen For Masters dialog - Master Selected

FIG. 197 New TCP/IP Setting dialog
