Chapter 7
7.2 Wired hybrid targets

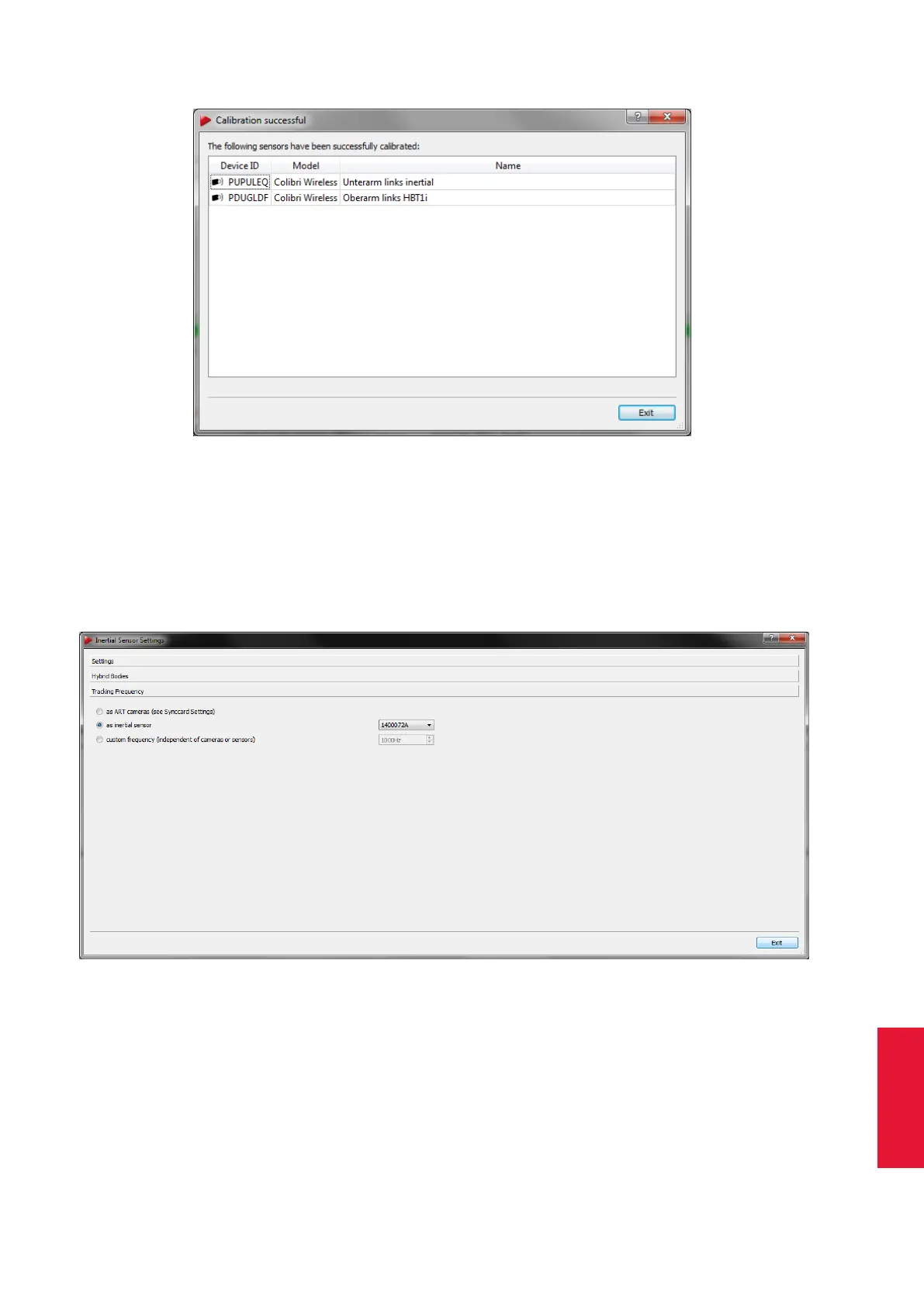

Figure 7.14: Inertial Sensor Calibration - Result Window Successful
7.2.5 Selecting the pulse generating source
There are several independent pulse generating sources available in a hybrid tracking
setup (i.e. combined optical & inertial tracking). Therefore it is necessary to select the
appropriate one that drives the tracking frequency.
Figure 7.15: Hybrid Tracking Settings - Inertial Sensors available (license necessary)
You can switch between the following sources by ticking the corresponding radio button in
the subdialogue Inertial Sensor Setting Tracking frequency:
• ’as ART cameras’: The ART controller’s synccard is used. The tracking frequency
is set according to the Synccard Settings menu. Please refer to the corresponding
chapters 8.5.2 on page 151.
119
