• no one can stumble over the cords,
• the cords cannot be damaged,
• the cords cannot damage the cameras due to mechanical strain,
• the line of sight of the cameras is not obstructed.
Inappropriate cabling may pose a serious hazard to health and safety.
Cable ducts or fixings should be used and a strain relief should be
installed!
Please refer to chapter 5.2 on page 60 for more information.
4.3 TRACKPACK/E
Keep a distance of min. 20 cm when operating the camera ! The
camera is assigned to the Exempt Group according to IEC62471-1 and
therefore poses no risk or hazard to the human eye or skin at this dis-
tance.
Description The TRACKPACK/E infrared camera is intended for working environments
with distances between camera and markers of up to 4.5 metres. With its 3.5 mm lens a
large field of view (FoV) is covered. Refer to A.1 on page 236 for the respective FoV.

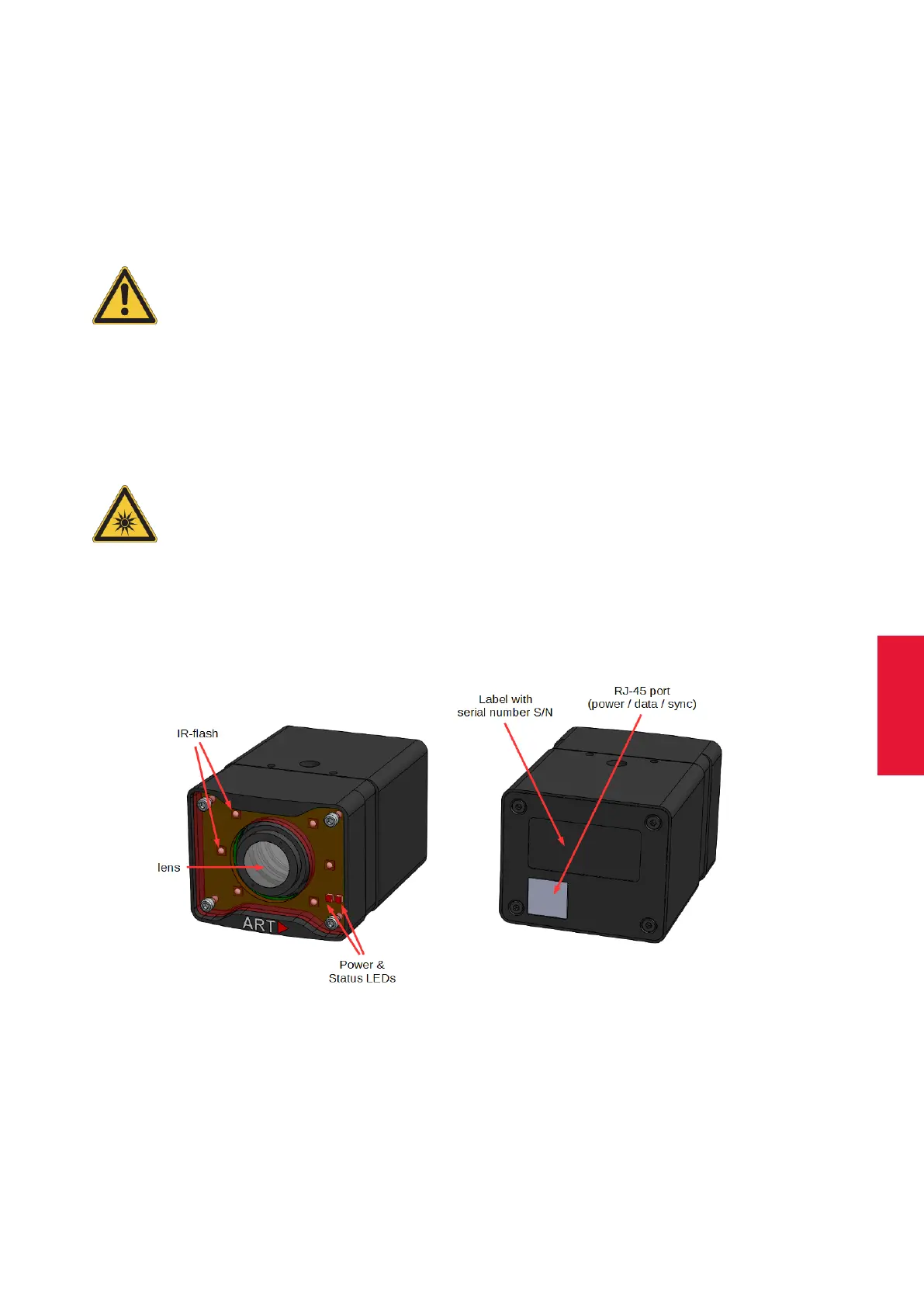

Figure 4.6: Camera TRACKPACK/E
Mounting The TRACKPACK/E cameras are optimized for a predefined range of mea-
surement volumes. System operation in smaller or bigger measurement volumes can
lead to reduced accuracy. The measurement volume can be adjusted within certain limits
