Chapter 4
4 ART Tracking Cameras
4.1 ARTTRACK5
Keep a distance of min. 20 cm when operating the camera ! The
camera is assigned to the Exempt Group according to IEC62471-1 and
therefore poses no risk or hazard to the human eye or skin at this dis-
tance.
Description The ARTTRACK5 infrared camera is intended for working environments
with distances between camera and markers of up to 7.5 metres. By default the ART-
TRACK5 is equipped with a 3.5 mm lens. Depending on the application and the setup the
ARTTRACK5 can be equipped with other lenses (i.e. with different focal lengths). Refer
to A.1 on page 236 for a list of available focal lengths and the respective FoV.

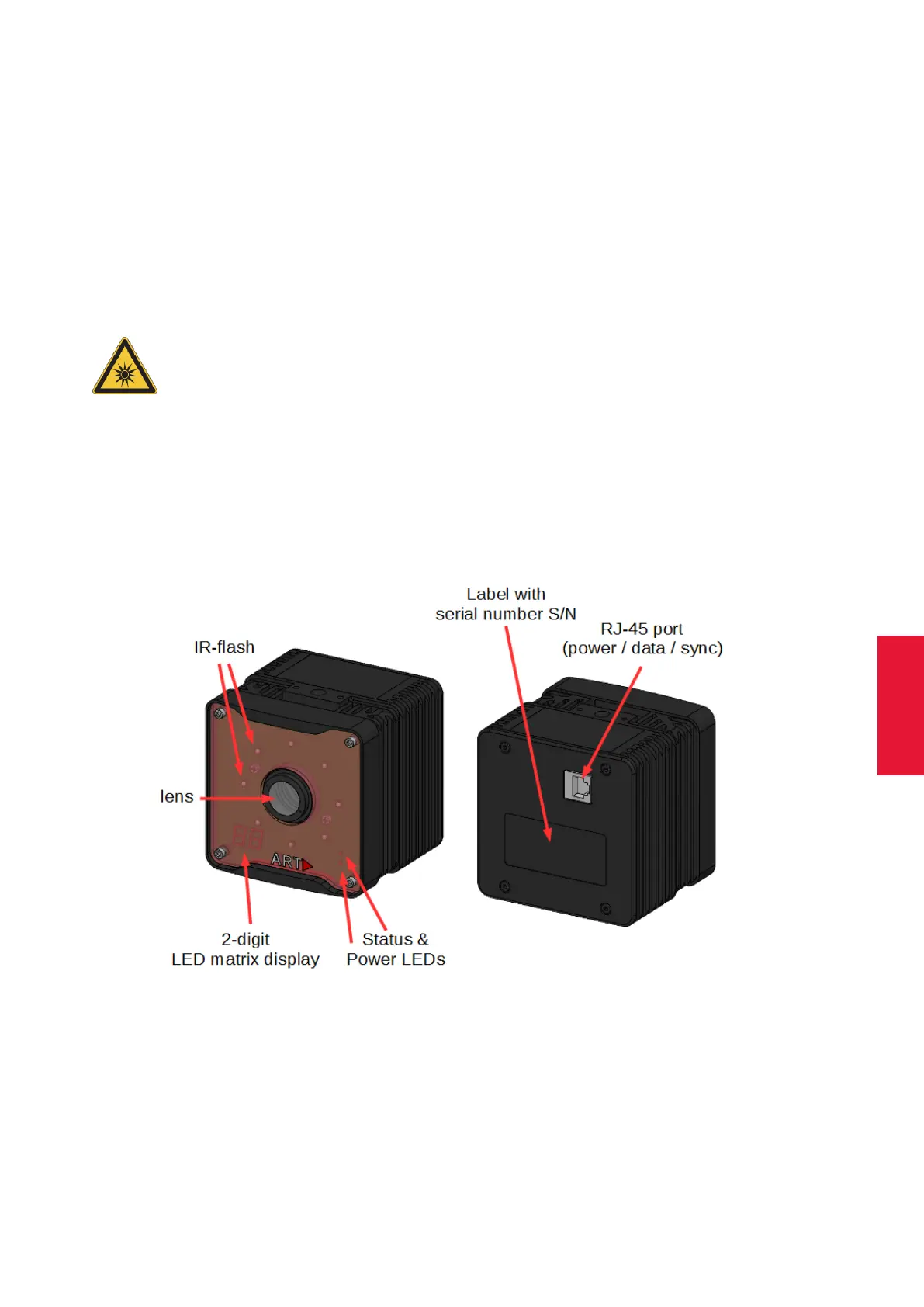

Figure 4.1: Camera ARTTRACK5
Mounting The ARTTRACK5 cameras are optimized for a predefined range of measure-
ment volumes. System operation in smaller or bigger measurement volumes can lead to
reduced accuracy. The measurement volume can be adjusted within certain limits simply
29
