Chapter 6
6.4 Fingertracking
• the Hand ID and Finger ID to address each finger of each hand individually
• a value denoting the strength of the feedback
Please refer to chapter B.3.1 on page 268 for details.
6.4.1 Standard Fingertracking Hand Targets

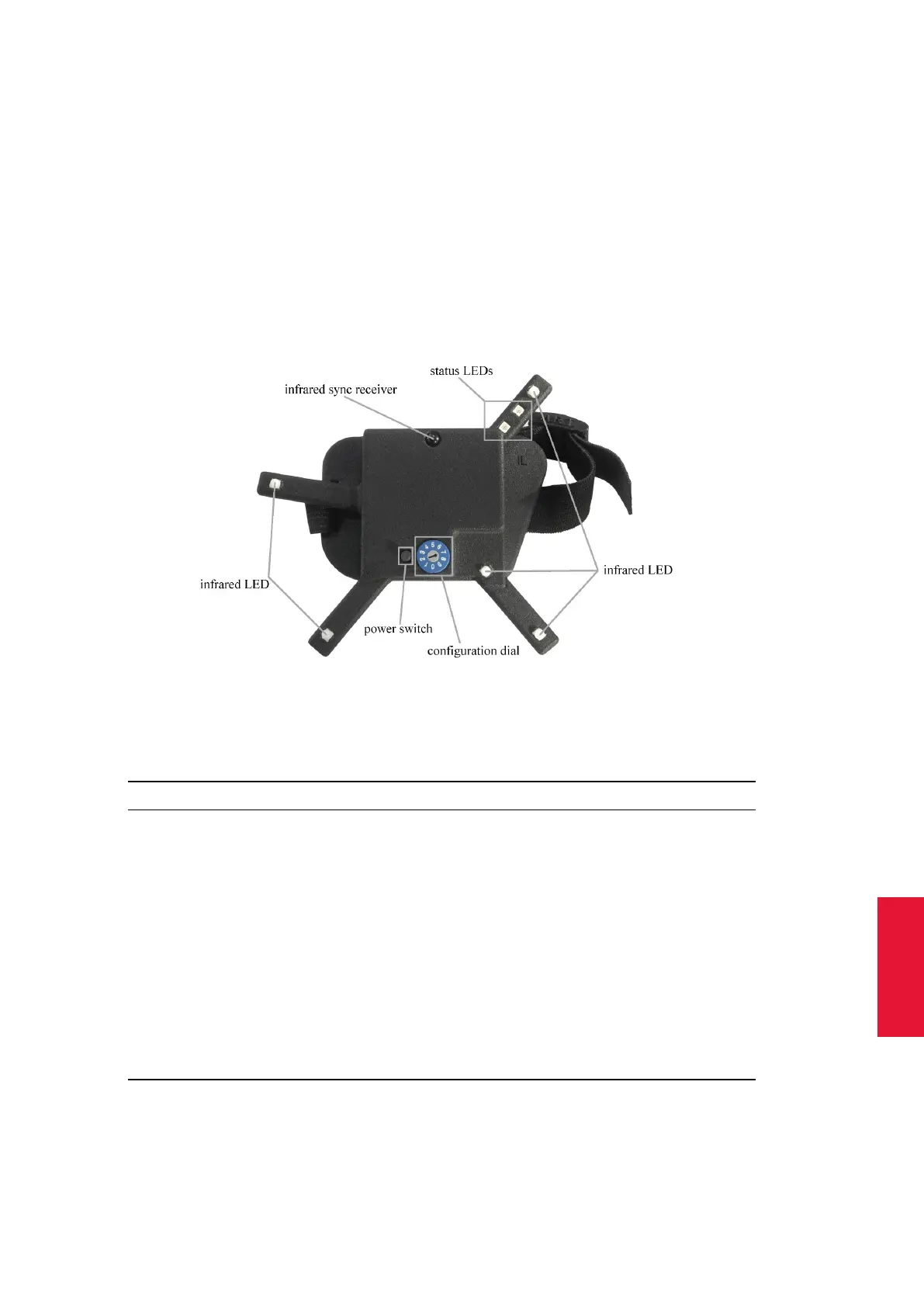

Figure 6.13: Standard Fingertracking hand target
Top View Event Description
status LEDs
green LED continuously → synchronization received and
tracking
red LED continuously → no synchronization received
red and green LED flashing → battery low or discharged
infrared LEDs IR LEDs for tracking
power button activate or deactivate the Fin-
gertracking hand target
configuration dial select the LED brightness and
the number of fingers
letters (L and R) indicate whether the hand target
is dedicated for the left or right
hand
infrared sync receiver receiver for the coded IR flash
(i.e. synchronization signal)
Table 6.5: Description of the hand target (Standard Fingertracking)
85
