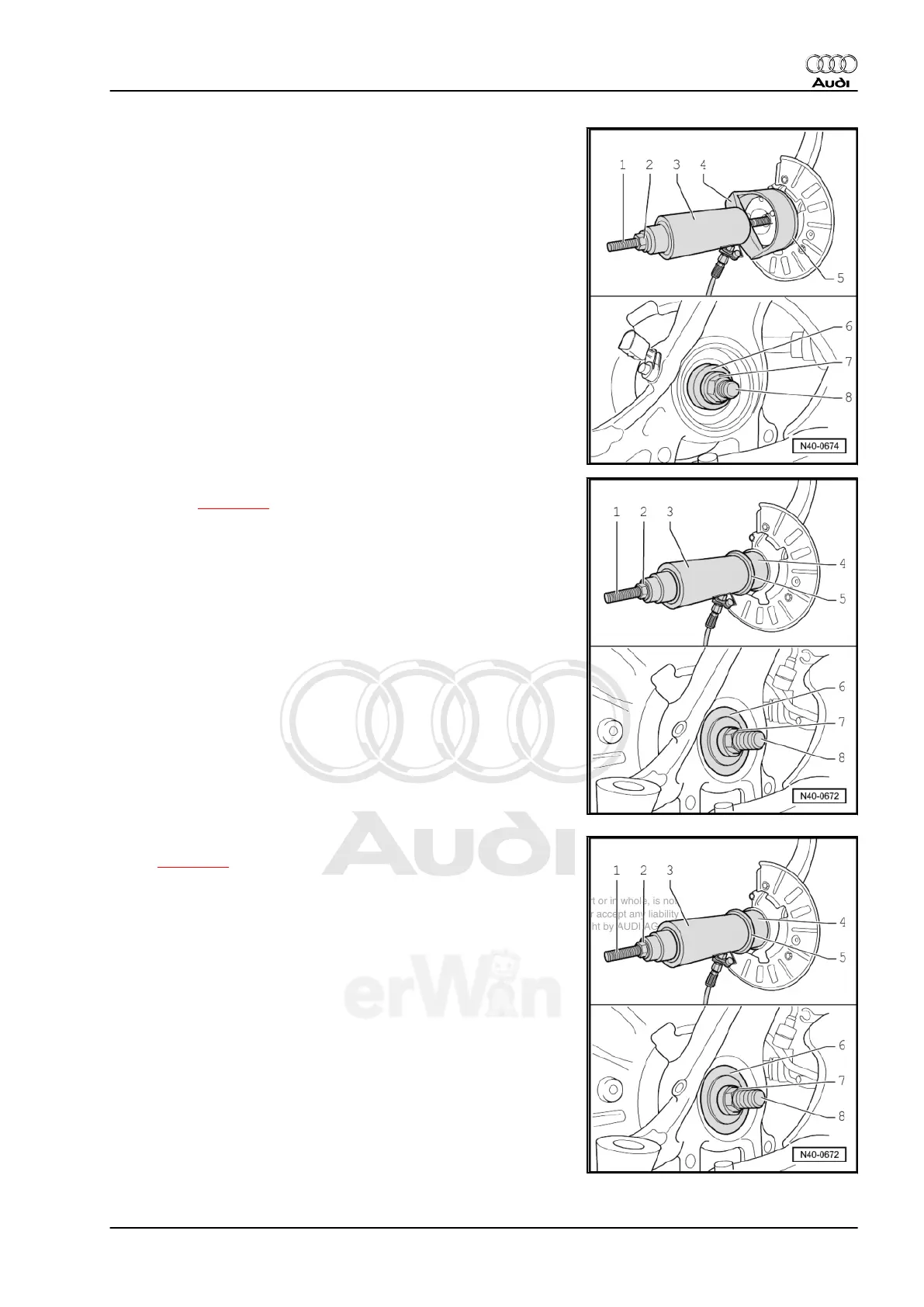

– Mount tools as depicted in illustration.
1 - Threaded Rod M20 - T10205/8-1-
2 - M20 Nut - T10205/8-2-
3 - Hydraulic Press - VAS6178-
4 - Bell - T10205/2-
5 - Bearing Installer - Wheel Hub/Bearing Kit - 1 - T10205/1-
6 - Thrust Piece - T10205/3-
7 - M20 Nut - T10205/8-2-
8 - Threaded Rod M20 - T10205/8-1-
– Pull out wheel hub, hold tool securely.
Removing the Wheel Bearing, Versions with Dimension -x- = 83
mm, refer to ⇒ page 83
– Remove securing ring.
– Mount tools as depicted in illustration.
1 - Threaded Rod M20 - T10205/8-1-
2 - M20 Nut - T10205/8-2-
3 - Hydraulic Press - VAS6178-
4 - Mounting tube - T10205/5-
5 - Mount - T10205/4-
6 - Thrust plate - T10205/6- , the collar on the thrust plate must
face the final drive.
7 - M20 Nut - T10205/8-2-
8 - Threaded Rod M20 - T10205/8-1-
– Pull out wheel bearing while holding device securely.
Removing the Wheel Bearing, Versions with Dimension -x- =
75mm ⇒ page 83
– Remove securing ring.
– Mount tools as depicted in illustration.
1 - Threaded Rod M20 - T10205/8-1-
2 - M20 Nut - T10205/8-2-
3 - Hydraulic Press - VAS6178-
4 - Mounting tube - T10205/5-
5 - Mount - T10205/4-
6 - Thrust Plate - T10064/4- , the collar must face the final drive.
7 - M20 Nut - T10205/8-2- (the collar on the nut must face the
final drive).
8 - Threaded Rod M20 - T10205/8-1-
– Pull out wheel bearing while holding device securely.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
5. Lower Control Arm, Wheel Bearing Housing, Wheel Hub and Wheel Bearing 95
