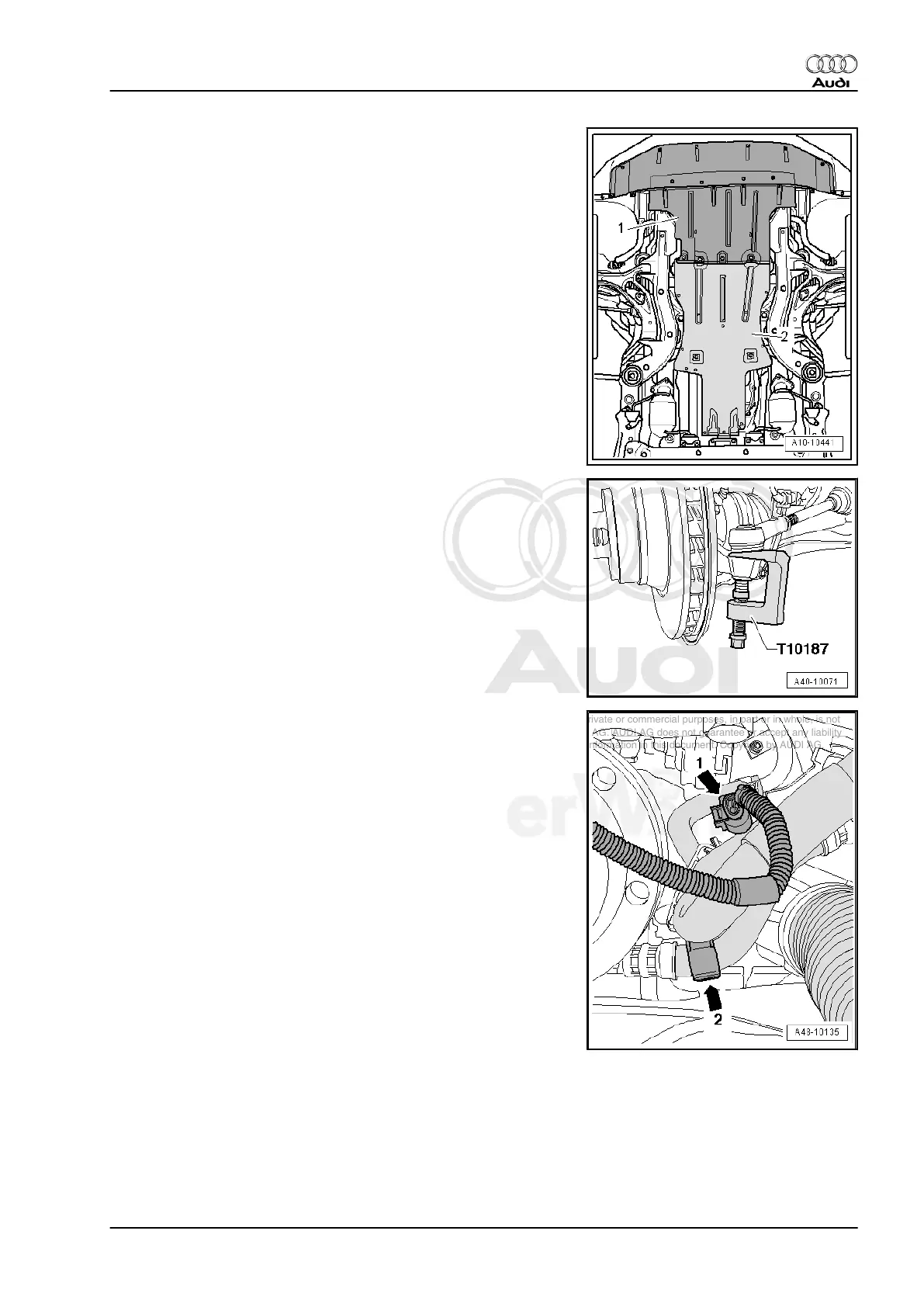

– Remove front noise insulation -1- and -2-.
– Remove the wheels.
– Rotate steering gear toward left until stop.
– Remove nut and press tie rod off of wheel bearing housing.
– Remove connector -arrow 1- from Servotronic Solenoid Valve
- N119- .
– Remove coolant hose bracket -arrow 2- from return line. Place
coolant hoses on front final drive.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
3. Steering Gear 295
