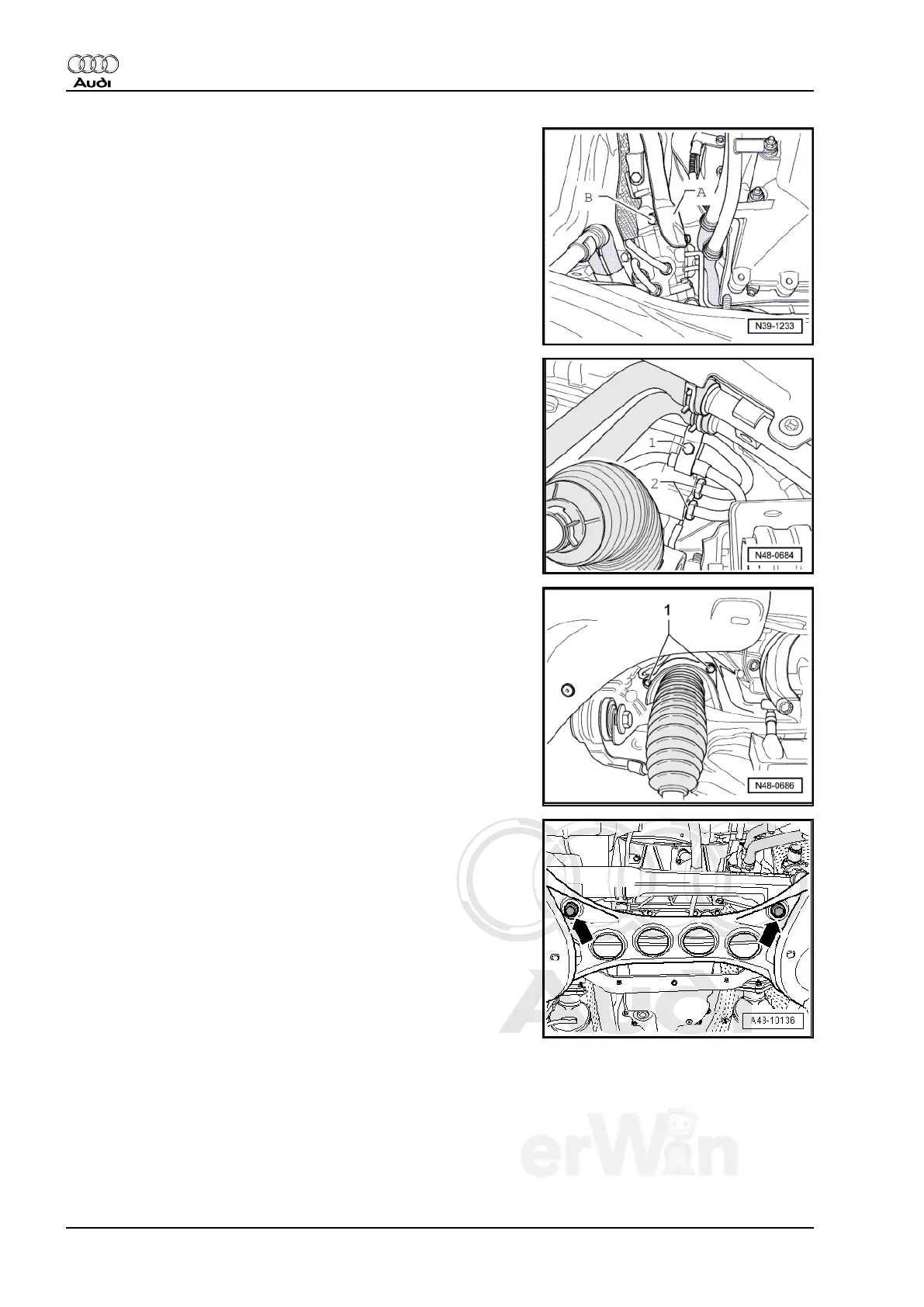

– Remove the heat shield -A- from steering gear (2 bolts).
– Remove bolt -B- for universal joint at steering gear and remove
universal joint from steering gear.
– Remove bracket for hydraulic lines -1-.
– Remove pressure line and return line -2- from steering gear.
– Remove the heat shield -1-.
– Remove screws -arrows- from steering gear.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
296 Rep. Gr.48 - Steering
