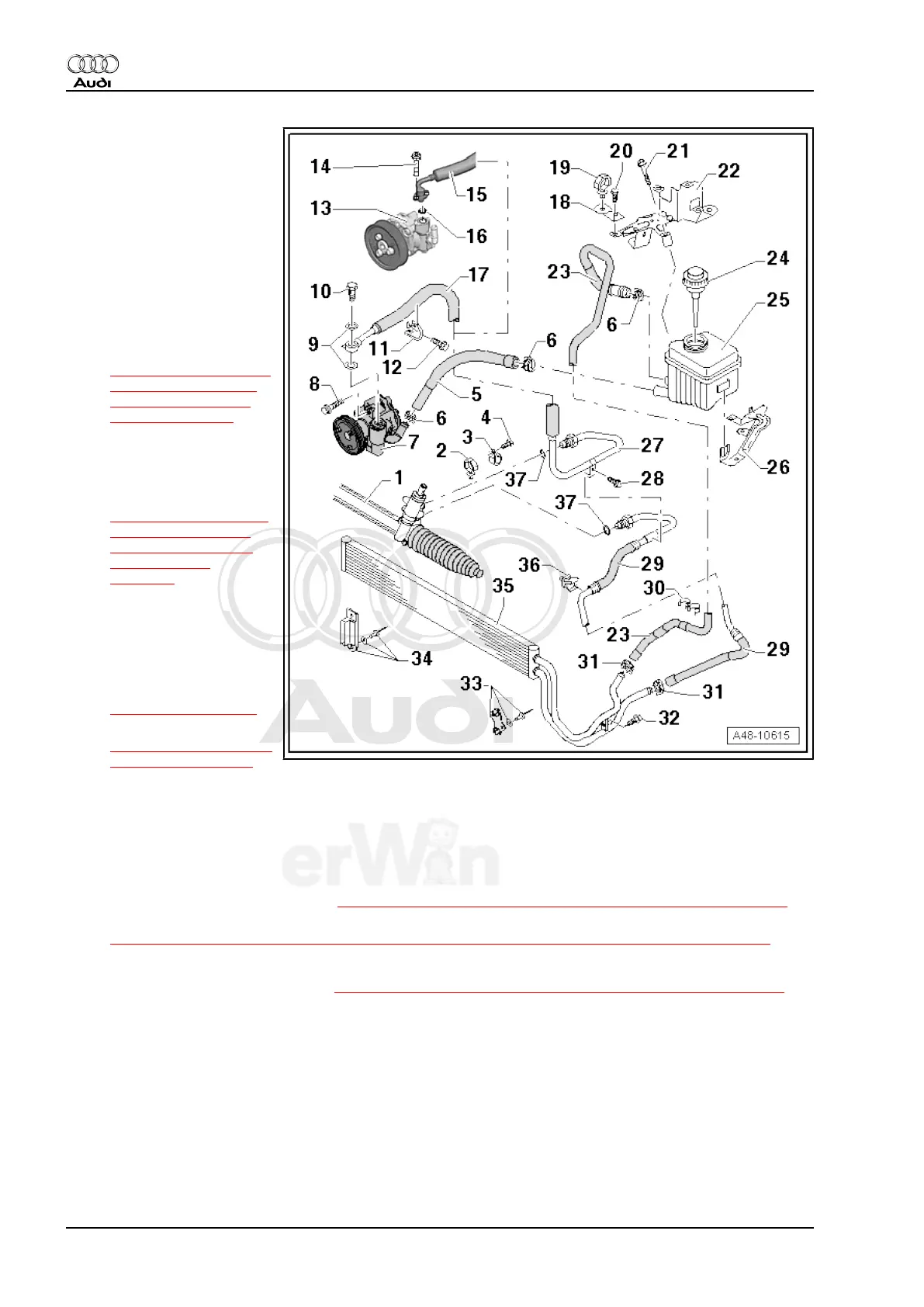

1 - Power-Assisted Steering
Gear
❑ Allocation, refer to the
Parts Catalog.
2 - Wiring Bracket
3 - Clamp
4 - Bolt
❑ 9 Nm
5 - Intake Hose
❑ Note location on reser‐
voir, refer to
⇒ Fig. ““Location of Ho‐
ses on Reservoir and
Reservoir Bracket to
Body”“ , page 317 .
❑ Installed position on the
power steering pump on
a V6 TDI engine, gener‐
ation I without SCR, re‐
fer to
⇒ Fig. ““Installation Po‐
sition of Intake Hose
and Pressure Line at
Vane Pump”“ ,
page 328 .
❑ Installed position on the
power steering pump on
a V6 TDI engine, gener‐
ation I with SCR and on
a V6 TDI engine, gener‐
ation, , refer to
-Item 12-
⇒ Item 12 (page 329) .
❑ Attach to body, refer to
⇒ “5.2 Lines and Hoses
Overview”, page 316 .
6 - Spring Clamp
❑ Remove and install with Hose Clip Pliers - VAS5024A- .
7 - Power Steering Pump
❑ For the correct allocation, refer to the Parts Catalog.
❑ Fill with Hydraulic Oil before installing.
❑ Removing and Installing, refer to ⇒ “5.5 Power Steering Pump, Removing and Installing”, page 326 .
❑ Check the delivery pressure, V6 TDI, generation I without SCR, refer to
⇒ “5.3 Power Steering Pump Delivery Pressure, Generation I without SCR, Checking”, page 318 .
8 - Bolt
❑ Tightening specification, refer to ⇒ “5.5 Power Steering Pump, Removing and Installing”, page 326 .
9 - Seal
❑ Always replace.
10 - Banjo Bolt
❑ 35 Nm
11 - Bracket
12 - Bolt
❑ M6: 9 Nm
❑ M8: 22 Nm
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
314 Rep. Gr.48 - Steering
