Baumuller b maXX 5000 User Manual

Installation
Instruction handbook b maXX 5000
Document No.: 5.09021.16
183
of 328
7
Add-on module IEE with external supply
Incremental encoder emulation, 2 channels, BM53XX-XXXX-X
X01
Set values for incremental encoder emulation can be evaluated from following sources:
m Position a
ctual values encoder 1 or encoder 2
m Position set va
lues (e. g. internal from positioning)
m Fieldbus
set value (external set via bus)
The generated signal can be used either for synchroniz
ation of the following axis or for
position evaluation of the axis by the master control.
Power supply (external supply) 5 V ± 5 % (without load)
Current (external supply) Max. 100 mA (without load)
Signal level: output high voltage at I
0H
= -20 mA 2.5 V
Signal level: output high voltage at I
0L
= +20 mA 0.5 V
Output frequency track signals Max. 500 kHz
Switching time: rise time < 50 ns
Switching time: fall time < 50 ns
Delay time It
d
I = 1 b 50 ns
Power input 0.525 W
Current output driver Max. 15 mA

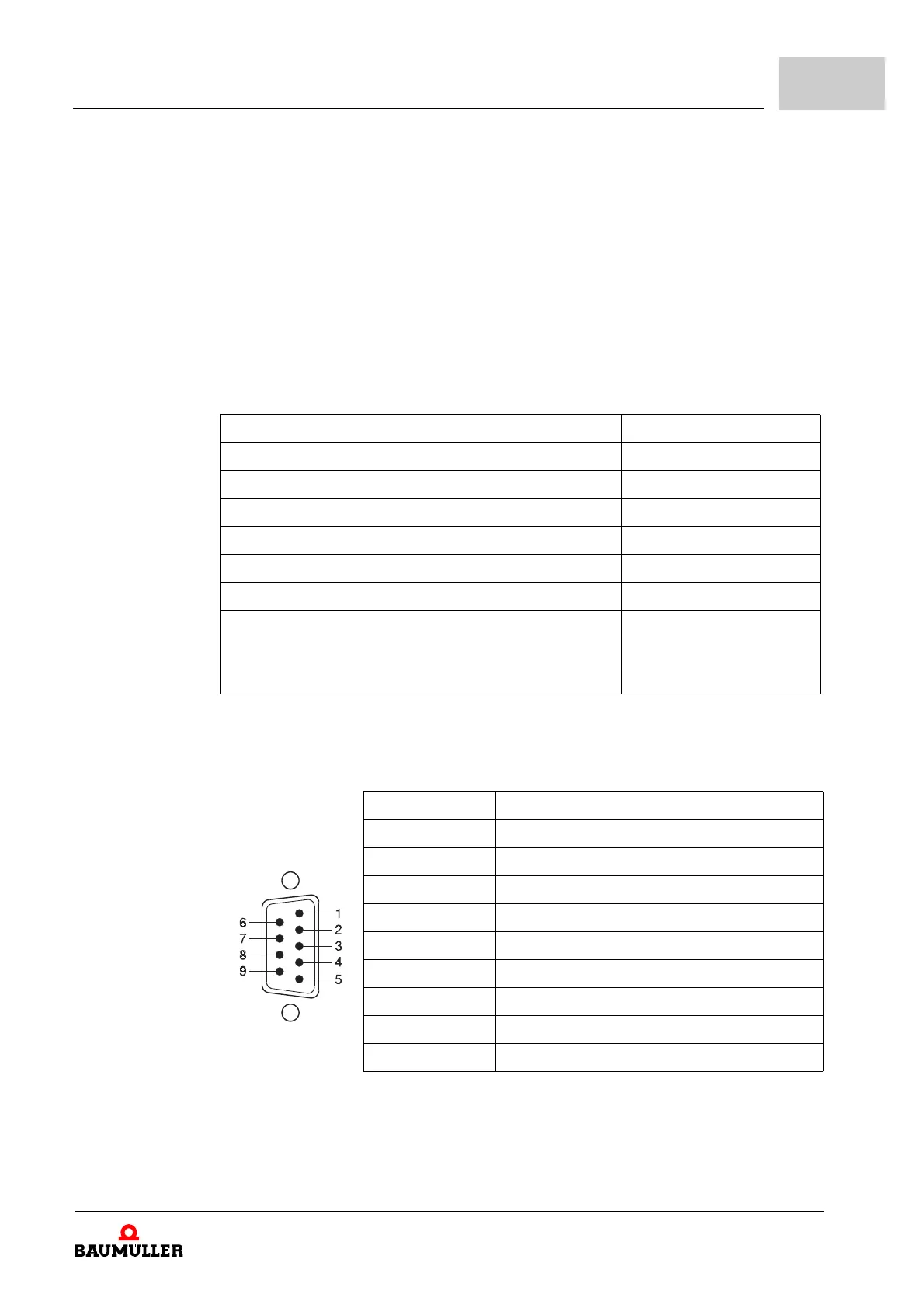

Pin assignment D-sub on front side X1 and X2 (
male) of incremental encoder emulation:
Pin assignment Pin No. IEE assignment
D-sub male connector
9-pin
1 Ground incremental encoder emulation
2 External power supply +5 V IEE
3 Incremental encoder emulation track 0
4 Incremental encoder emulation track -0
5 Incremental encoder emulation track B
6 Not assigned
7 Incremental encoder emulation track -A
8 Incremental encoder emulation track A
9 Incremental encoder emulation track -B
Connection cable see ZConn
ection cable add-on modules– as from page 259.
Further information see manual a
dd-on modules IEE/SIE, 5.13030.
