Baumuller b maXX 5000 User Manual

Installation
Instruction handbook b maXX 5000
Document No.: 5.09021.16
197
of 328
7
Sine incremental
encoder with com-
mutation signals
Encoders with high-resolution incremental signals (sine and cosine signals, e.g. 2048 sig-
nal periods per revolution) and in addition commutation signals (sine and cosine track
with
1 signal period per revolution), available firmware 1.15 and higher.
Voltage supply 5 V
DC
controlled
Signal level Incremental encoder signals (A and B) ~1 Vss
Co
mmutation signals (C and D) ~1 Vss
Current input Max. 250 mA

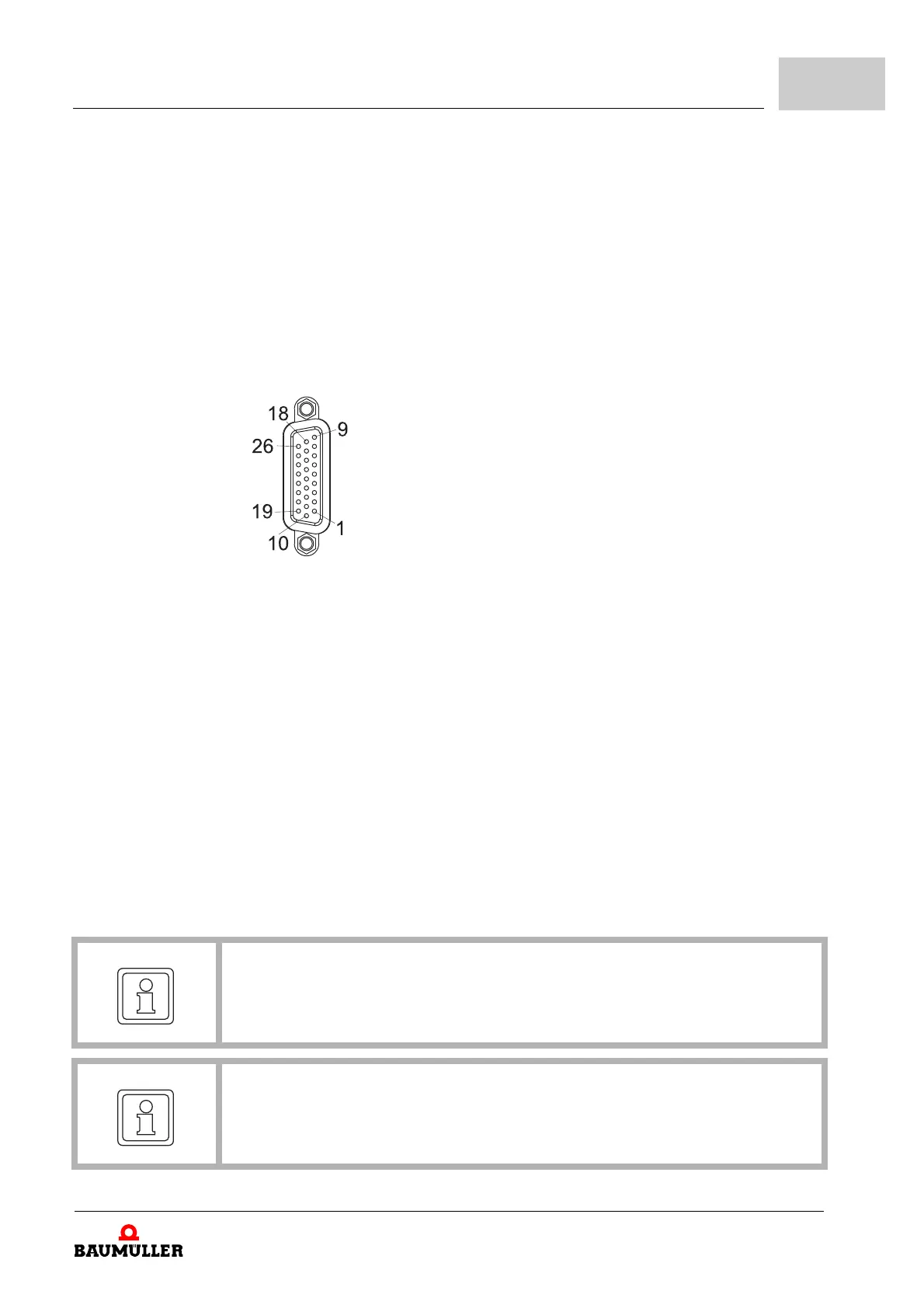

D-sub-connector
26-pin
1 GND encoder supply
2 +5 V encoder supply
3 re
served *
4 A +
5 A -
6 B +
7 B -
8 0
+ (zero pulse)
9 0 - (ze
ro pulse)
10 re
served *
11 Sense GND
12 Sense V
CC
13 reserved *
14 re
served *
15 C + (comm
utation track)
16 C
- (commutation track)
17 T
emperature +
18 T
emperature -
19 re
served *
20 re
served *
21 re
served *
22 re
served *
21 re
served *
22 re
served *
23 D + (comm
utation track)
24 D
- (commutation track)
25 re
served *
26 re
served *
* do not occupy
NOTE!
There is no continuing monitoring of the commutation signals (C+, C-, D+, D-) and of
the reference marks (R+, R-).
NOTE!
The connection cable is not available as a pre-assembled cable by Baumüller. The
user
has to provide a suitable cable.
