Description of the Software Modules and Parameters
Parameter manual b maXX BM5800
Document No.: 5.16029.03
333
of 814
3
Pulses are inhibited (drive is without torque)
If the drive is suddenly without torque due to a pulse inhibit (response to QUICK
STOP/SHUT-DOWN/INHIBIT/drive error), the brake could be applied immediately or
when the speed threshold (see above) is reached. With a suspended load, it is recom
-
mended that the brake be allowed to be applied immediately in this case (Z134.3–
Bit 2 = 0) as the drive could be accelerated by the externally acting torque, with the result
that the speed threshold is not reached and the brake is not applied.

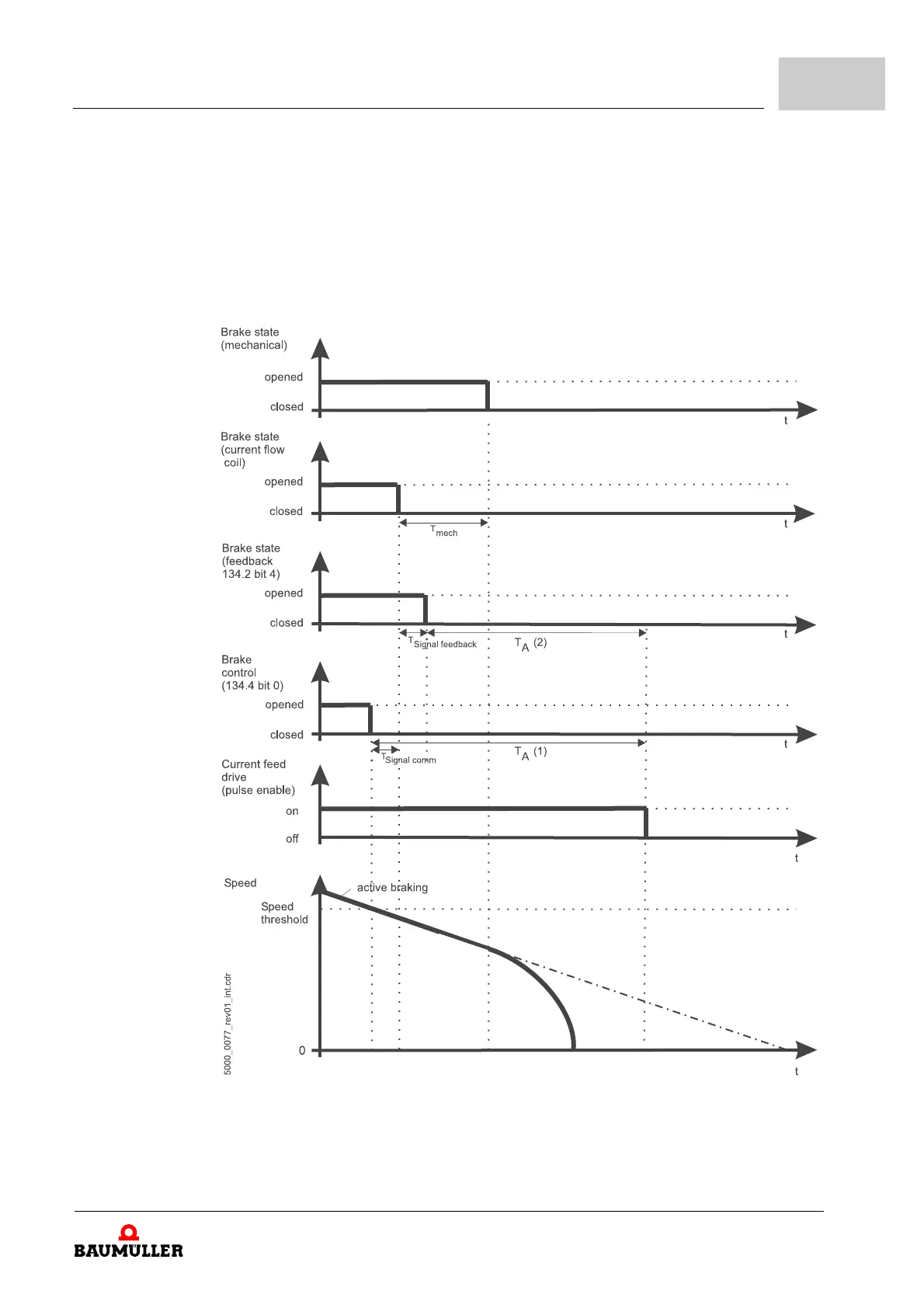

Figure 84: Braking procedure in the "Automatic" brake control mode
