3.7.6 Flux controller
The output of the field weakening controller is the set value of the flux controller at asyn-
chronous machines. The flux controller is a simple PI-controller with proportional gain Kp,
integral time Tn and limitation. The Isd-set value is at the output of the flux controller.
The actual flux value is calculated from an asynchronous machine value. If the Kp of the
flux controller is set to 0, the inverse of the Imr-flux-characteristic is set for the Isd-set val
-
ue.
3.7.6.1 ProDrive Flux controller

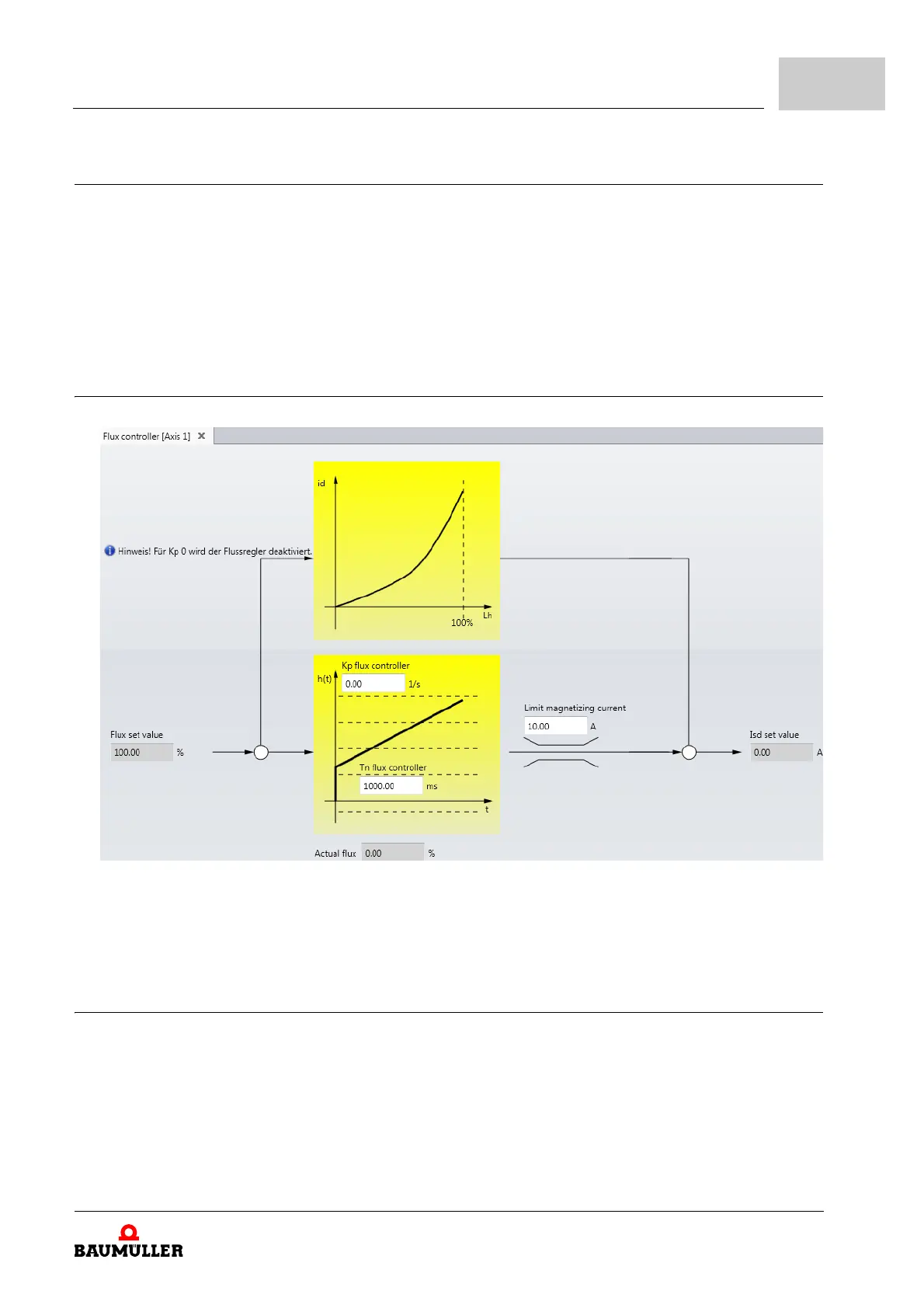

Figure 131: ProDrive Flux controller
3.7.6.2 Parameter Overview of the Flux Controller
Functional blocks: FbAsynchronmaschine [146]
