Performing the commissioning (using Axis 1 as an example)
Parameter manual b maXX BM5800
Document No.: 5.16029.03 Baumüller Nürnberg GmbH
42
of 814
2.6
The "Drive Manager" window will also appear

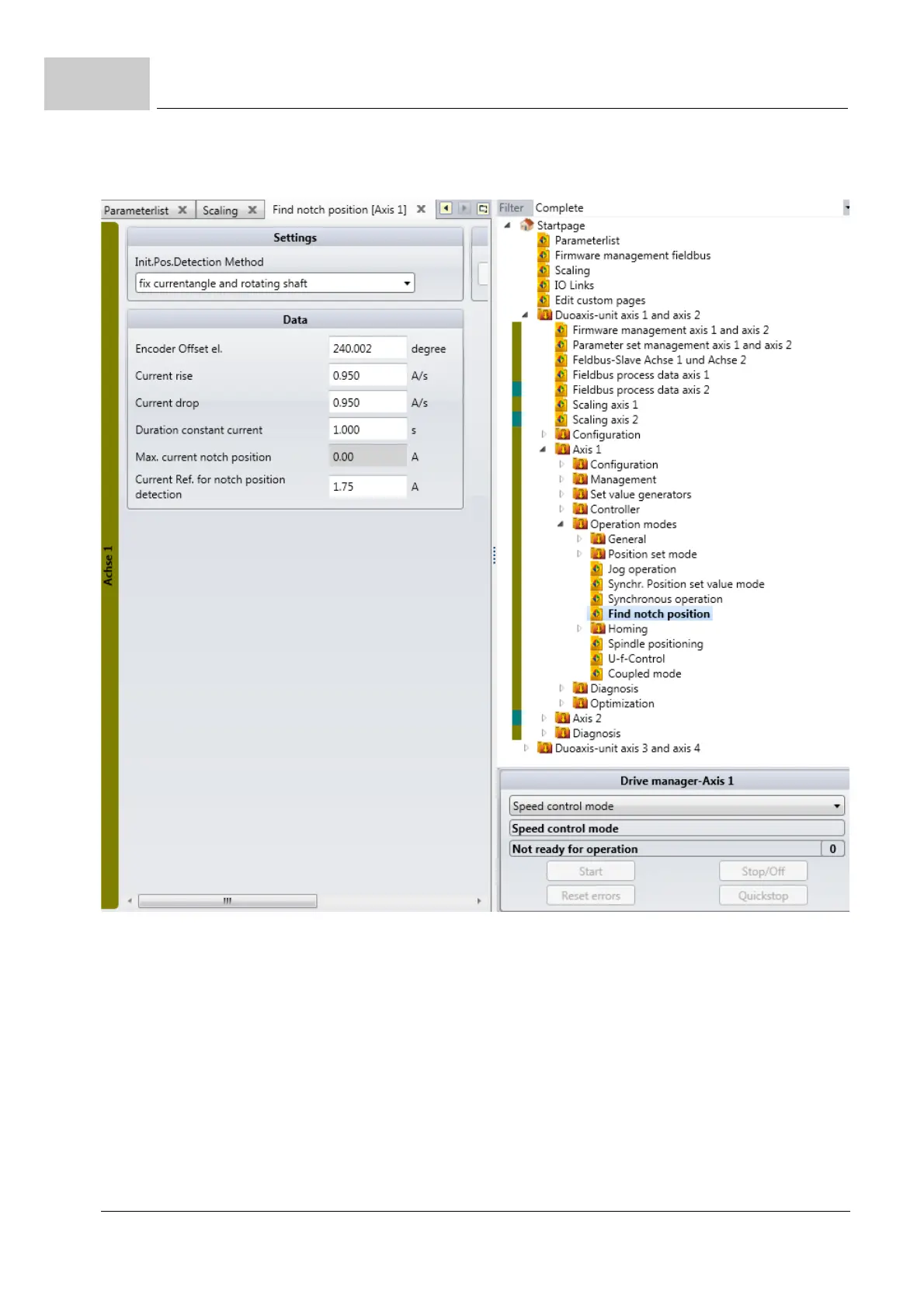

Figure 26: ProDrive: Find Notch Position, Drive Manager
31 For the method, select "fix currentangle and rotating shaft".
32 Select "Find notch position" in the Drive Manager-Axis 1 window.
