BERTHOLD TECHNOLOGIES Uni-Probe LB 490 - Page 152

38477BA2B
2 – 152 25.5.09
2 Installation Volume 2

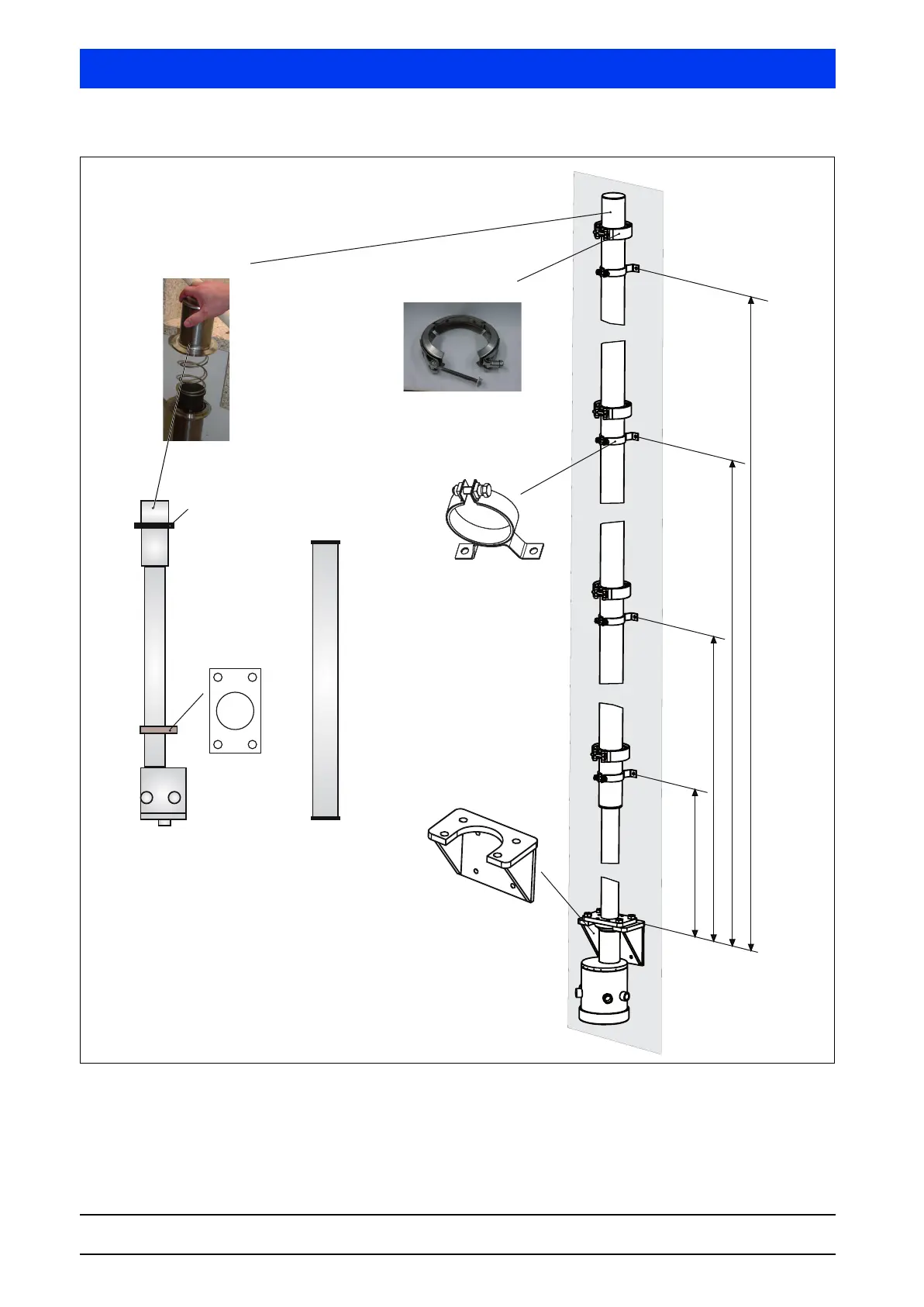

Figure 2-6 Structure of a Tower-Sens detector
 Take off the plastic protection cap from the extension module
and then from the basic module. However, leave the protective
~870
(~1870)
~2775
(~3775)
~4795
(~5795)
~6815
(~7815)
Mounting bracket
End cap
Connection clamp
Fixing clamp
Basic module
Extension module
Connection clamp
Mounting plate
All dimensions in mm for
1m basic module
(2m basic module)
Basic module Extension module Extension module Extension module
