198 | Chapter 4: Maintenance
restoring the tubing: for this procedure the tubes are numbered as shown
below, from left to right when facing the center holder.

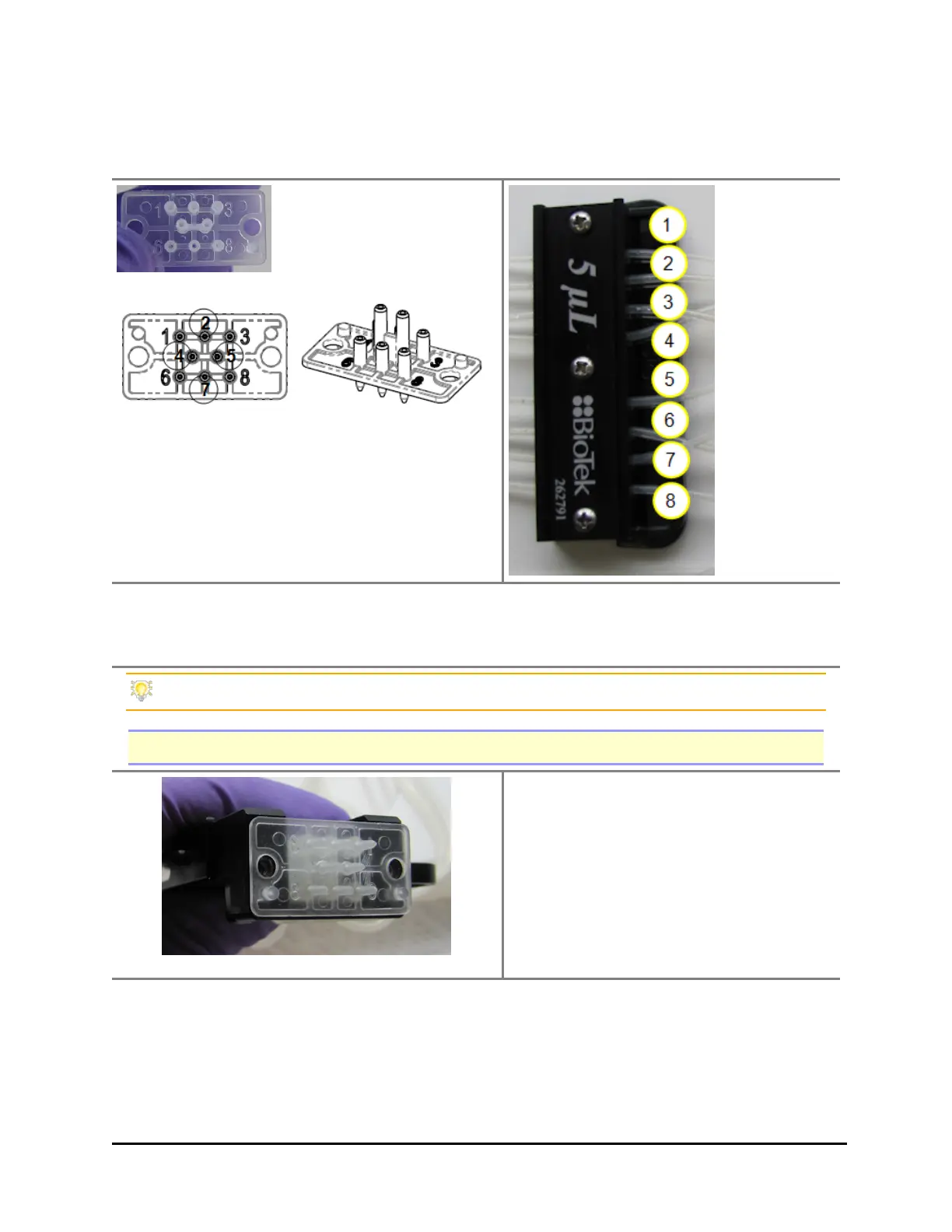

molded tips with tube numbering
l Push the tubes back onto posts on the molded tip head taking care to place
the correctly numbered tube onto its numbered post. Try to make the tubes
flush with the tip head.
Use a little isopropyl alcohol on the tubing to help it slide onto the post.
Note: Components fit back together in only one way!
l Attach the tip head (with tubing) to
the cassette head by aligning the pins
on the tip head with their sockets on
the cassette.
l Reattach the chute, aligning it on the
same pins and securing it with its two
screws. Tighten each screw half way,
rotating between the two before
tightening them all the way.
